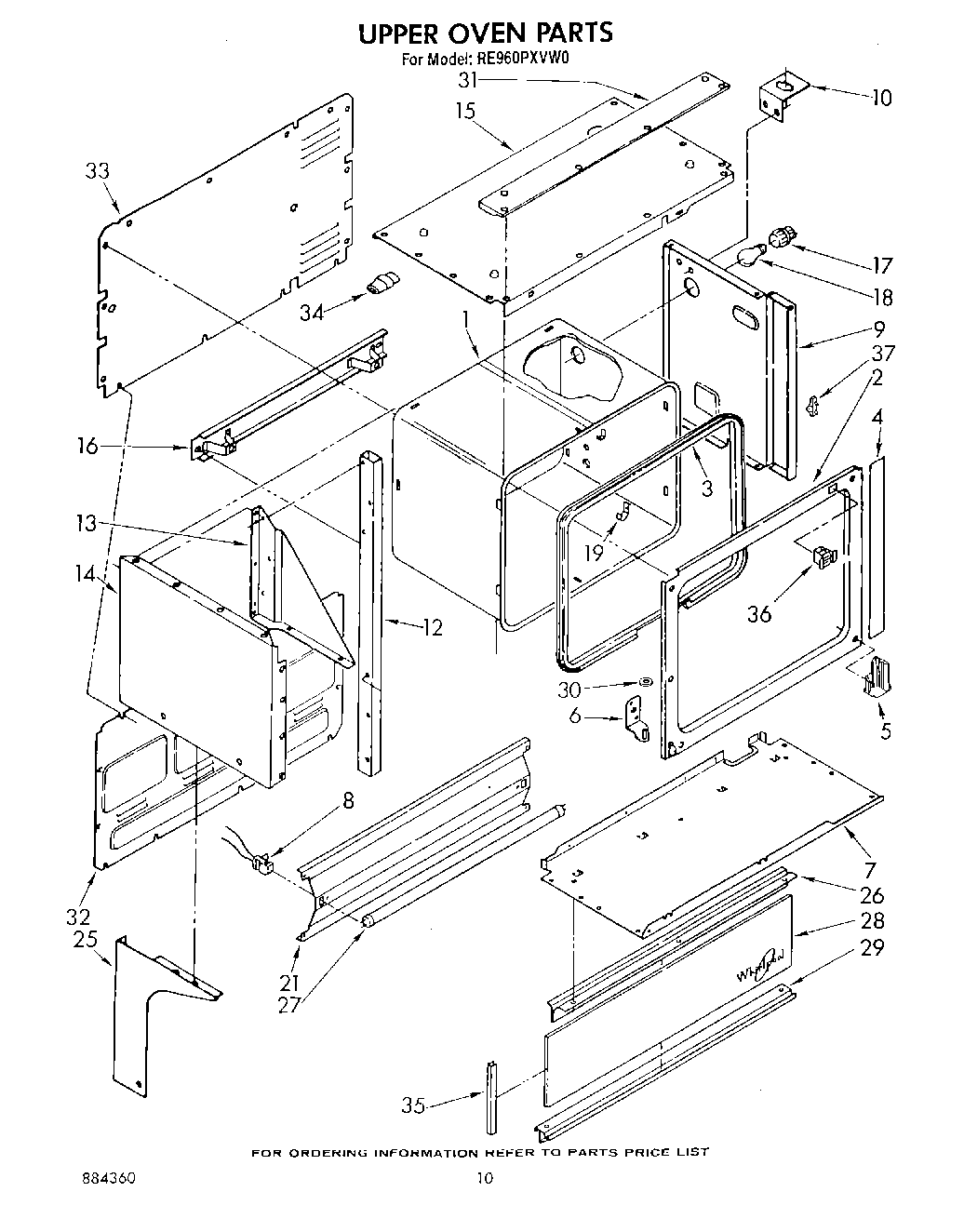

RE960PXVN0 06 – UPPER OVEN

RE960PXVN0 06 – UPPER OVEN

Written by

in

RE960PXVN0 06 – UPPER OVEN

Products

PositionProduct
1Oven (Continuous Clean)
2Frame, Front
3seal, door
4shield, upper oven
5latch plate (upper oven)
6bracket, hinge
6screw, 10-24 x 3/8 (2)
7Channel, Rubber (4)
7Bottom Panel
8Socket Assembly L.H.
8Socket Assembly R.H.
9baffle
10Bracket, Receptacle
12Support, Tubing R.H.
12Support, Tubing L.H.
13Gusset, L.H.
13Gusset, R.H.
14Panel, Side L.H. (White)
14Panel, Side L.H. (Almond)
14panel, side l.h. (almond panel, side r.h.)
14Panel, Side L.H. (White)
15Panel, Top (Almond)
15Panel, Top (White)
15panel, top (screw, 10a x 3/8 (3))
16support, oven
16Nut, Retainer (2)
16bolt (2)
17Socket, Oven Light
17Screw (10-12 x .875)
18RANGE ONLY 40W 120V APPL BULB
1998005642 Whirlpool Clip
21Panel, Backguard
25WPL 330203
25WPL 330200
25WPL 330197
25WPL 330194
26WPL 313320
27WP95292 Whirlpool Fluorescent Light Bulb
28WPL 313322
29WPL 313321
29WP488627 Whirlpool Refrigerator Screw
30WPL 306615
31WPL 327916
32WPL 308112
33WPL 309507
33SCREW
34WP75614 Whirlpool Connector
35WPL 313319
36WPL 313793
37WP965173 Whirlpool Dishwasher Screw
37WPL 3147621
