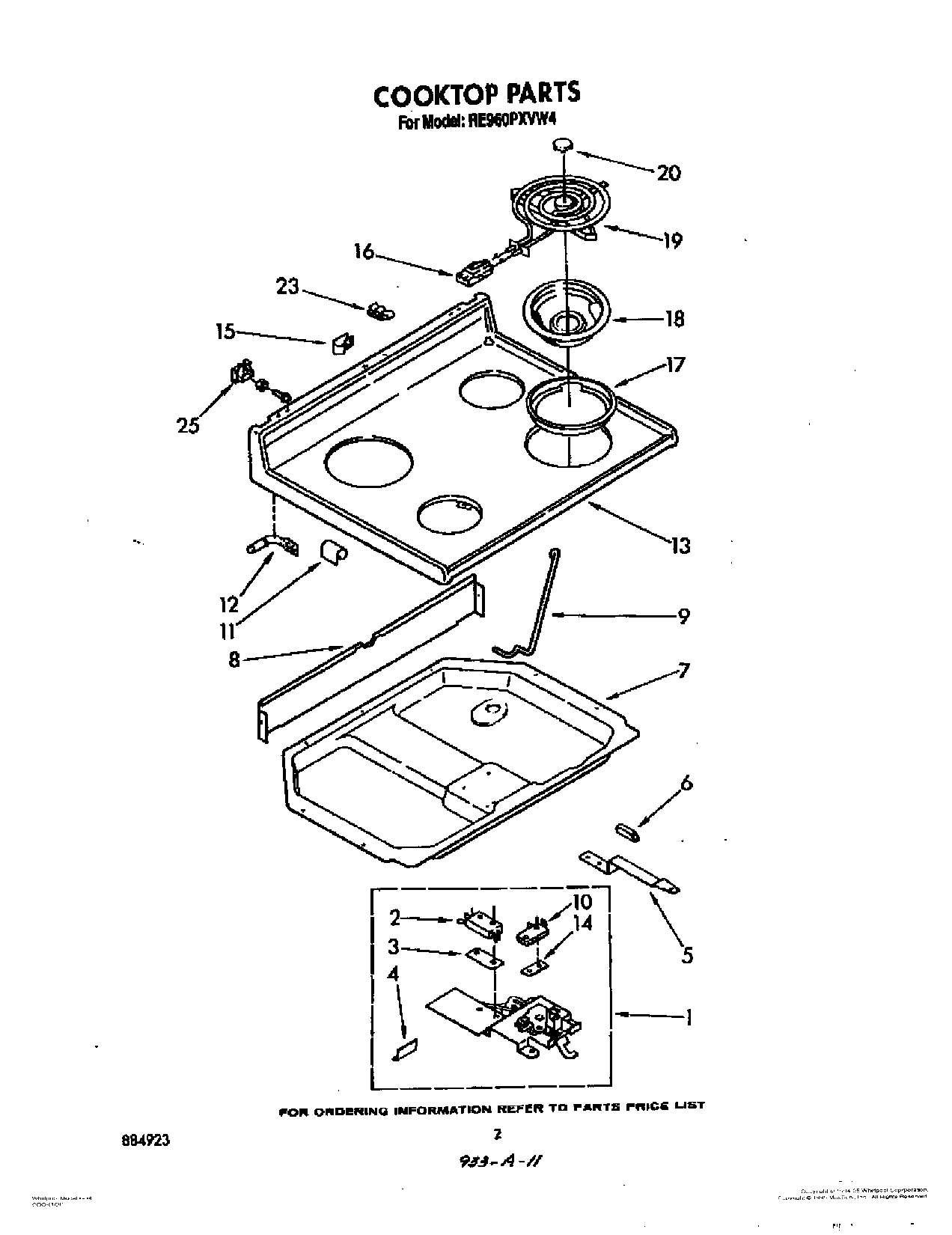

RE960PXVN4 02 – COOKTOP

RE960PXVN4 02 – COOKTOP

Written by

in

RE960PXVN4 02 – COOKTOP

Products

PositionProduct
WP660533 Whirlpool Oven 8" Surface Element
1Latch Assembly
2Screw
2Safety Switch
3Insulator, Switch
4WP313808 Whirlpool Screw
4Shield, Latch
4Screw
5Screw
5Handle, Latch
6Knob, Latch
6WP486579 Whirlpool Air Conditioner Screw
7Box, Burner
7WP3390631 Whirlpool Screw
8Shield, Wiring
9Rod, Cooktop
10Switch, Lock
11Bracket, Cooktop (2)
12Pin, Cooktop (2)
12SCREW
13Cooktop (White)
13Cooktop (Almond)
13WP308685 Whirlpool Microwave Screw
14Screw (2)
14WPL 3147864
15WP308605 Whirlpool Refrigerator Clamp
15WP965173 Whirlpool Dishwasher Screw
16WP4332752 Whirlpool Clip
17W10854470 Whirlpool Trim Ring
17W10858781 Whirlpool Trim Ring
18W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
18Reflector Pan (6“ (2))
19WP660532 Whirlpool Oven Surface Element
20Medallion (4)
23Clip, Tube
25WP487887 Whirlpool Refrigerator Screw
25814103 Whirlpool Clip
25Nut (4)
