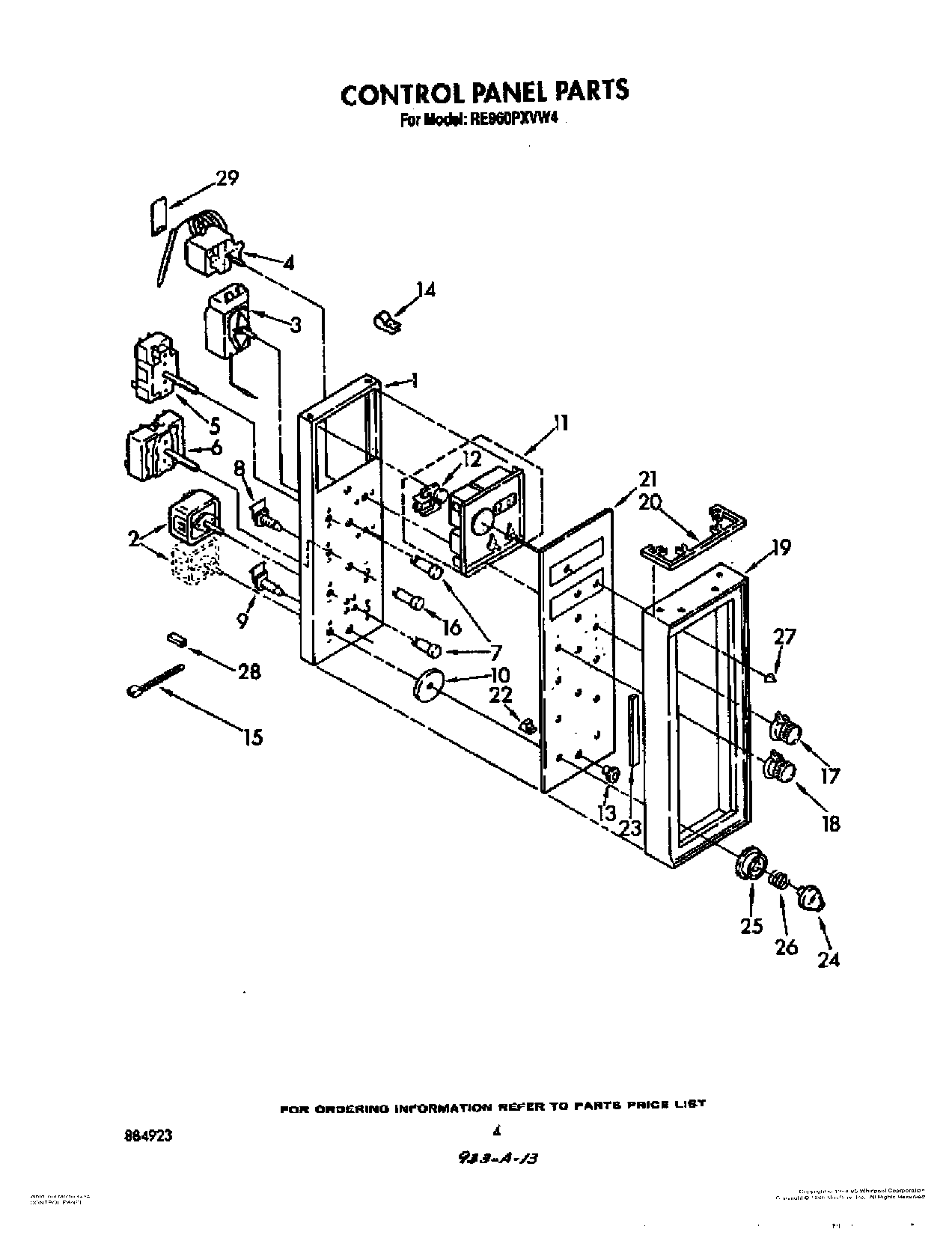

RE960PXVN4 03 – CONTROL PANELadmin2025-04-26T08:46:09+00:00RE960PXVN4 03 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Panel, Control |
| 2 | switch, infinite (4) |
| 2 | Screw, 8-32 x 3/16 (2) |
| 3 | Thermostat, Oven (Pyro) |
| 4 | Thermostat (Upper Oven) |
| 5 | Switch, Selector (4 Position) |
| 6 | WP965173 Whirlpool Dishwasher Screw |
| 6 | Switch, Selector (5 Position) |
| 7 | Light, Indicator 250V (6) |
| 8 | Switch, Fluorescent Light |
| 9 | Switch, Oven Light |
| 9 | Lockwasher |
| 10 | Skirt, Knob (4) |
| 11 | Timer, Digital (Includes Illus. 12) |
| 11 | WP313808 Whirlpool Screw |
| 11 | WP488627 Whirlpool Refrigerator Screw |
| 12 | Motor, Timer |
| 13 | Bezel Switch (1) |
| 14 | Strain Relief |
| 14 | WP308685 Whirlpool Microwave Screw |
| 14 | WP3390631 Whirlpool Screw |
| 15 | WPW10339879 Whirlpool Wire Tie |
| 16 | Indicator Light, Lock (1) |
| 17 | Knob, Thermostat |
| 18 | Knob, Selector |
| 18 | Screw |
| 18 | WP688805 Whirlpool Spring Clip |
| 19 | Screw, 10A x 2 |
| 19 | Frame, Control Panel |
| 20 | filler, control panel |
| 20 | Screw, |
| 21 | Glass, Control Panel |
| 22 | retainer, glass (10) |
| 23 | Seal, Foam |
| 24 | Knob, Control (4) |
| 25 | bezel control knob (4) |
| 26 | spring, bezel (4) |
| 27 | Spring (3) |
| 27 | WP3169181 Whirlpool Knob |
| 28 | SCREW |
| 28 | Housing, Receptical |
| 29 | Insulator (Thermostat) |
