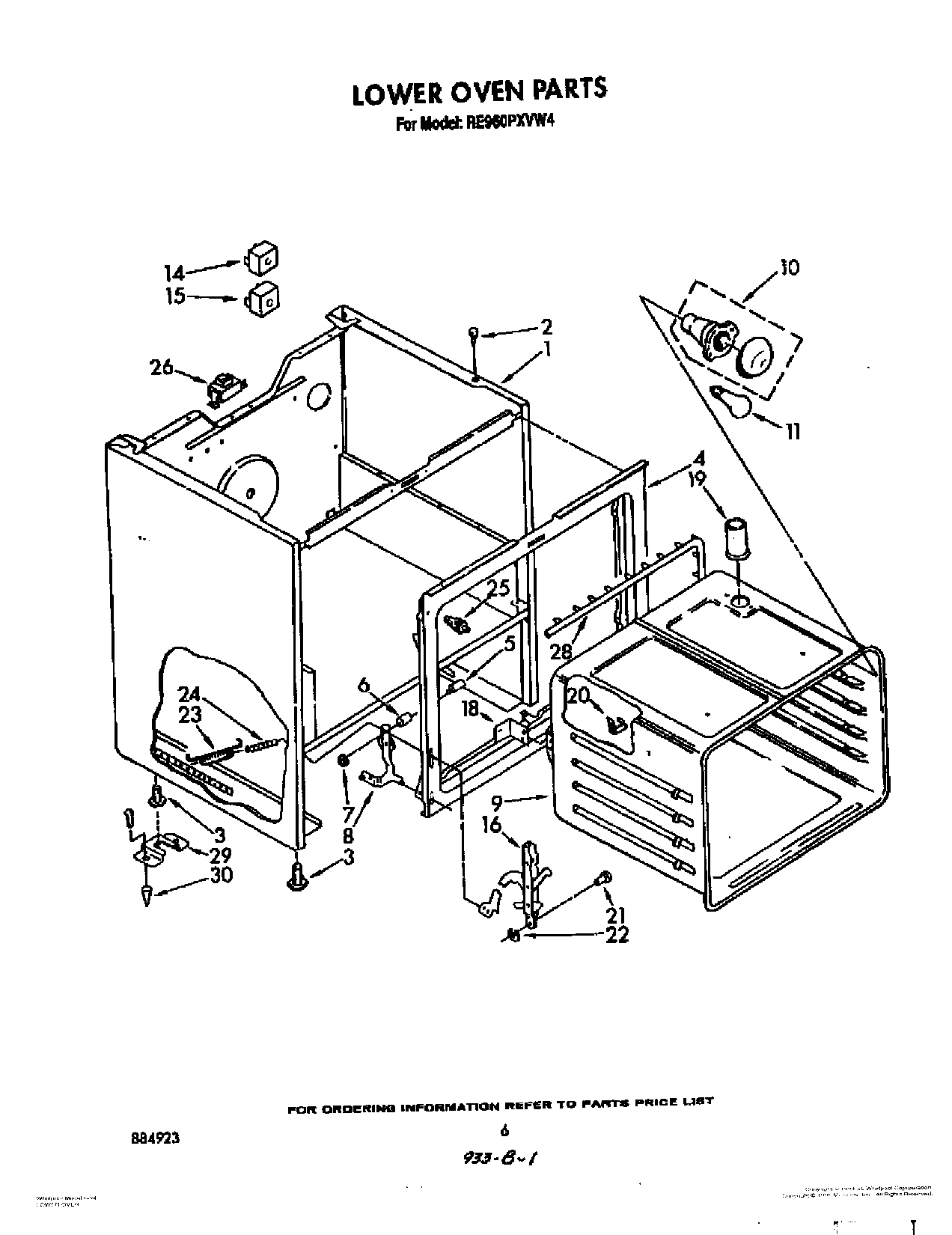

RE960PXVN4 04 – LOWER OVEN
Written by
in
RE960PXVN4 04 – LOWER OVEN
Products
Position
Product
SCREW
1
Main Chassis (White)
1
Main Chassis (Almond)
2
238614 Whirlpool Bumper Hinge
3
WPW10058460 Whirlpool Appliance Levelling Leg
4
Screw (Top)
4
Frame, Front
5
Pin, Hinge Ear (2)
6
Snubber, Door (2)
7
Pushnut (2)
8
Hinge (R.H.)
8
Hinge (L.H.)
9
Oven (30“ Pyro)
9
Screw (3)
10
W11594027 Whirlpool Range Oven Light Socket
11
RANGE ONLY 40W 120V APPL BULB
14
Sw
15
Switch, Bake
15
WPL 314215
16
Channel, Arm (2)
18
Bracket, Oven (Mounting)
19
Vent, Oven
19
Screw, 10A x 1/2 (2) (Black)
20
98005642 Whirlpool Clip
21
WP307986 Whirlpool Hinge Pin
22
Retainer Ring (2)
23
WP308126 Whirlpool Door Spring
24
WP308125 Whirlpool Microwave Range/Cooktop Anchor
25
Switch, Door
26
Ballast (Alt.)
26
Ballast
26
Ballast (Alt.)
28
Seal, Door
29
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
29
Screw
30
Anchor, Plastic
←
