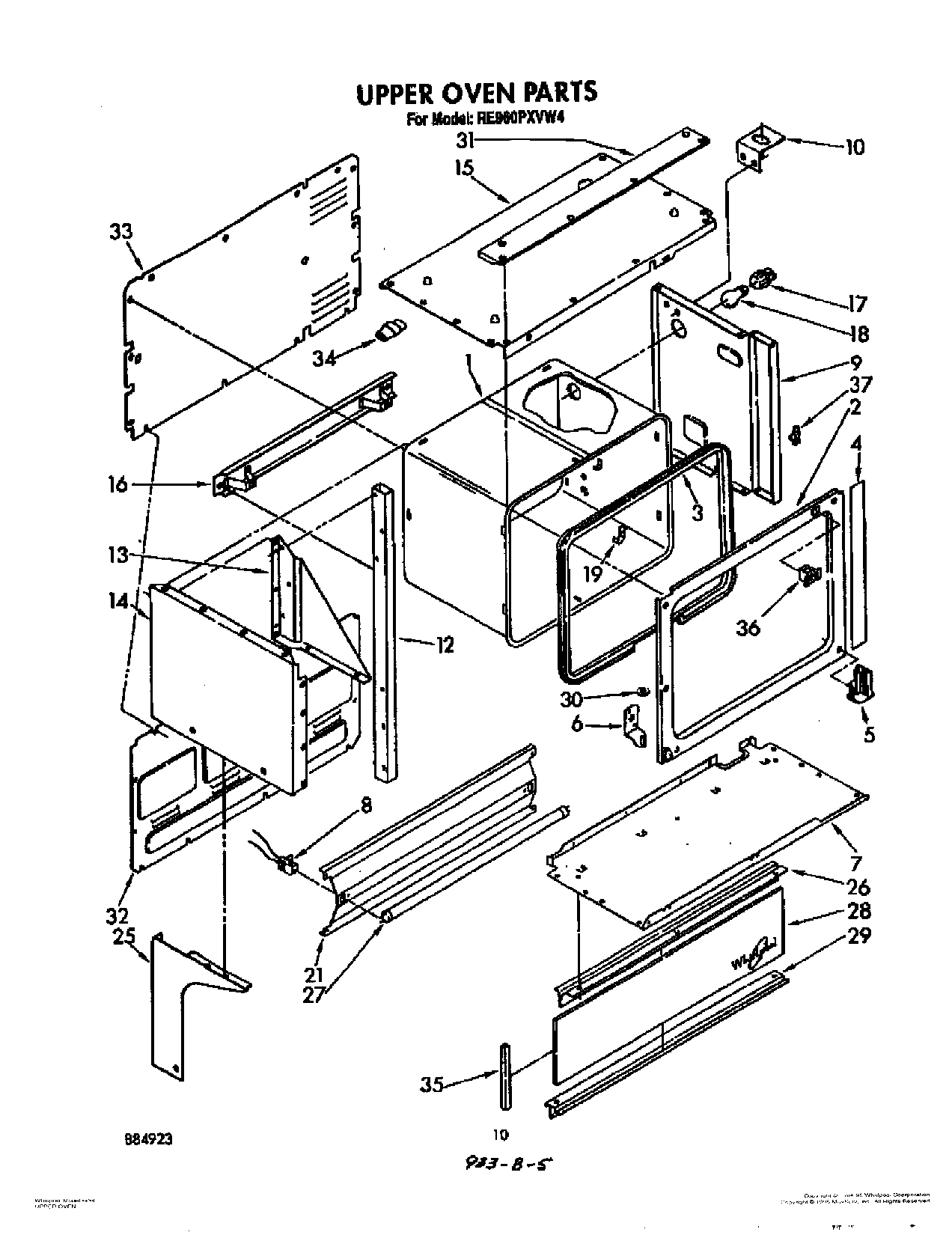

RE960PXVN4 06 – UPPER OVEN
Written by
in
RE960PXVN4 06 – UPPER OVEN
Products
Position
Product
Screw (10-12 x .875)
1
Oven (Continuous Clean)
2
Frame, Front
3
seal, door
4
shield, upper oven
5
latch plate (upper oven)
6
screw, 10-24 x 3/8 (2)
6
bracket, hinge
7
Bottom Panel
7
Channel, Rubber (4)
8
Socket Assembly L.H.
8
Socket Assembly R.H.
9
Baffle
10
Bracket, Receptacle
12
Support, Tubing R.H.
12
Support, Tubing L.H.
13
Gusset, R.H.
13
Gusset, L.H.
14
Panel, Side L.H. (White)
14
Panel, Side L.H. (Almond Panel, Side R.H.)
14
Panel, Side L.H. (White)
14
Panel, Side L.H. (Almond)
15
panel, top (screw, 10a x 3/8 (3))
15
Panel, Top (White)
15
Panel, Top (Almond)
16
bolt (2)
16
Nut, Retainer (2)
16
support, oven
17
Socket, Oven Light (Alt.)
17
Socket, Oven Light
17
Socket, Oven Light (Alt.)
18
RANGE ONLY 40W 120V APPL BULB
19
98005642 Whirlpool Clip
21
Panel, Backguard
25
WPL 330197
25
WPL 330194
25
WPL 330203
25
WPL 330200
26
WPL 313320
27
WP95292 Whirlpool Fluorescent Light Bulb
28
WPL 313322
29
WPL 313321
29
WP90767 Whirlpool Screw
29
WP488627 Whirlpool Refrigerator Screw
30
WPL 306615
31
WPL 3149613
31
WP355515 Whirlpool Screw
32
WPL 308112
33
WPL 309507
33
SCREW
34
WP75614 Whirlpool Connector
35
WPL 313319
36
WPL 3149611
36
Screw, 8-32 x 3/16 (2)
37
WP965173 Whirlpool Dishwasher Screw
37
WPL 3147623
←
