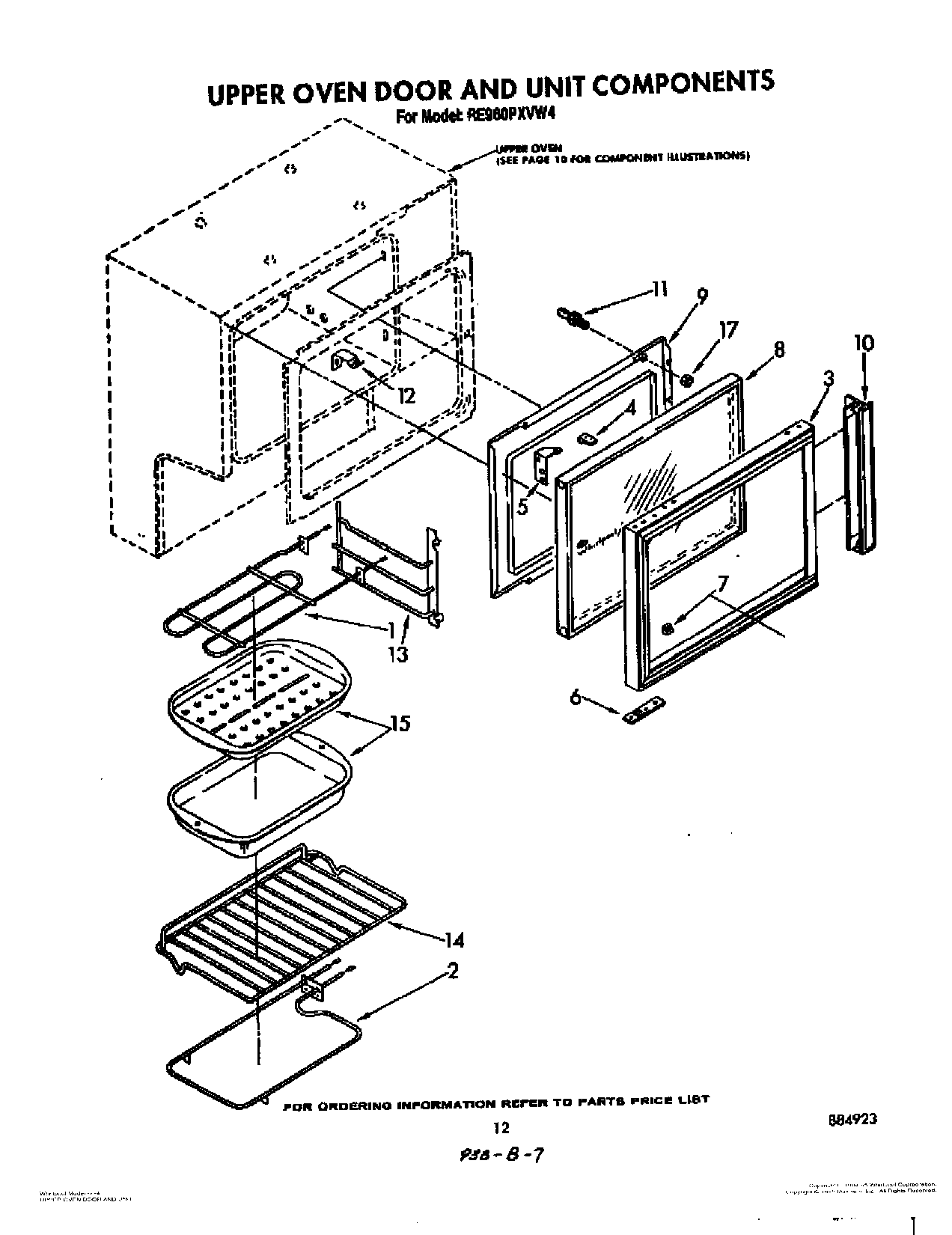

RE960PXVN4 07 – UPPER OVEN DOOR AND UNIT
Written by
in
RE960PXVN4 07 – UPPER OVEN DOOR AND UNIT
Products
Position
Product
1
unit, broil
2
Screw (2)
2
unit, bake
3
Frame, Door
4
Broil Stop
5
Hinge, Upper
5
screw, 10-24 x 3/8 (2)
6
plate hinge plated (2)
6
Washer (2)
7
Cushion, Window (9)
8
window, oven door
9
Liner, Door
10
WP488627 Whirlpool Refrigerator Screw
10
Handle
10
Screw
11
Strike, Catch
12
spring, broil stop
12
panel, top (screw, 10a x 3/8 (3))
13
support, oven rack (2)
14
rack, upper oven
15
4396923 Whirlpool Broil Pan Set Gray Porcelain
17
WP488130 Whirlpool Air Conditioner Nut
←
