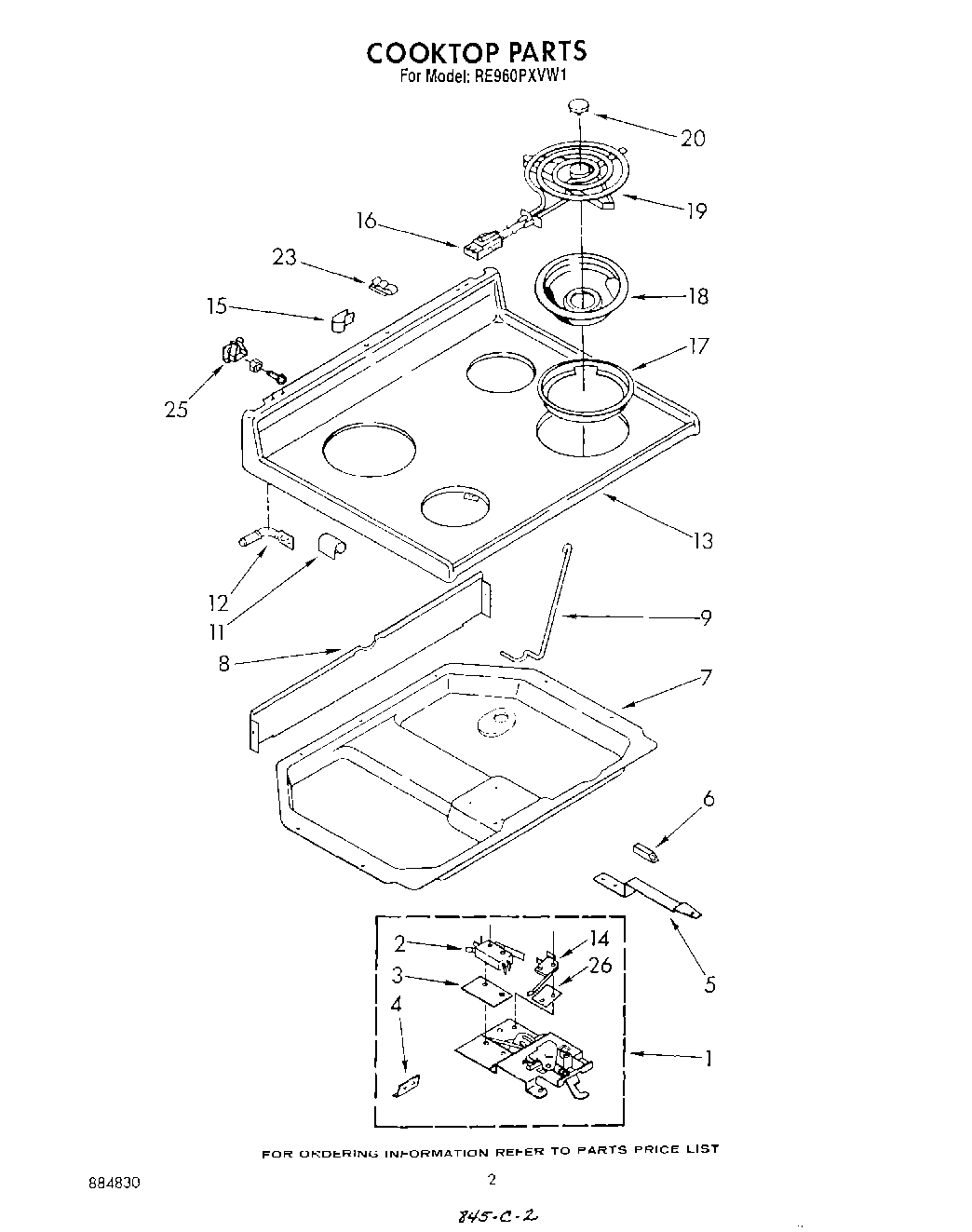

RE960PXVW1 02 – COOK TOP

Products

Position	Product
	WP660533 Whirlpool Oven 8" Surface Element
1	Latch Assembly
2	Safety Switch
2	Screw
3	Insulator, Switch
4	Screw
4	Shield, Latch
4	WP313808 Whirlpool Screw
5	Handle, Latch
5	Screw
6	WP486579 Whirlpool Air Conditioner Screw
6	Knob, Latch
7	Box, Burner
7	WP3390631 Whirlpool Screw
8	Shield, Wiring
9	Rod, Cooktop
11	Bracket, Cooktop (2)
12	Pin, Cooktop (2)
12	SCREW
13	WP308685 Whirlpool Microwave Screw
13	Cooktop (White)
13	Cooktop (Almond)
14	Switch, Lock
15	WP965173 Whirlpool Dishwasher Screw
15	WP308605 Whirlpool Refrigerator Clamp
16	WP4332752 Whirlpool Clip
17	W10854470 Whirlpool Trim Ring
17	W10858781 Whirlpool Trim Ring
18	W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
19	WP660532 Whirlpool Oven Surface Element
20	Medallion (4)
23	Clip, Tube
25	Nut (4)
25	WP487887 Whirlpool Refrigerator Screw
25	814103 Whirlpool Clip
26	WPL 3147864
