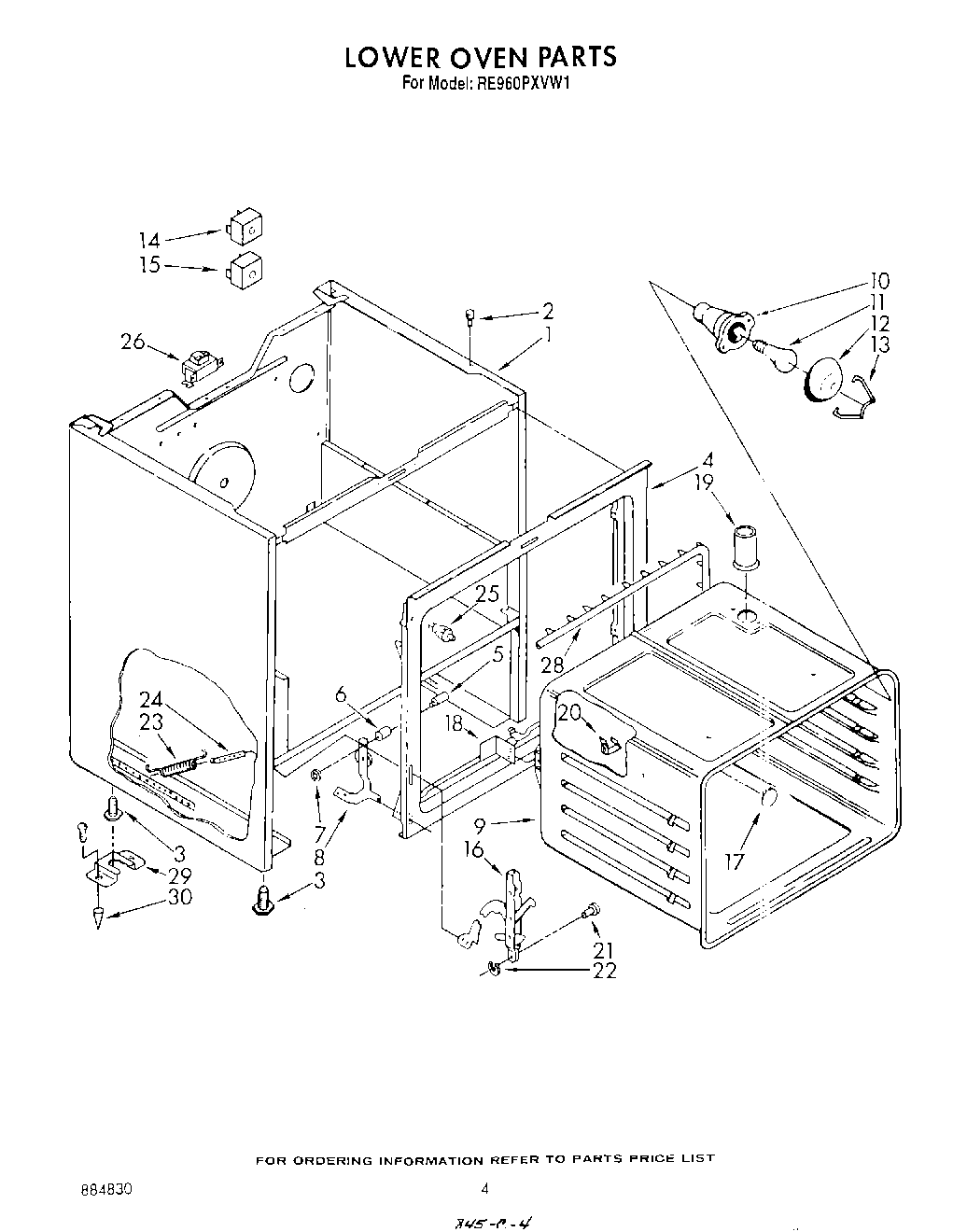

RE960PXVW1 03 – LOWER OVEN

Products

Position	Product
	SCREW
	Screw (10-12 x .875)
1	Main Chassis (White)
1	Main Chassis (Almond)
2	238614 Whirlpool Bumper Hinge
3	WPW10058460 Whirlpool Appliance Levelling Leg
4	Frame, Front
5	Pin, Hinge Ear (2)
6	Snubber, Door (2)
7	Pushnut (2)
8	Hinge (R.H.)
8	Hinge (L.H.)
9	Oven (30“ Pyro)
9	Screw (3)
10	Socket, Oven Light
10	Socket, Oven Light (Alt.)
10	Socket, Oven Light (Alt.)
11	RANGE ONLY 40W 120V APPL BULB
12	Cover, Light
13	Retainer, Light
14	Sw
15	Switch, Bake
15	WPL 314215
16	Channel, Arm (2)
17	Plug Button
18	Bracket, Oven (Mounting)
19	Screw, 10A x 1/2 (2) (Black)
19	Vent, Oven
20	98005642 Whirlpool Clip
21	WP307986 Whirlpool Hinge Pin
22	Retainer Ring (2)
23	WP308126 Whirlpool Door Spring
24	WP308125 Whirlpool Microwave Range/Cooktop Anchor
25	Switch, Door
26	Ballast (Alt.)
26	Ballast
26	Ballast (Alt.)
28	Seal, Door
29	Screw
29	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
30	Anchor, Plastic
