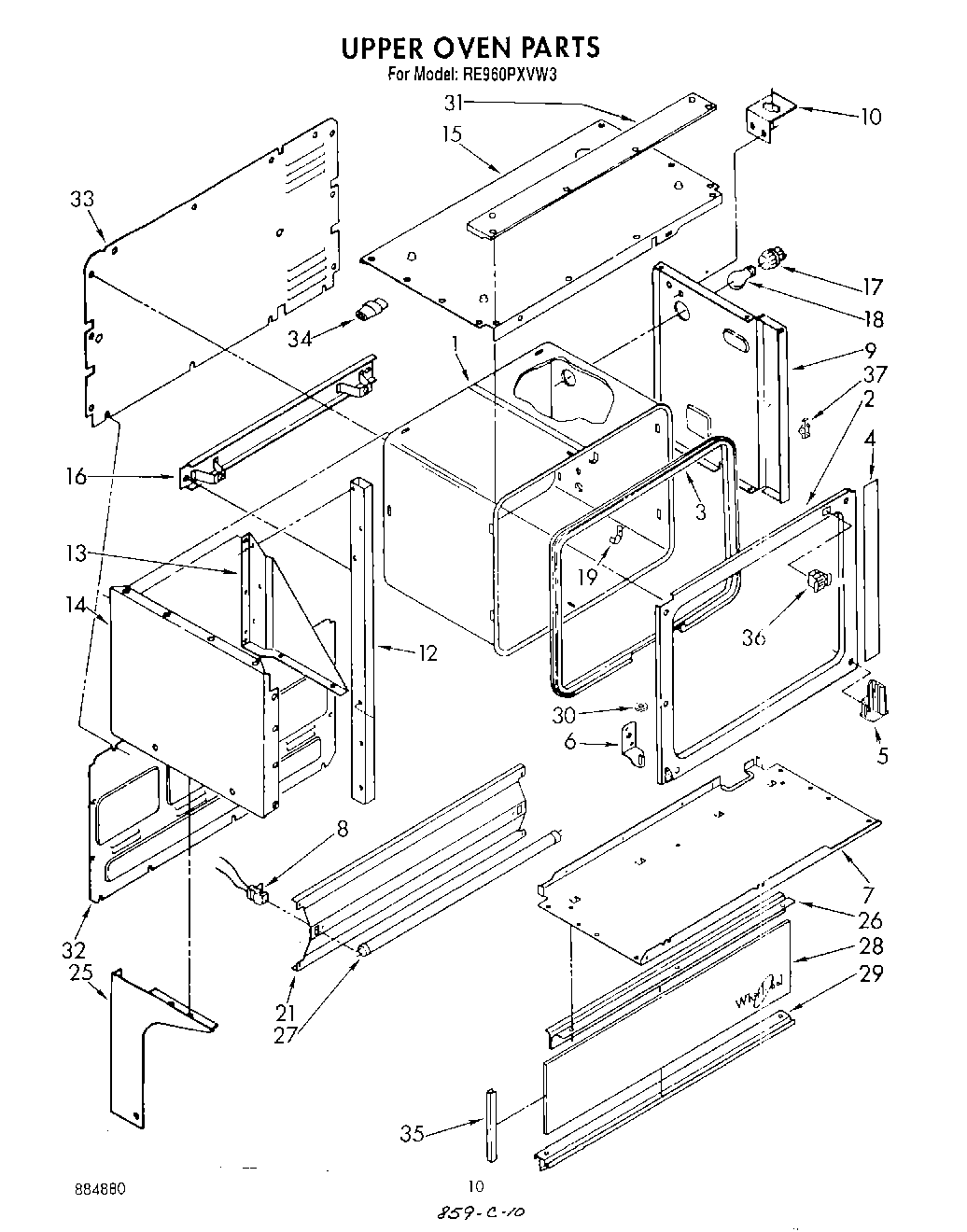

RE960PXVW3 06 – UPPER OVEN

Products

Position	Product
	Screw (10-12 x .875)
1	Oven (Continuous Clean)
2	Frame, Front
3	seal, door
4	shield, upper oven
5	latch plate (upper oven)
6	screw, 10-24 x 3/8 (2)
6	bracket, hinge
7	Bottom Panel
7	Channel, Rubber (4)
8	Socket Assembly L.H.
8	Socket Assembly R.H.
9	Baffle
10	Bracket, Receptacle
12	Support, Tubing R.H.
12	Support, Tubing L.H.
13	Gusset, R.H.
13	Gusset, L.H.
14	Panel, Side L.H. (White)
14	Panel, Side L.H. (Almond Panel, Side R.H.)
14	Panel, Side L.H. (White)
14	Panel, Side L.H. (Almond)
15	panel, top (screw, 10a x 3/8 (3))
15	Panel, Top (White)
15	Panel, Top (Almond)
16	bolt (2)
16	Nut, Retainer (2)
16	support, oven
17	Socket, Oven Light (Alt.)
17	Socket, Oven Light
17	Socket, Oven Light (Alt.)
18	RANGE ONLY 40W 120V APPL BULB
19	98005642 Whirlpool Clip
21	Panel, Backguard
25	WPL 330197
25	WPL 330194
25	WPL 330203
25	WPL 330200
26	WPL 313320
27	WP95292 Whirlpool Fluorescent Light Bulb
28	WPL 313322
29	WPL 313321
29	WP90767 Whirlpool Screw
29	WP488627 Whirlpool Refrigerator Screw
30	WPL 306615
31	WPL 3149613
31	WP355515 Whirlpool Screw
32	WPL 308112
33	WPL 309507
33	SCREW
34	WP75614 Whirlpool Connector
35	WPL 313319
36	WPL 3149611
36	Screw, 8-32 x 3/16 (2)
37	WP965173 Whirlpool Dishwasher Screw
37	WPL 3147623
