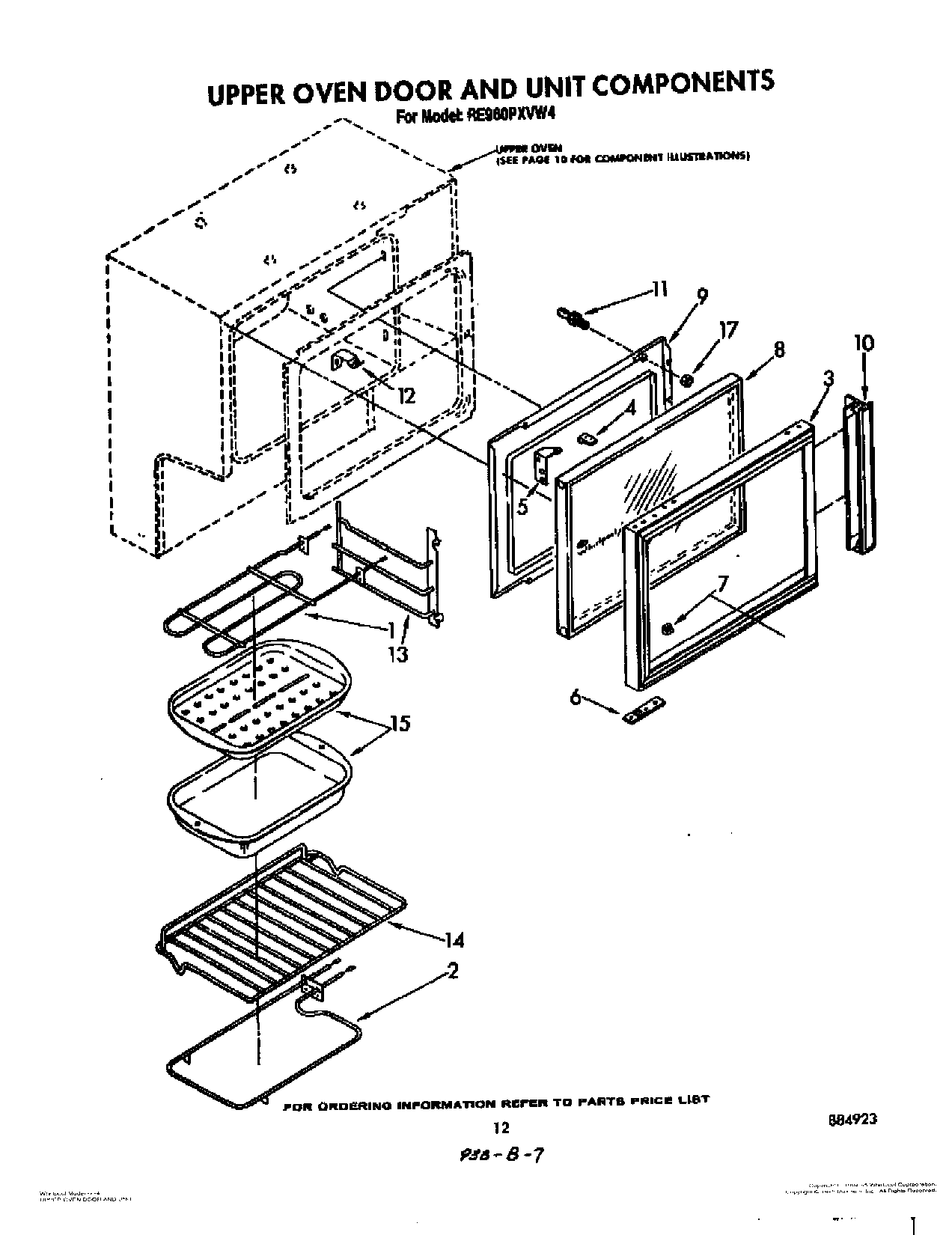

RE960PXVW4 07 – UPPER OVEN DOOR AND UNITadmin2025-04-26T08:45:55+00:00RE960PXVW4 07 – UPPER OVEN DOOR AND UNIT
Products
| Position | Product |
|---|
| 1 | unit, broil |
| 2 | Screw (2) |
| 2 | unit, bake |
| 3 | Frame, Door |
| 4 | Broil Stop |
| 5 | Hinge, Upper |
| 5 | screw, 10-24 x 3/8 (2) |
| 6 | plate hinge plated (2) |
| 6 | Washer (2) |
| 7 | Cushion, Window (9) |
| 8 | window, oven door |
| 9 | Liner, Door |
| 10 | WP488627 Whirlpool Refrigerator Screw |
| 10 | Handle |
| 10 | Screw |
| 11 | Strike, Catch |
| 12 | spring, broil stop |
| 12 | panel, top (screw, 10a x 3/8 (3)) |
| 13 | support, oven rack (2) |
| 14 | rack, upper oven |
| 15 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 17 | WP488130 Whirlpool Air Conditioner Nut |
