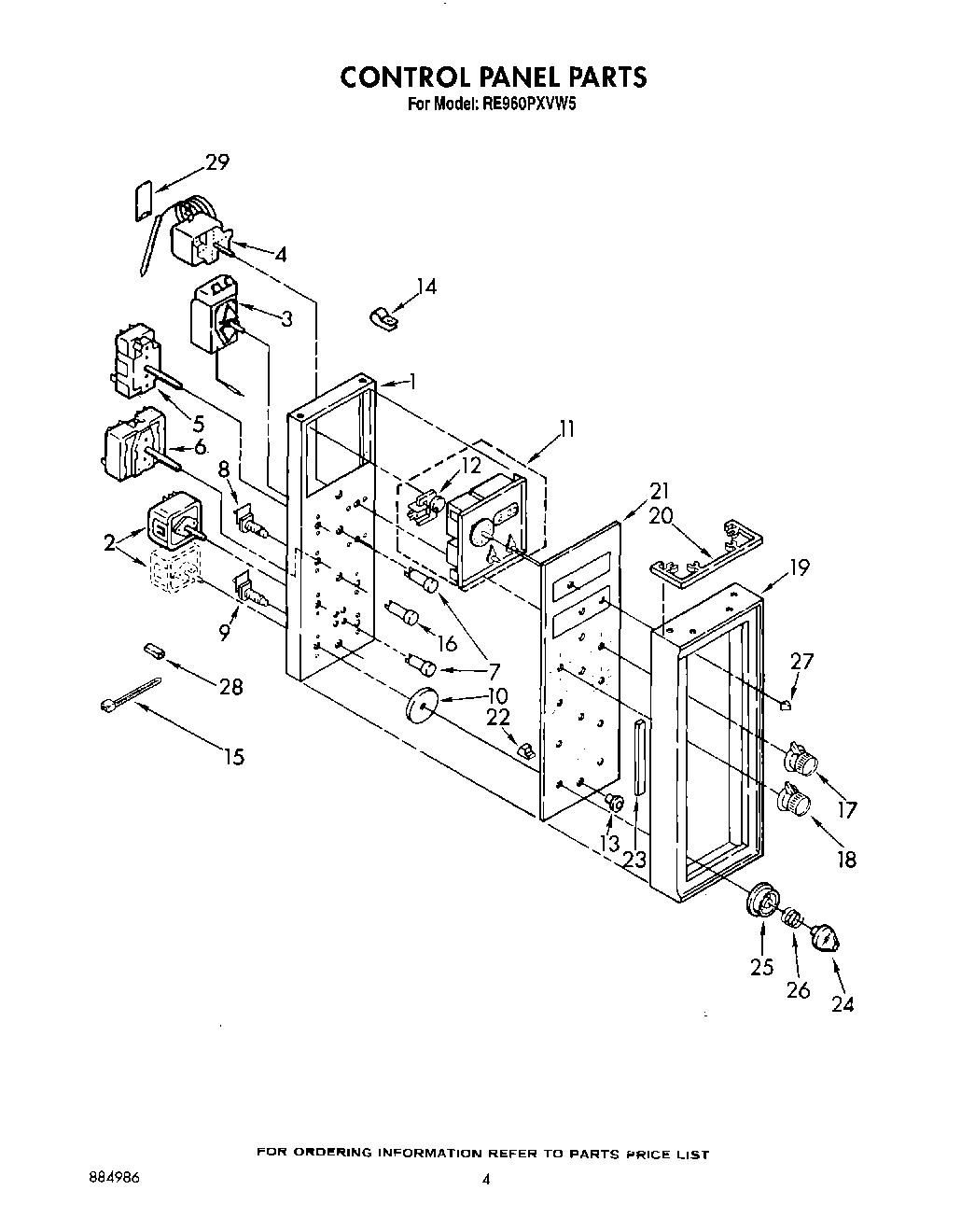

RE960PXVW5 03 – CONTROL PANEL

Products

Position	Product
1	Panel, Control
2	switch, infinite (4)
2	Screw, 8-32 x 3/16 (2)
3	Thermostat, Oven (Pyro)
4	Thermostat (Upper Oven)
5	Switch, Selector (4 Position)
6	WP965173 Whirlpool Dishwasher Screw
6	Switch, Selector (5 Position)
7	Light, Indicator 250V (6)
8	Switch, Fluorescent Light
9	Lockwasher
9	Switch, Oven Light
10	Skirt, Knob (4)
11	WP313808 Whirlpool Screw
11	Timer, Digital (Includes Illus. 12)
11	WP488627 Whirlpool Refrigerator Screw
12	Motor, Timer
13	Bezel Switch (1)
14	WP308685 Whirlpool Microwave Screw
14	Strain Relief
14	WP3390631 Whirlpool Screw
15	WPW10339879 Whirlpool Wire Tie
16	Indicator Light, Lock (1)
17	Knob, Thermostat
18	WP688805 Whirlpool Spring Clip
18	Screw
18	Knob, Selector
19	Frame, Control Panel
19	Screw, 10A x 2
20	filler, control panel
20	Screw,
21	Glass, Control Panel
22	retainer, glass (10)
23	Seal, Foam
24	Knob, Control (4)
25	bezel control knob (4)
26	spring, bezel (4)
27	WP3169181 Whirlpool Knob
28	Housing, Receptical
28	SCREW
29	Insulator (Thermostat)
