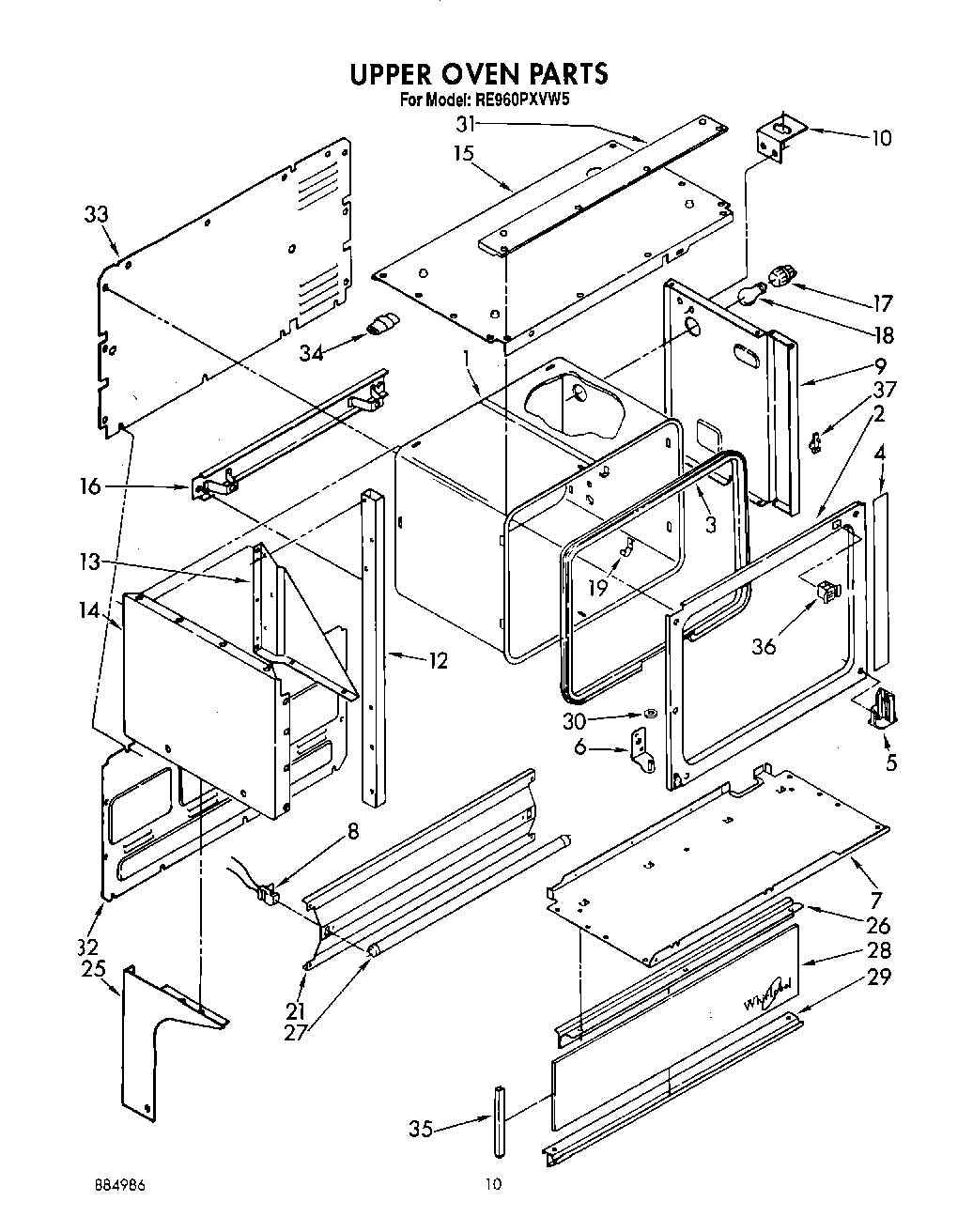

RE960PXVW5 06 – UPPER OVENadmin2025-04-26T08:45:59+00:00RE960PXVW5 06 – UPPER OVEN
Products
| Position | Product |
|---|
| 1 | Oven (Continuous Clean) |
| 2 | Frame, Front |
| 3 | seal, door |
| 4 | shield, upper oven |
| 5 | latch plate (upper oven) |
| 6 | screw, 10-24 x 3/8 (2) |
| 6 | bracket, hinge |
| 7 | Channel, Rubber (4) |
| 7 | Bottom Panel |
| 8 | Socket Assembly R.H. |
| 8 | Socket Assembly L.H. |
| 9 | Baffle |
| 10 | Bracket, Receptacle |
| 12 | Support, Tubing L.H. |
| 12 | Support, Tubing R.H. |
| 13 | Gusset, R.H. |
| 13 | Gusset, L.H. |
| 14 | Panel, Side L.H. (Almond) |
| 14 | Panel, Side L.H. (White) |
| 14 | Panel, Side L.H. (Almond Panel, Side R.H.) |
| 14 | Panel, Side L.H. (White) |
| 15 | Panel, Top (Almond) |
| 15 | Panel, Top (White) |
| 15 | panel, top (screw, 10a x 3/8 (3)) |
| 16 | bolt (2) |
| 16 | Nut, Retainer (2) |
| 16 | support, oven |
| 17 | Socket, Oven Light (Alt.) |
| 17 | Socket, Oven Light |
| 17 | Socket, Oven Light (Alt.) |
| 17 | Screw (10-12 x .875) |
| 18 | RANGE ONLY 40W 120V APPL BULB |
| 19 | 98005642 Whirlpool Clip |
| 21 | Panel, Backguard |
| 25 | WPL 330197 |
| 25 | WPL 330194 |
| 25 | WPL 330203 |
| 25 | WPL 330200 |
| 26 | WPL 313320 |
| 27 | WP95292 Whirlpool Fluorescent Light Bulb |
| 28 | WPL 313322 |
| 29 | WPL 313321 |
| 29 | WP90767 Whirlpool Screw |
| 29 | WP488627 Whirlpool Refrigerator Screw |
| 30 | WPL 306615 |
| 31 | WPL 3149613 |
| 31 | WP355515 Whirlpool Screw |
| 32 | WPL 308112 |
| 33 | WPL 309507 |
| 33 | SCREW |
| 34 | WP75614 Whirlpool Connector |
| 35 | WPL 313319 |
| 36 | WPL 3149611 |
| 36 | Screw, 8-32 x 3/16 (2) |
| 37 | WP965173 Whirlpool Dishwasher Screw |
| 37 | WPL 3147623 |
