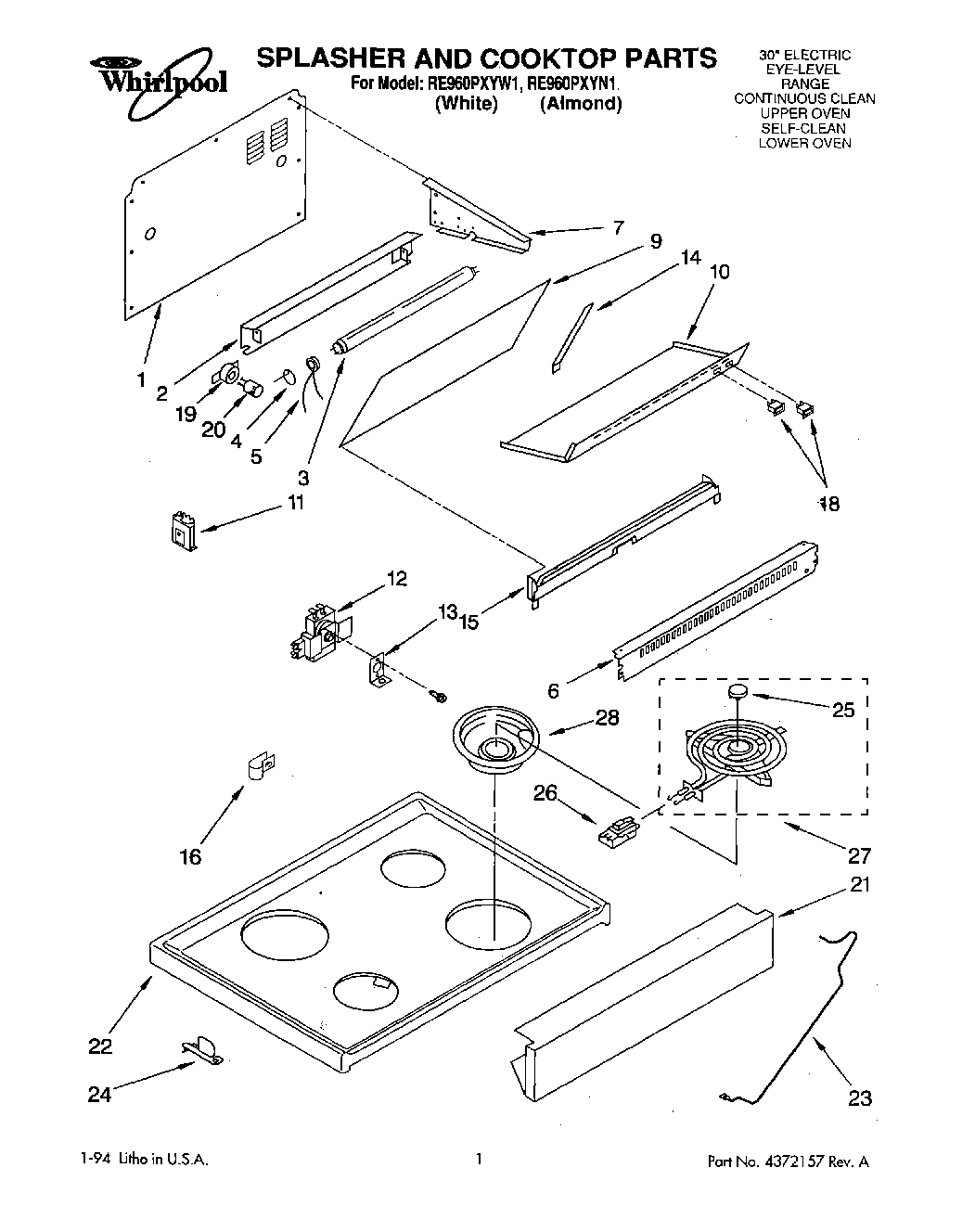

RE960PXYN1 01 – SPLASHER AND COOKTOPadmin2025-04-26T08:46:13+00:00RE960PXYN1 01 – SPLASHER AND COOKTOP
Products
| Position | Product |
|---|
| 1 | Back, Middle Wall |
| 2 | Reflector |
| 3 | WP95292 Whirlpool Fluorescent Light Bulb |
| 4 | Insulator (2) |
| 5 | Receptacle (2) |
| 6 | Vent, Trim |
| 7 | Support, Oven (Left Hand) |
| 7 | Support, Oven (Right Hand) |
| 9 | Glass, Splasher |
| 10 | Splasher, Panel (Upper) |
| 11 | Ballast |
| 12 | Thermostat, S/C |
| 13 | Bracket, Thermostat |
| 14 | Trim, Side (Right Hand) |
| 14 | Trim, Side (Left Hand) |
| 15 | Trim, Upper Oven Spl. Filler |
| 16 | Fastener, Cable |
| 18 | WP4314961 Whirlpool Lite Switch |
| 19 | Starter, Receptacle |
| 20 | Button, Glide |
| 21 | Panel, Manifold |
| 22 | Top, Main (White) |
| 22 | Top, Main (Almond) |
| 23 | Rod, Support Top |
| 24 | Bracket, Hinge RH |
| 24 | Bracket, Hinge LH |
| 25 | Medallion |
| 26 | BURNER RECEPTACLE KIT |
| 27 | WP660532 Whirlpool Oven Surface Element |
| 27 | WP660533 Whirlpool Oven 8" Surface Element |
| 28 | Pan, Surface (8`` (2)) |
| 28 | Pan, Surface (6`` (2)) |
