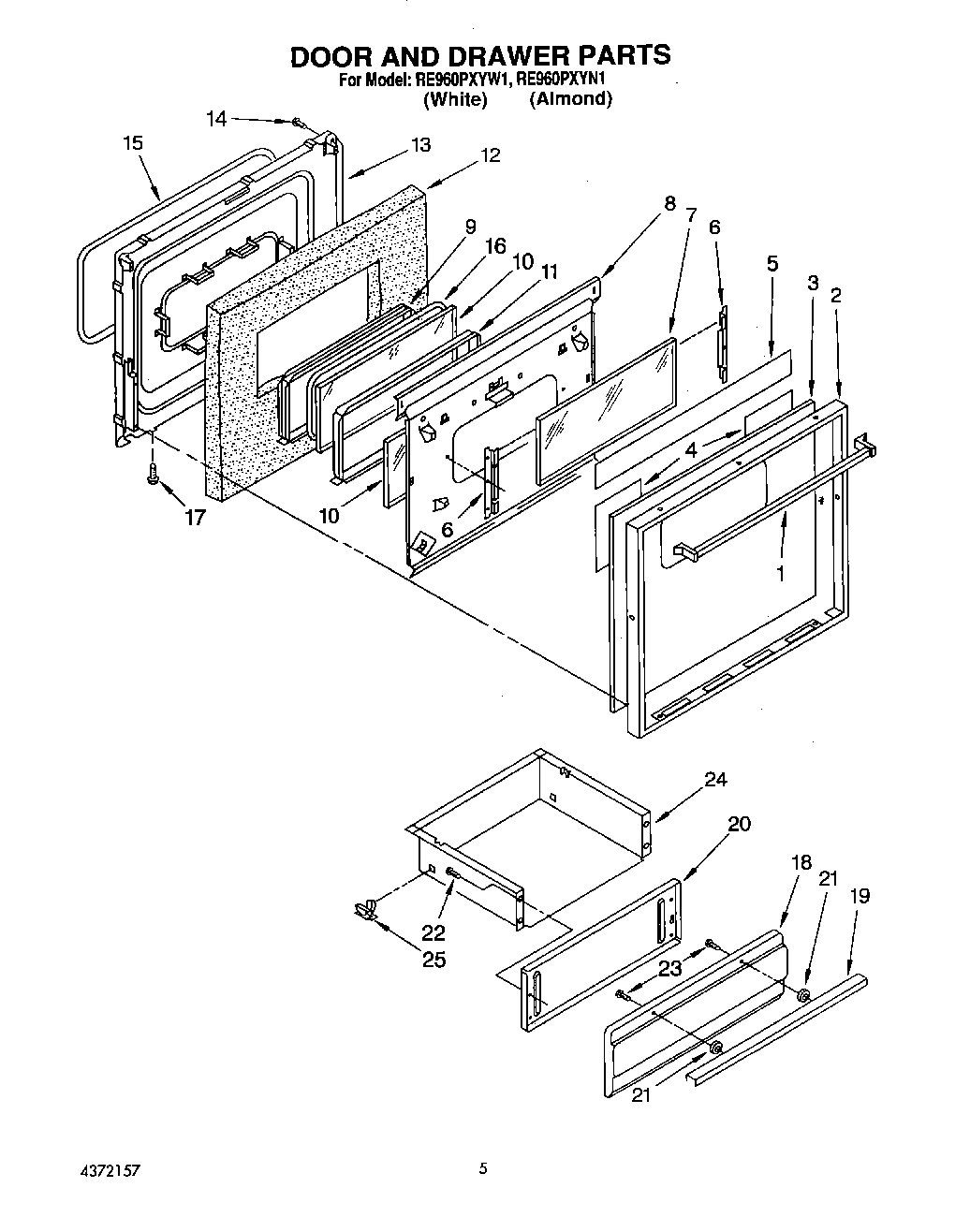

RE960PXYN1 03 – DOOR AND DRAWER

Products

Position	Product
1	Handle, Oven Door
2	Trim, Door
3	Glass, Door
4	Foil, Alum. (2)
5	Foil, Alum.
6	Bracket, Glass
7	Glass, Oven Door
8	Shield, Heat
9	Collar, Glass
10	Glass, Heat Barrier (2)
11	Spacer, Glass
12	Insulation, Door
13	Liner, Oven Door
14	Screw, Handle
15	Seal, Oven Door
16	Seal, Rope
17	Screw, Liner (3)
18	Panel, Drawer
19	Handle, Utility Drawer
20	Shield, Panel
21	Spacer, Handle
22	Screw, Panel (4)
23	WP489478 Whirlpool Refrigerator Screw
24	Drawer, Utility
25	Guide, Drawer
