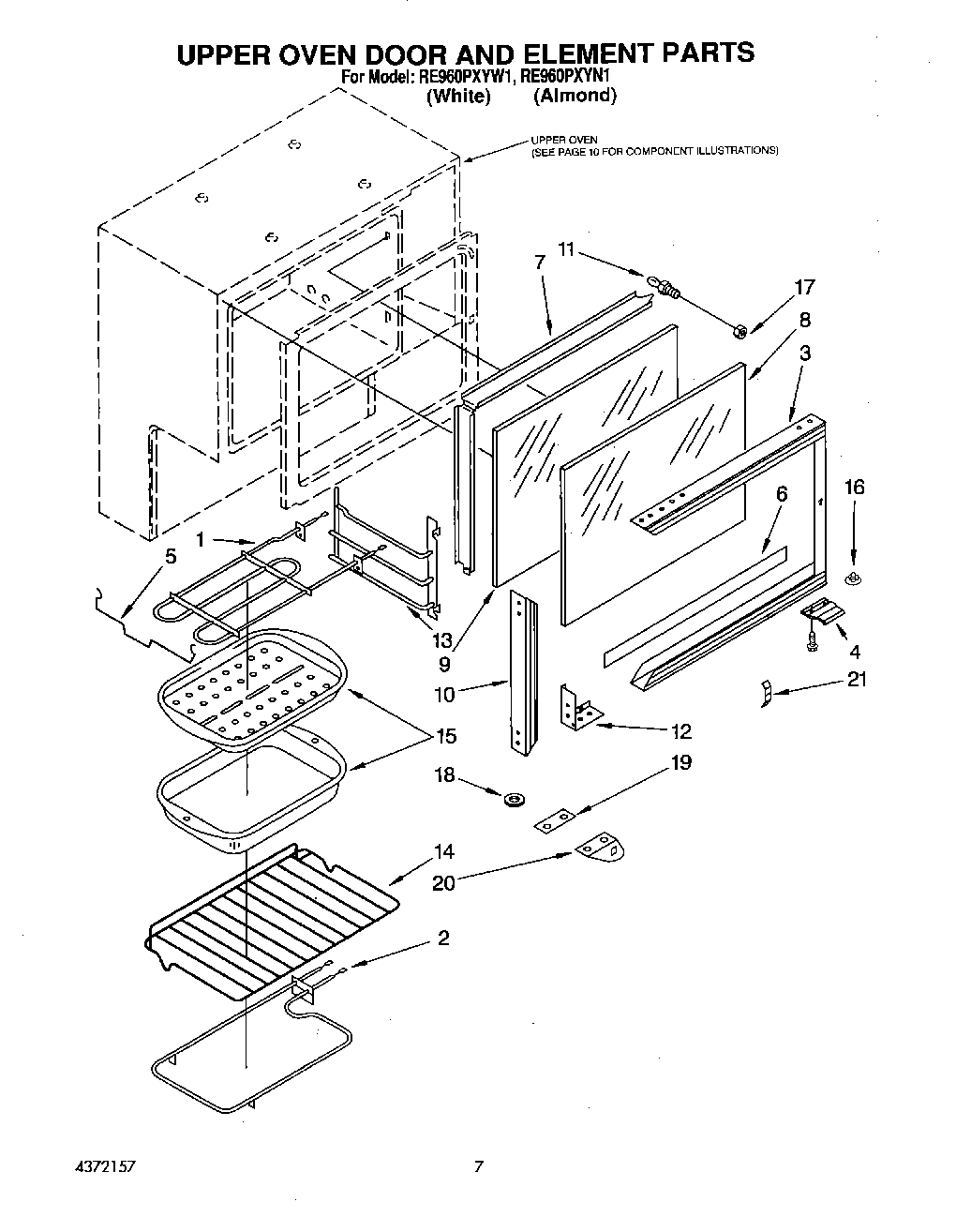

RE960PXYN1 05 – UPPER OVEN DOOR AND ELEMENTadmin2025-04-26T08:45:57+00:00RE960PXYN1 05 – UPPER OVEN DOOR AND ELEMENT
Products
| Position | Product |
|---|
| 1 | Element, Broil |
| 2 | Element, Bake |
| 3 | Screw, Frame (12) |
| 3 | Frame, Door |
| 4 | Handle, Door |
| 4 | WP912618 Whirlpool Dishwasher Screw |
| 5 | Support, Broiler |
| 6 | Spacer, Glass |
| 7 | Spacer, Glass (2) |
| 8 | Glass, Outer |
| 9 | Glass, Inner |
| 10 | End, Door Frame |
| 11 | Strike, Door |
| 12 | Support, Corner (2) |
| 13 | Glide, Oven Rack (2) |
| 14 | Rack, Upper Oven |
| 15 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
| 16 | Button, Wear |
| 17 | Nut, Hex (2) |
| 18 | Washer, Hinge (2) |
| 19 | Plate, Bottom Hinge |
| 20 | Hinge, Door |
| 21 | Strike, Door |
