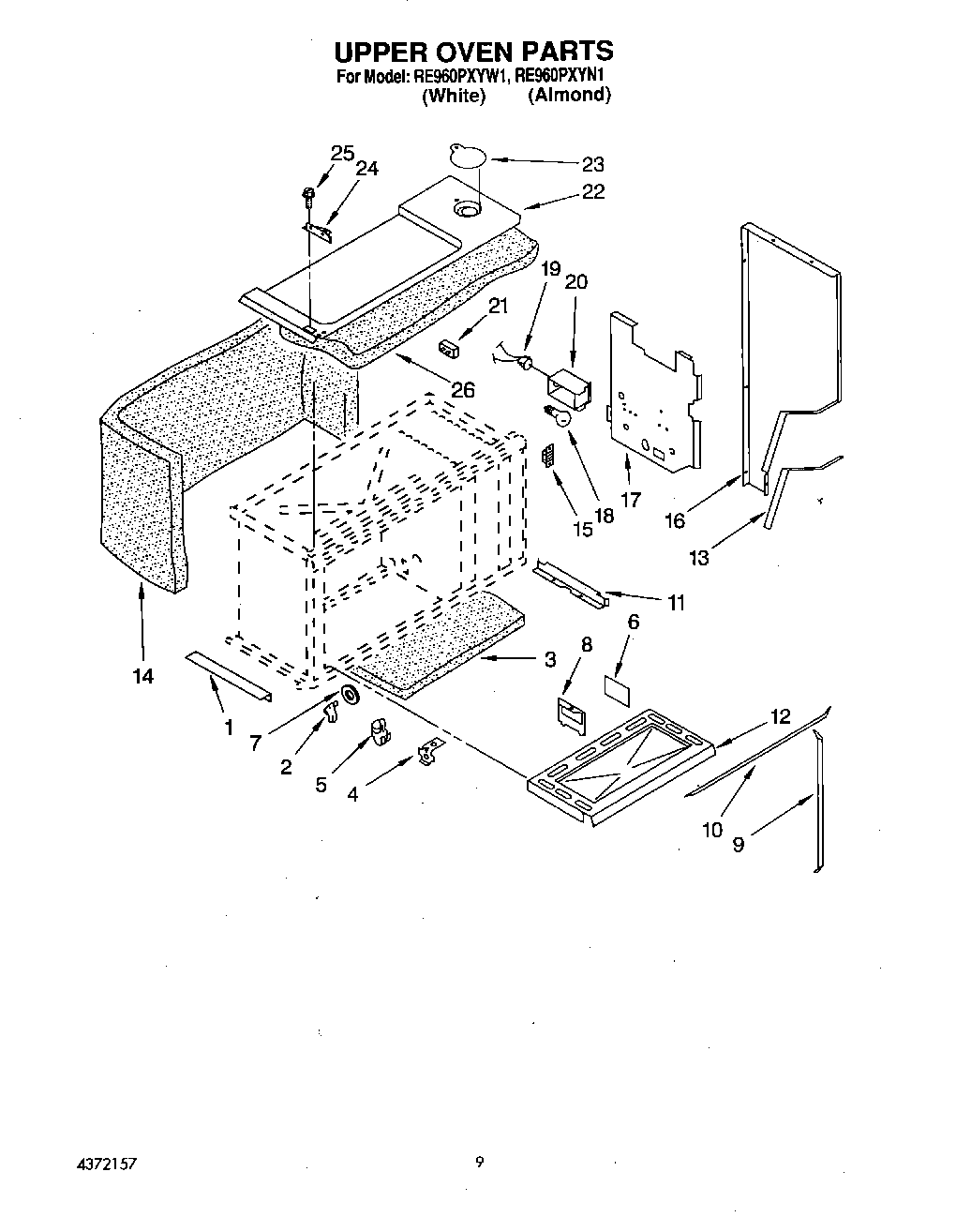

RE960PXYN1 06 – UPPER OVEN

Products

PositionProduct
1Support, Side (2)
2Hinge, Door
3Insulation, Bottom
4Plate, Bottom Hinge
5Clip, Thermo Bulb
6Glass, Oven Light Lens
7Washer, Hinge (2)
8Cover, Oven Lens
9Seal, Door Side
10Seal, Door Top/Bottom
11Glide, Oven Bottom
12Bottom, Oven
13Trim, Side (Left Hand)
13Trim, Side (Right Hand)
14Insulation, Back & Sides
15Catch, Door
16Panel, Back Side (Right (Almond))
16Panel, Back Side (Right (White))
16Panel, Back Side (Left (White))
16Panel, Back Side (Left (Almond))
17Shield, Wool Upper Oven
18RANGE ONLY 40W 120V APPL BULB
19W10856866 Whirlpool Light Socket
20Box, Upper Oven Light
21Fuse, Thermal Cut-Out
22Top, Panel Upper Oven
23Cover, Outlet
24Hinge, Door Top
25Screw, Shoulder (2)
26Strike, Door Align
26Retainer, Oven Burner
26Insulation, Wool
26Insulation, Upper Oven
26Bracket, Connector Mounting
26Insulation, Wool
26Insulation, Wool Splasher
26Foil, Aluminum
26Insulation, Top
