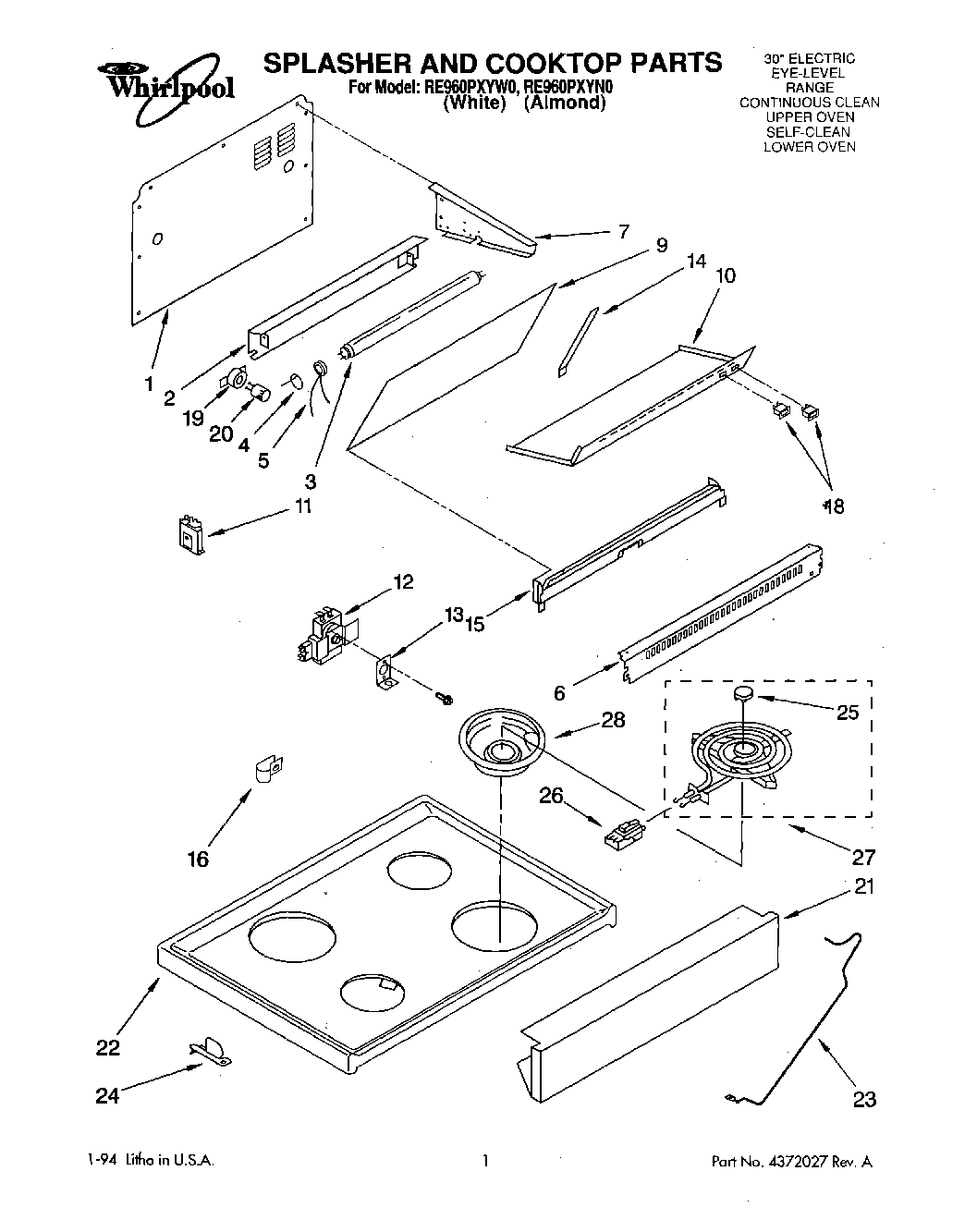

RE960PXYW0 01 – SPLASHER AND COOKTOP

RE960PXYW0 01 – SPLASHER AND COOKTOP

Written by

in

RE960PXYW0 01 – SPLASHER AND COOKTOP

Products

PositionProduct
1Back, Middle Wall
2Reflector
3WP95292 Whirlpool Fluorescent Light Bulb
4Insulator (2)
5Receptacle (2)
6Vent, Trim
7Support, Oven (Left Hand)
7Support, Oven (Right Hand)
9Glass, Splasher
10Splasher, Panel (Upper)
11Ballast
12Thermostat, S/C
13Bracket, Thermostat
14Trim, Side (Right Hand)
14Trim, Side (Left Hand)
15Trim, Upper Oven Spl. Filler
16Fastener, Cable
18WP4314961 Whirlpool Lite Switch
19Starter, Receptacle
20Button, Glide
21Panel, Manifold
22Top, Main (White)
22Top, Main (Almond)
23Rod, Support Top
24Bracket, Hinge RH
24Bracket, Hinge LH
25Medallion
26BURNER RECEPTACLE KIT
27WP660532 Whirlpool Oven Surface Element
27WP660533 Whirlpool Oven 8" Surface Element
28Pan, Surface (8“ (2))
28Pan, Surface (6“ (2))
