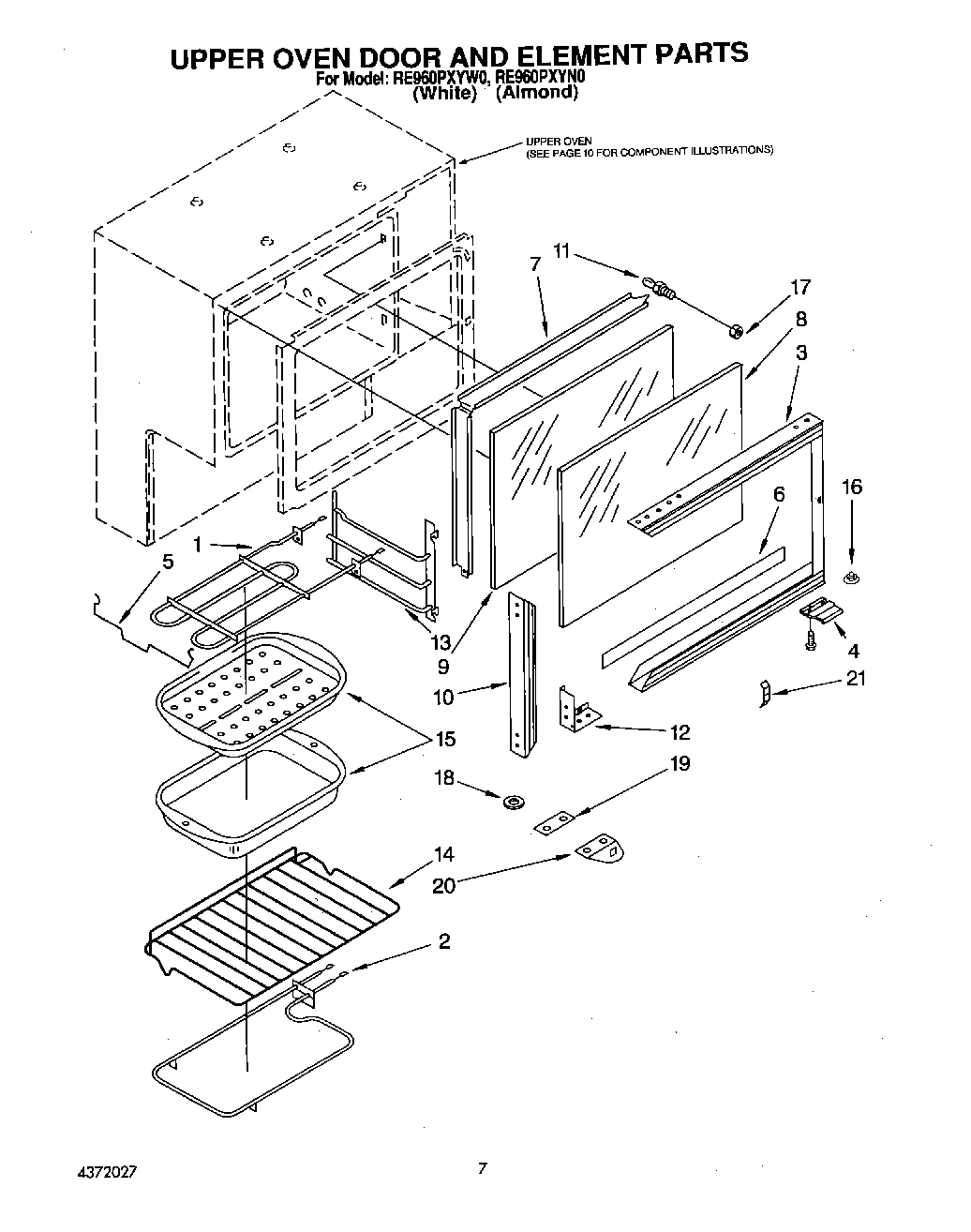

RE960PXYW0 05 – UPPER OVEN DOOR AND ELEMENT

Products

Position	Product
1	Element, Broil
2	Element, Bake
3	Screw, Frame (12)
3	Frame, Door
4	Handle, Door
4	WP912618 Whirlpool Dishwasher Screw
5	Support, Broiler
6	Spacer, Glass
7	Spacer, Glass (2)
8	Glass, Outer
9	Glass, Inner
10	End, Door Frame
11	Strike, Door
12	Support, Corner (2)
13	Glide, Oven Rack (2)
14	Rack, Upper Oven
15	4396923 Whirlpool Broil Pan Set Gray Porcelain
16	Button, Wear
17	Nut, Hex (2)
18	Washer, Hinge (2)
19	Plate, Bottom Hinge
20	Hinge, Door
21	Strike, Door
