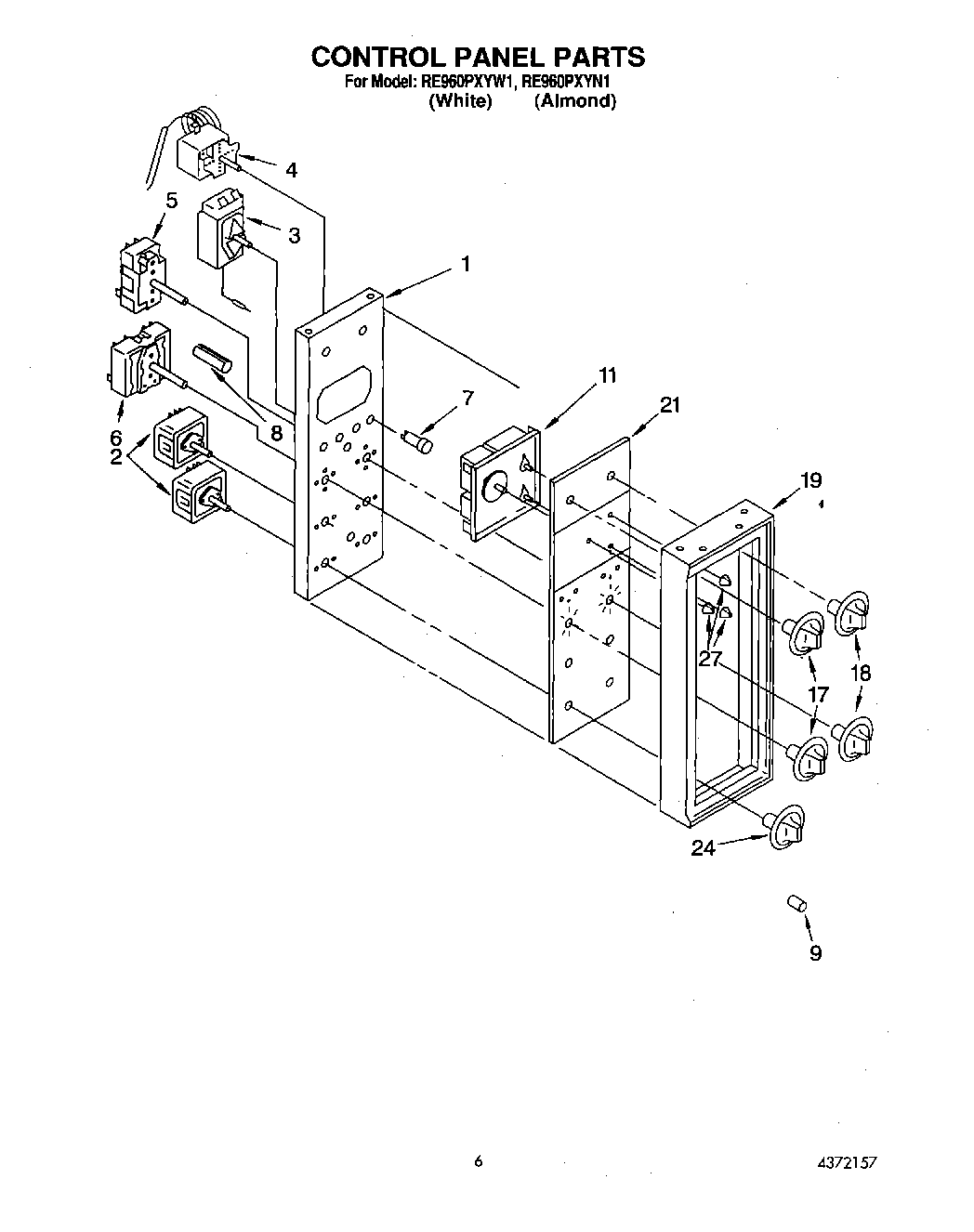

RE960PXYW1 04 – CONTROL PANELadmin2025-04-26T08:46:12+00:00RE960PXYW1 04 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Panel, Control Mtg |
| 2 | W10900107 Whirlpool Oven Surface Element Switch |
| 3 | Thermostat, Oven (Lower Oven) |
| 4 | Thermostat, Oven (Upper Oven) |
| 5 | Switch, Selector (Upper,5 Position) |
| 6 | Switch, Selector (Lower,6 Position) |
| 7 | Light, Indicator (Clean/Lock/Surface 125V (3)) |
| 7 | Light, Indicator (Oven Indicator 250V (2)) |
| 8 | Fastener, Clock (3) |
| 9 | Bushing |
| 11 | Clock, Timer |
| 17 | Knob, Thermostat (Upper) |
| 17 | Knob, Thermostat (Lower) |
| 18 | Knob, Selector (Lower, 6 Position) |
| 18 | Knob, Selector (Upper, 5 Position) |
| 19 | Frame, Control Panel |
| 21 | Glass, Control Panel |
| 24 | Knob, Control (4) |
| 27 | Knob, Clock (3) |
