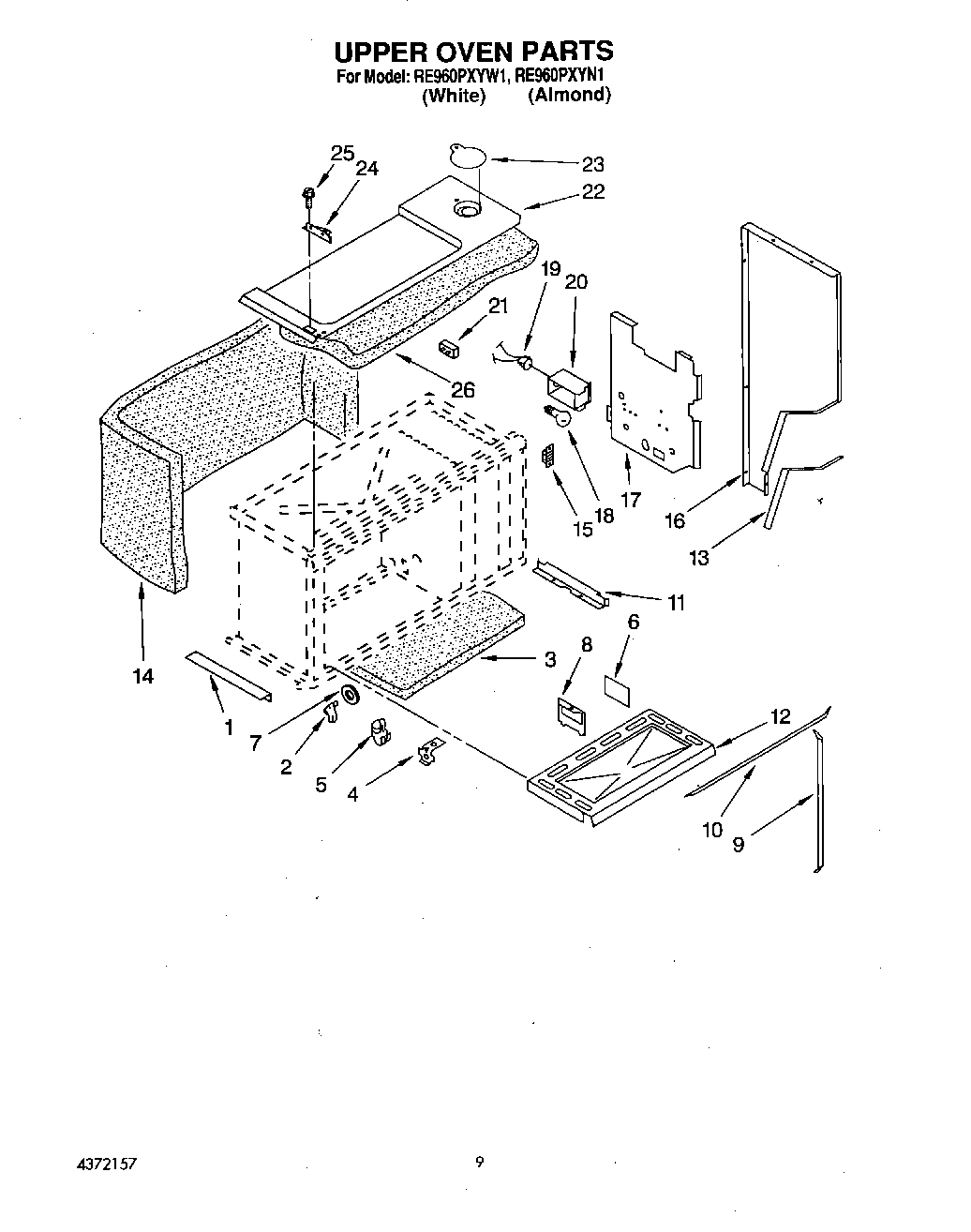

RE960PXYW1 06 – UPPER OVENadmin2025-04-26T08:45:40+00:00RE960PXYW1 06 – UPPER OVEN
Products
| Position | Product |
|---|
| 1 | Support, Side (2) |
| 2 | Hinge, Door |
| 3 | Insulation, Bottom |
| 4 | Plate, Bottom Hinge |
| 5 | Clip, Thermo Bulb |
| 6 | Glass, Oven Light Lens |
| 7 | Washer, Hinge (2) |
| 8 | Cover, Oven Lens |
| 9 | Seal, Door Side |
| 10 | Seal, Door Top/Bottom |
| 11 | Glide, Oven Bottom |
| 12 | Bottom, Oven |
| 13 | Trim, Side (Left Hand) |
| 13 | Trim, Side (Right Hand) |
| 14 | Insulation, Back & Sides |
| 15 | Catch, Door |
| 16 | Panel, Back Side (Right (Almond)) |
| 16 | Panel, Back Side (Right (White)) |
| 16 | Panel, Back Side (Left (White)) |
| 16 | Panel, Back Side (Left (Almond)) |
| 17 | Shield, Wool Upper Oven |
| 18 | RANGE ONLY 40W 120V APPL BULB |
| 19 | W10856866 Whirlpool Light Socket |
| 20 | Box, Upper Oven Light |
| 21 | Fuse, Thermal Cut-Out |
| 22 | Top, Panel Upper Oven |
| 23 | Cover, Outlet |
| 24 | Hinge, Door Top |
| 25 | Screw, Shoulder (2) |
| 26 | Strike, Door Align |
| 26 | Retainer, Oven Burner |
| 26 | Insulation, Wool |
| 26 | Insulation, Upper Oven |
| 26 | Bracket, Connector Mounting |
| 26 | Insulation, Wool |
| 26 | Insulation, Wool Splasher |
| 26 | Foil, Aluminum |
| 26 | Insulation, Top |
