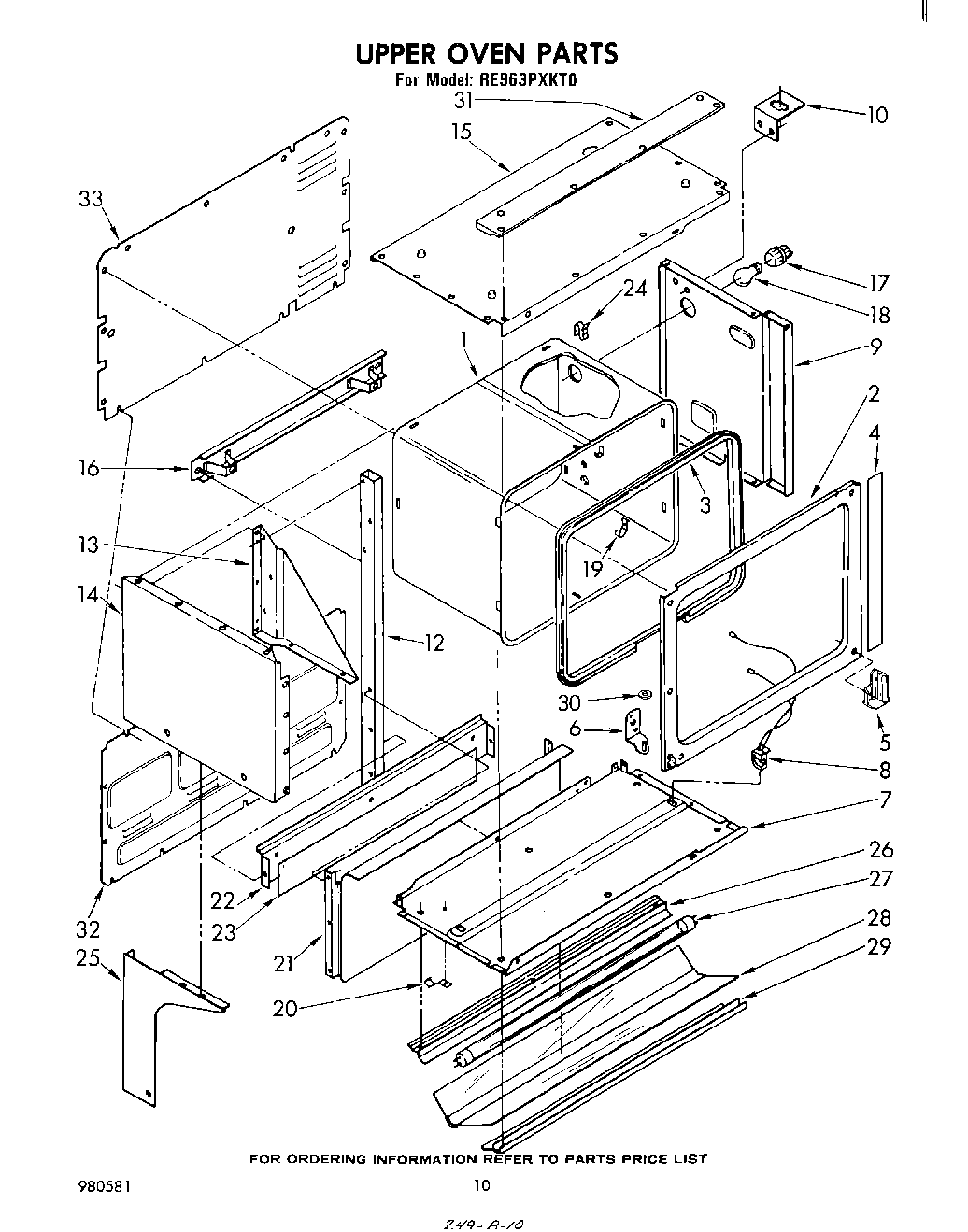

RE963PXKT0 06 – UPPER OVEN

Products

Position	Product
1	Oven (Continuous Clean)
2	frame, front
3	seal, door
4	shield, upper oven
5	latch plate (upper oven)
5	Screw (3)
6	bracket, hinge
6	screw, 10-24 x 3/8 (2)
7	bottom panel
8	Screw
8	Socket Assembly, R.H.
8	Socket Assembly, L. H.
9	baffle
10	Bracket, Receptacle
12	Support, Tubing R.H.
12	Tubing, Support L.H.
13	gusset, r.h.
13	Clip ``J`` (2)
13	Gusset, L.H.
14	Panel, Side L.H. (Almond Panel, Side R.H.)
14	Panel, Side L.H. (Almond)
14	Panel, Side L.H. (Screw, 10A x 1/2 (2))
15	Panel, Top (Almond)
15	SCREW
16	support, oven
16	bolt (2)
16	Nut, Retainer (2)
17	Socket, Oven Light (Alt.)
17	Socket, Oven Light (Alt.)
17	Screw (10-12 x .875)
18	RANGE ONLY 40W 120V APPL BULB
19	98005642 Whirlpool Clip
20	spring, glass (4)
20	WP965173 Whirlpool Dishwasher Screw
21	Pan
22	WPL 308776
23	panel, top (screw, 10a x 3/8 (3))
23	WPL 309144
24	WPL 309211
25	WPL 246134
25	WPL 328154
25	WPL 328150
25	WPL 310304
25	WPL 308980
26	WPL 308896
27	WP95292 Whirlpool Fluorescent Light Bulb
28	WPL 328306
29	WPL 308897
30	WPL 306615
31	WP488627 Whirlpool Refrigerator Screw
31	WPL 327916
31	WPL 145419
32	WP308544 Whirlpool Screw
32	WPL 308112
33	WPL 309507
