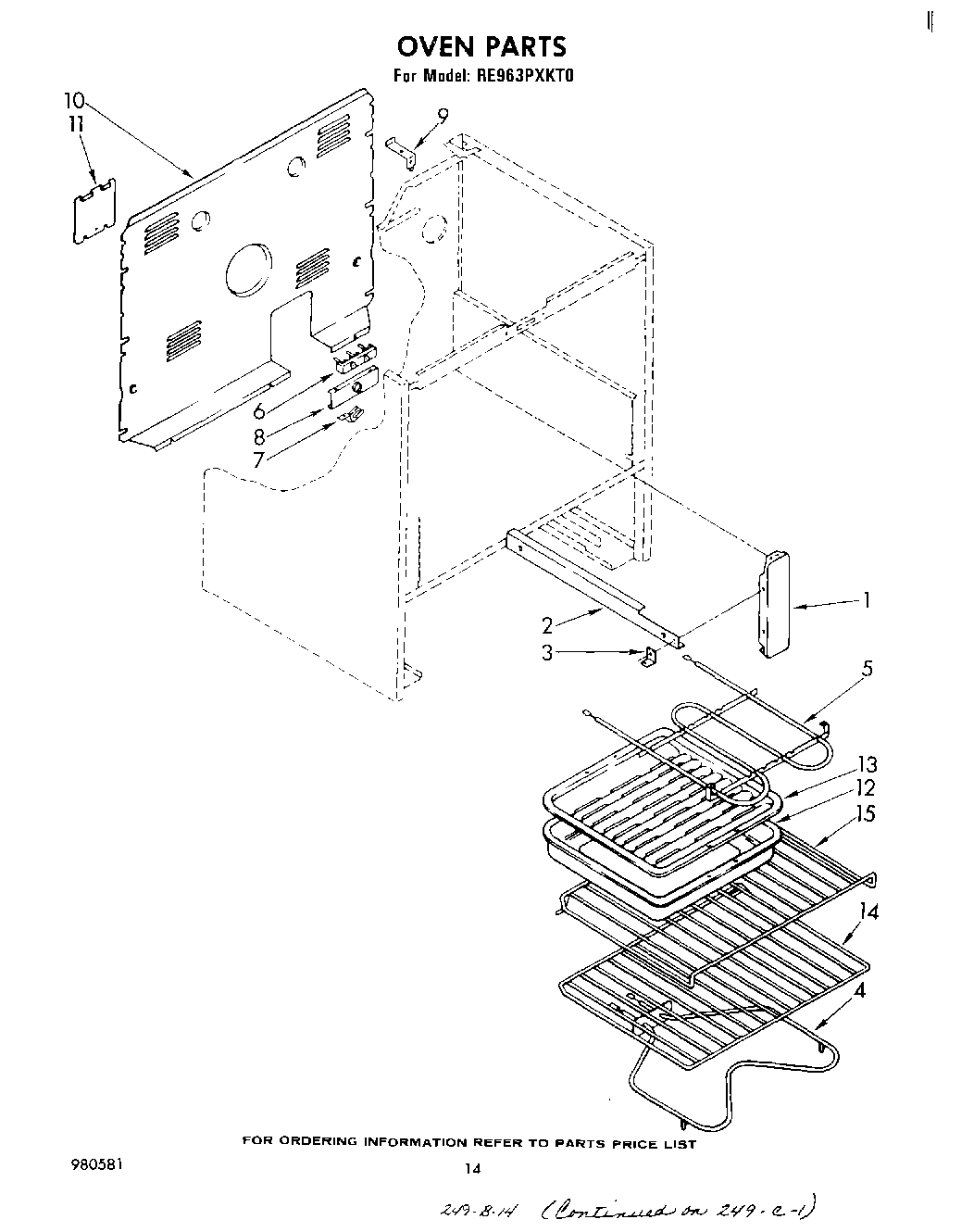

RE963PXKT0 08 – OVEN (CONTINUED) , LITERATURE AND OPTIONAL

RE963PXKT0 08 – OVEN (CONTINUED) , LITERATURE AND OPTIONAL

Written by

in

RE963PXKT0 08 – OVEN (CONTINUED) , LITERATURE AND OPTIONAL

Products

Position	Product
	511873 Whirlpool Refrigerator Paint
	Golden Harvest (Uncut)
	Almond (Uncut)
	Enamel, Coffee (1 Qt. Uncut)
	799344 Whirlpool Refrigerator Paint
	Enamel, New Avocado (1 Qt. Uncut)
	Rotisserie Kit
1	Bracket, Mounting (2)
2	Rail R.H. (Includes Illus. 3)
2	rail l.h. (includes illus. 3)
2	WP308685 Whirlpool Microwave Screw
3	Glide, Front (2)
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
5	Screw, 10-32 x 5/8 (4)
6	W10841059 Whirlpool Screw
6	WP8203546 Whirlpool Terminal Block
6	WP112432 Whirlpool Nut Assembly
7	SCREW
7	WPL 308498
8	Bracket, Service
9	WPL 309102
10	Cover, Rear
11	WP308544 Whirlpool Screw
11	Cover, Service
12	Pan, Broiler
13	Rack, Broiler
14	WPL 308173
15	Wire (14 Ga. 200 c Brown)
15	1
15	18 Ga. 80~c Rating (Red)
15	Grease
15	WPL 799351
15	WPL 308494
15	Leveler (Thinner) (2oz.)
15	WPL 308500
15	Golden Harvest
15	WPL 311429
15	WPL 980581
15	Wire (12 Ga. 150 c Black)
15	Wire (14 Ga. 150 c Yellow)
15	Wire, 25` Roll (Red 14 Ga.)
15	Wire, 25` Roll (Black 14 Ga.)
15	FOIL, ALUMINUM OVEN (18“ X 25 )
15	WPW10208653 Whirlpool Insulation
15	WPL 799832
15	350942 Whirlpool Spray Paint
15	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
15	WP72107 Whirlpool Touchup
15	72017 Whirlpool Appliance Touch-Up Paint White
15	350956 Whirlpool Spray Assembly
15	Wire, 25“ Roll (White 14 GA.)
15	285006 Whirlpool Spray
15	72109 Whirlpool Dacor Avocado Touch-Up Paint
15	Wire (14 Ga. 150 c Orange)
15	WPL 308172
15	Wire (14 Ga. 150 c Green)
15	Wire (14 Ga. 150 c Brown)
15	Wire (14 Ga. 150 c Blue)
15	paint, spray 13 oz. (coffee)
15	242831 Whirlpool Oven Wire
15	Touch-Up Oven (1 Oz.)
15	Paint, Spray 13 Oz. (Avocado)
15	Paint, Touch-Up 1/2 Oz. (Coffee)
15	350930 Whirlpool White Spray Paint
