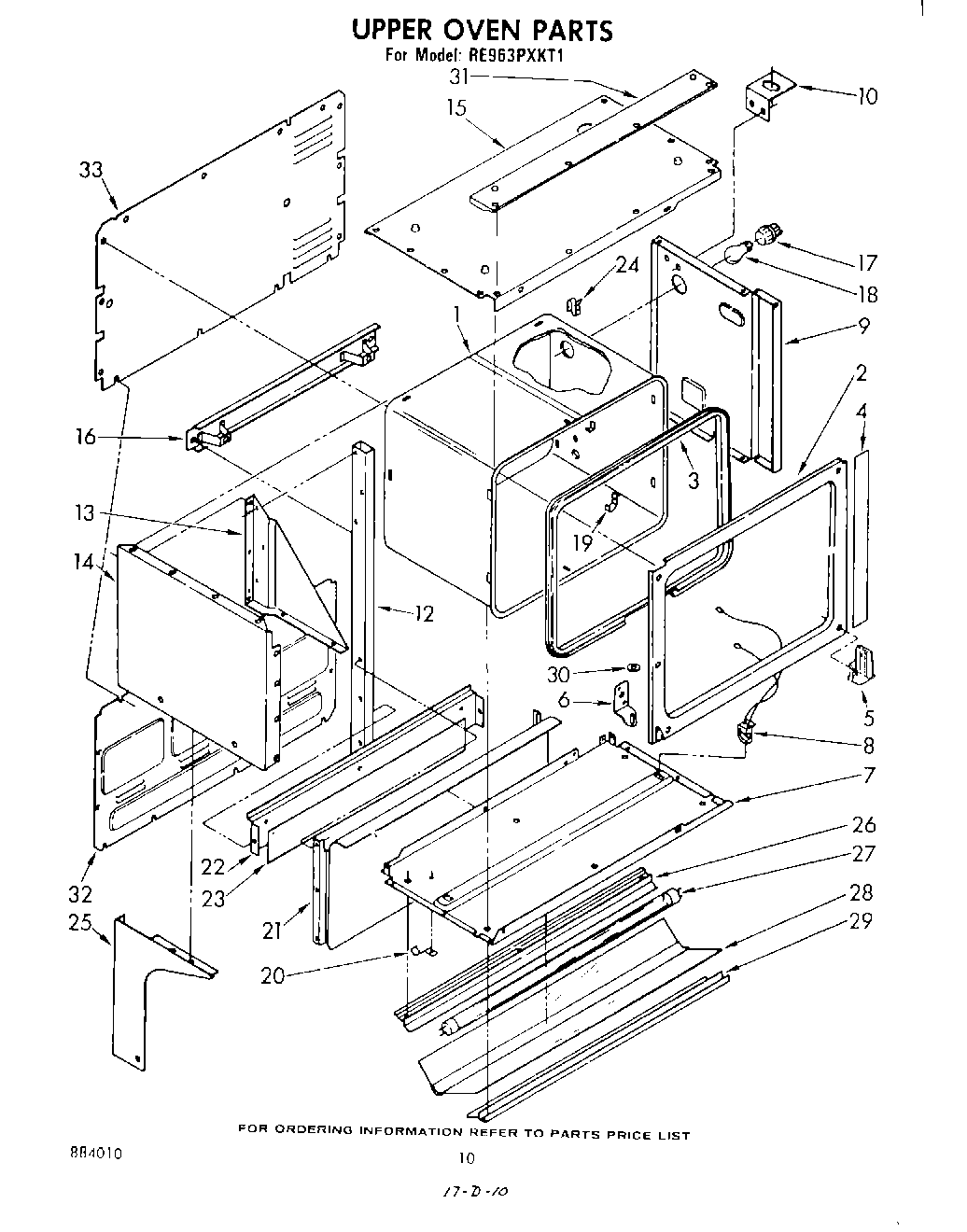

RE963PXKT1 06 – UPPER OVENadmin2025-04-26T13:15:39+00:00RE963PXKT1 06 – UPPER OVEN
Products
| Position | Product |
|---|
| 1 | Oven (Continuous Clean) |
| 2 | frame, front |
| 3 | seal, door |
| 4 | shield, upper oven |
| 5 | Screw (3) |
| 5 | latch plate (upper oven) |
| 6 | bracket, hinge |
| 6 | screw, 10-24 x 3/8 (2) |
| 7 | bottom panel |
| 8 | Screw |
| 8 | Socket Assembly, L. H. |
| 8 | Socket Assembly, R.H. |
| 9 | baffle |
| 10 | Bracket, Receptacle |
| 12 | Support, Tubing L.H. |
| 12 | Support, Tubing R.H. |
| 13 | gusset, r.h. |
| 13 | Gusset, L.H. |
| 13 | Clip ``J`` (2) |
| 14 | Panel, Side L.H. (Almond) |
| 14 | Panel, Side L.H. (Screw, 10A x 1/2 (2)) |
| 14 | panel, side l.h. (almond panel, side r.h.) |
| 15 | SCREW |
| 15 | Panel, Top (Almond) |
| 16 | support, oven |
| 16 | Nut, Retainer (2) |
| 16 | bolt (2) |
| 17 | Screw (10-12 x .875) |
| 17 | Socket, Oven Light (Alt.) |
| 17 | Socket, Oven Light (Alt.) |
| 18 | RANGE ONLY 40W 120V APPL BULB |
| 19 | 98005642 Whirlpool Clip |
| 20 | WP965173 Whirlpool Dishwasher Screw |
| 20 | spring, glass (4) |
| 21 | WPL 312553 |
| 22 | WPL 308776 |
| 23 | panel, top (screw, 10a x 3/8 (3)) |
| 23 | WPL 309144 |
| 24 | WPL 309211 |
| 25 | WPL 328154 |
| 25 | WPL 310304 |
| 25 | WPL 246134 |
| 25 | WPL 328150 |
| 25 | WPL 308980 |
| 26 | WPL 308896 |
| 27 | WP95292 Whirlpool Fluorescent Light Bulb |
| 28 | WPL 328306 |
| 29 | WPL 308897 |
| 30 | WPL 306615 |
| 31 | WPL 327916 |
| 31 | WP488627 Whirlpool Refrigerator Screw |
| 31 | WPL 312331 |
| 32 | WPL 308112 |
| 32 | WP308544 Whirlpool Screw |
| 33 | WPL 309507 |
