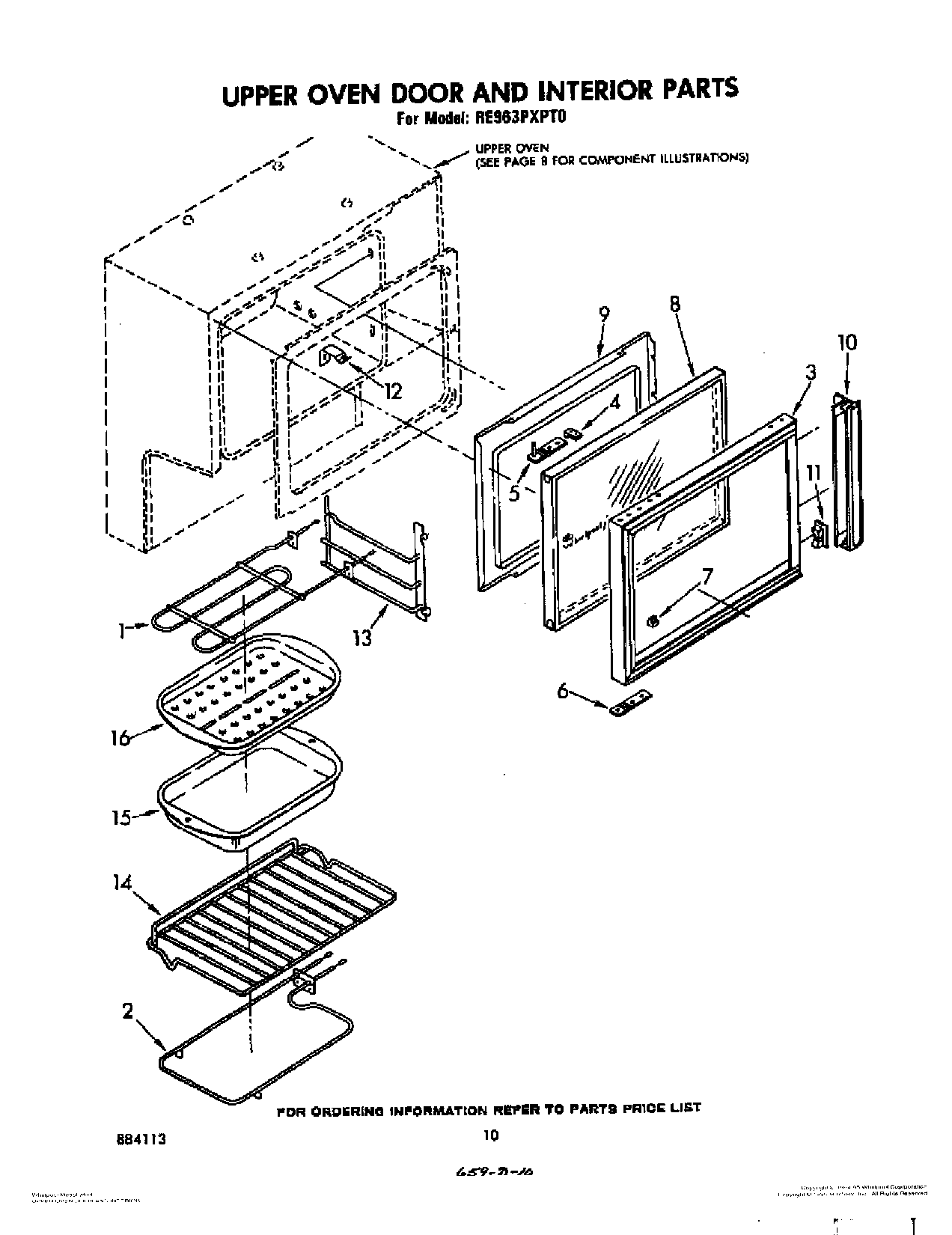

RE963PXPT0 06 – UPPER OVEN DOOR AND INTERIORadmin2025-04-26T08:46:08+00:00RE963PXPT0 06 – UPPER OVEN DOOR AND INTERIOR
Products
| Position | Product |
|---|
| NOTE: The screws and nuts required to attach a part are listed immediately following that part. |
| 1 | unit, broil |
| 2 | unit, bake |
| 2 | Screw, 10-32 x 5/8 (4) |
| 3 | Frame, Door |
| 4 | Broil Stop |
| 5 | plate, hinge |
| 6 | Screw |
| 6 | Washer (2) |
| 6 | plate hinge plated (2) |
| 7 | Cushion, Window (9) |
| 8 | window, oven door |
| 9 | liner, door |
| 9 | Speed Nut (6) |
| 10 | Handle, |
| 10 | Screw |
| 10 | WP488627 Whirlpool Refrigerator Screw |
| 11 | catch, door |
| 12 | spring, broil stop |
| 12 | panel, top (screw, 10a x 3/8 (3)) |
| 13 | support, oven rack (2) |
| 14 | rack, upper oven |
| 15 | 4396923 Whirlpool Broil Pan Set Gray Porcelain |
