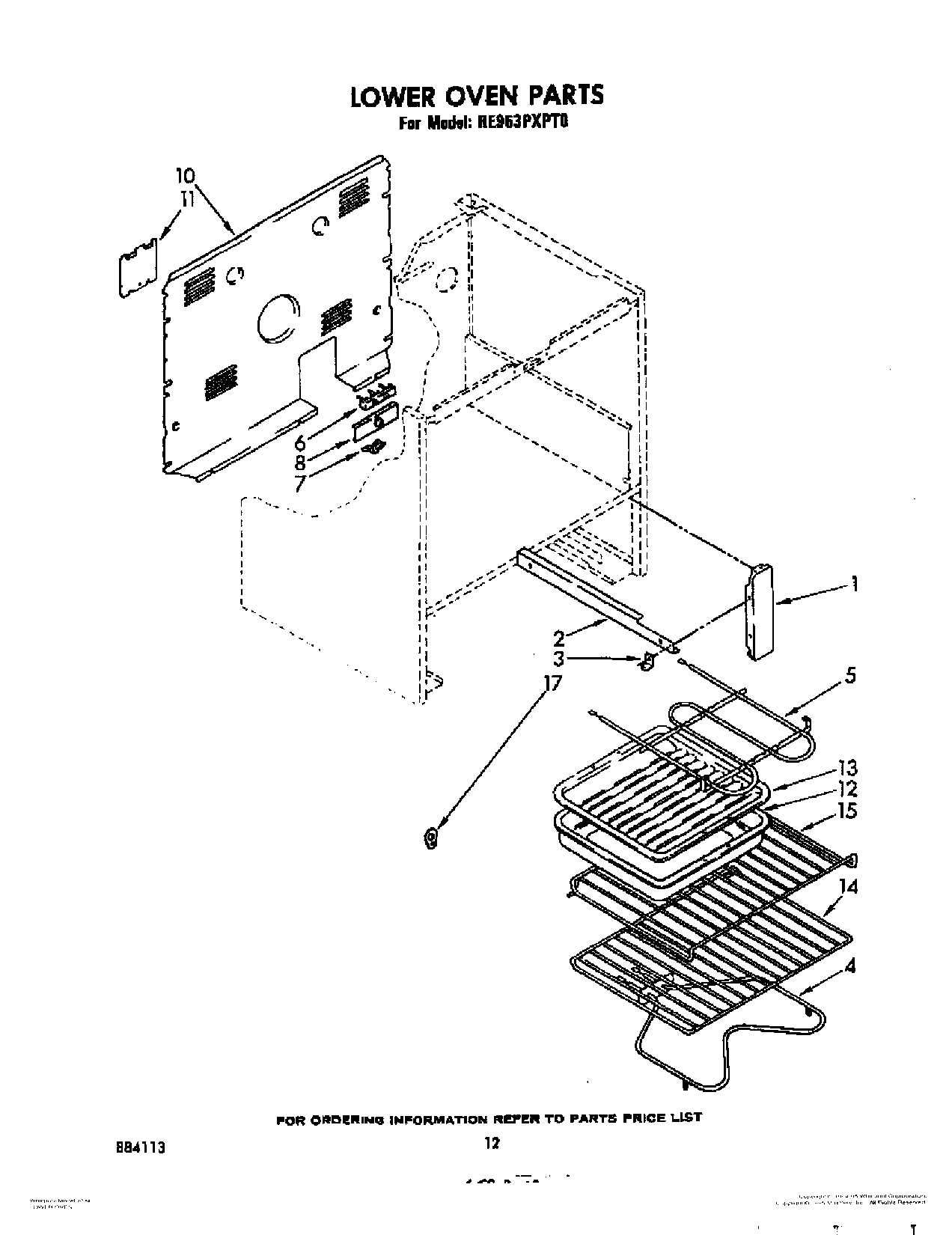

RE963PXPT0 07 – LOWER OVEN, LIT/OPTIONAL

RE963PXPT0 07 – LOWER OVEN, LIT/OPTIONAL

Written by

in

RE963PXPT0 07 – LOWER OVEN, LIT/OPTIONAL

Products

Position	Product
	Unit, Broil (208V)
	511873 Whirlpool Refrigerator Paint
	WPL LIT313358
	Golden Harvest (Uncut)
	WPL LIT313480
	WPL LIT313295
	Enamel, New Avocado (1 Qt. Uncut)
	Almond (Uncut)
	WPL LIT884113
	799344 Whirlpool Refrigerator Paint
	WPL ARI121363A
	Enamel, Coffee (1 Qt. Uncut)
1	Bracket, Mounting (2)
2	Rail R.H. (Includes Illus. 3)
2	rail l.h. (includes illus. 3)
3	Glide, Front (2)
4	ELMNT-BAKE
4	WP312309 Whirlpool Bake Element
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
5	Screw, 10-32 x 5/8 (4)
6	WP112432 Whirlpool Nut Assembly
6	WP8203546 Whirlpool Terminal Block
7	WPL 308498
7	Clip, Ground Wire
8	Bracket, Service
10	Cover, Rear
11	Cover, Service
11	SCREW
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	WPL 308172
17	Leveler (Thinner) (2oz.)
17	WPL 311982
17	1
17	Grease
17	Rotisserie Kit (RCK 81)
17	Screw, 10A x 1/2 (2) (Black)
17	Golden Harvest
17	Wire (14 Ga. 200 c Brown)
17	18 Ga. 80~c Rating (Red)
17	Wire (12 Ga. 150 c Black)
17	Wire, 25` Roll (Red 14 Ga.)
17	Wire, 25` Roll (Black 14 Ga.)
17	350930 Whirlpool White Spray Paint
17	FOIL, ALUMINUM OVEN (18“ X 25 )
17	WPW10208653 Whirlpool Insulation
17	WPL 799832
17	350942 Whirlpool Spray Paint
17	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
17	WP72107 Whirlpool Touchup
17	72017 Whirlpool Appliance Touch-Up Paint White
17	Wire, 25“ Roll (White 14 GA.)
17	285006 Whirlpool Spray
17	72109 Whirlpool Dacor Avocado Touch-Up Paint
17	Wire (14 Ga. 150 c Yellow)
17	Wire (14 Ga. 150 c Orange)
17	Wire (14 Ga. 150 c Green)
17	Wire (14 Ga. 150 c Brown)
17	Wire (14 Ga. 150 c Blue)
17	242831 Whirlpool Oven Wire
17	Touch-Up Oven (1 Oz.)
17	Paint, Spray 13 Oz. (Avocado)
17	paint, spray 13 oz. (coffee)
17	Paint, Touch-Up 1/2 Oz. (Coffee)
17	350956 Whirlpool Spray Assembly
