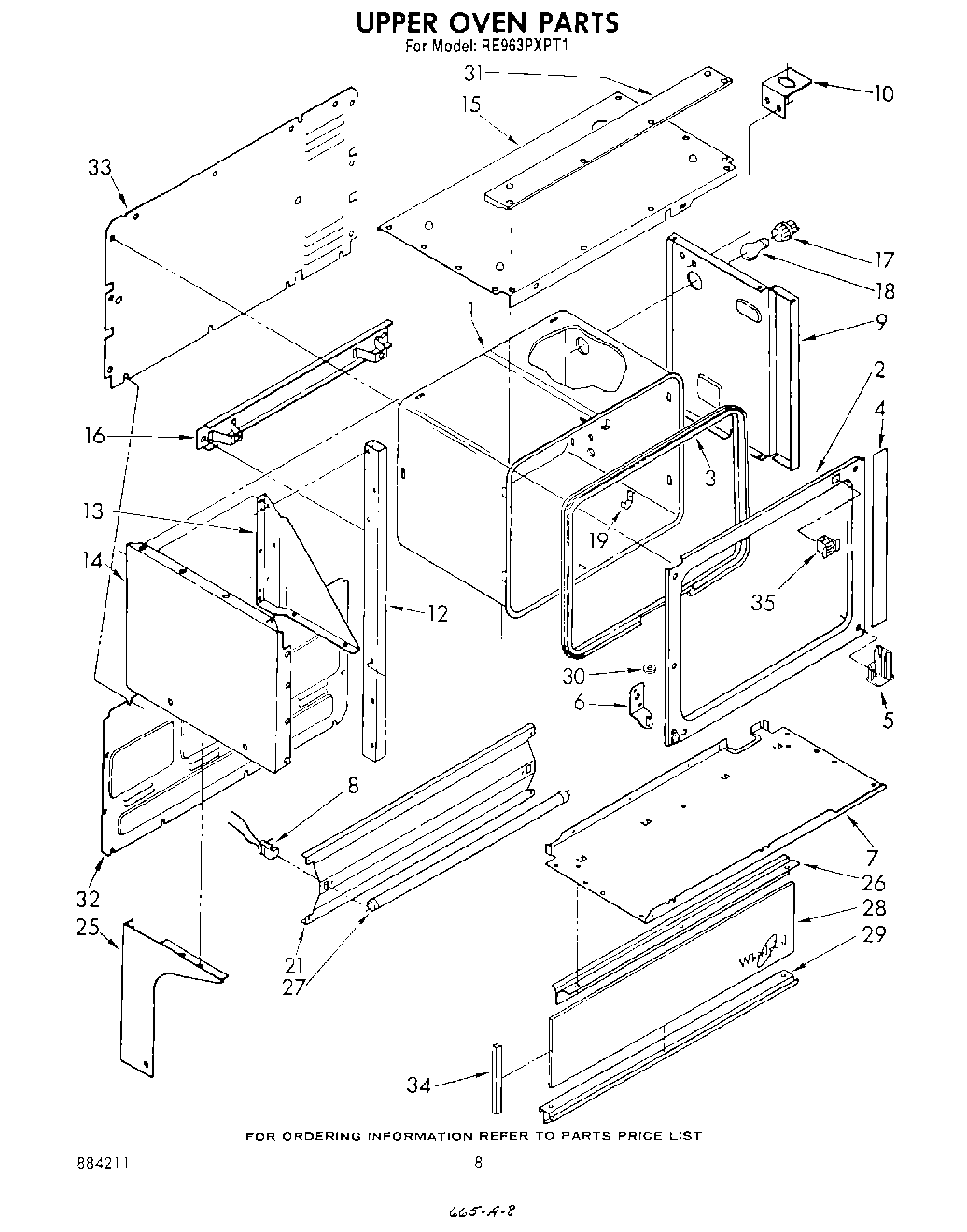

RE963PXPT1 05 – UPPER OVEN

Products

Position	Product
	Screw (10-12 x .875)
1	Oven (Continuous Clean)
2	Frame, Front
3	seal, door
4	shield, upper oven
5	latch plate (upper oven)
6	bracket, hinge
6	screw, 10-24 x 3/8 (2)
7	Bottom Panel
7	Channel, Rubber (4)
8	Socket Assembly L.H.
8	Socket Assembly R.H.
9	baffle
10	Bracket, Receptacle
12	Support, Tubing L.H.
12	Support, Tubing R.H.
13	Gusset, L.H.
13	Gusset, R.H.
14	panel, side l.h. (almond panel, side r.h.)
14	Panel, Side L.H. (Almond)
15	panel, top (screw, 10a x 3/8 (3))
15	Panel, Top (Almond)
16	bolt (2)
16	support, oven
16	Nut, Retainer (2)
17	Socket, Oven Light (Alt.)
17	Socket, Oven Light
17	Socket, Oven Light (Alt.)
18	RANGE ONLY 40W 120V APPL BULB
19	98005642 Whirlpool Clip
21	Panel, Backguard
25	WPL 330203
25	WPL 330197
25	WPL 246134
26	WPL 313320
27	WP95292 Whirlpool Fluorescent Light Bulb
28	WPL 313322
29	WPL 313321
29	WP965173 Whirlpool Dishwasher Screw
30	WPL 306615
31	WP488627 Whirlpool Refrigerator Screw
31	WPL 327916
31	WPL 312331
32	WPL 308112
33	WPL 309507
33	SCREW
34	WPL 313319
35	WPL 313793
