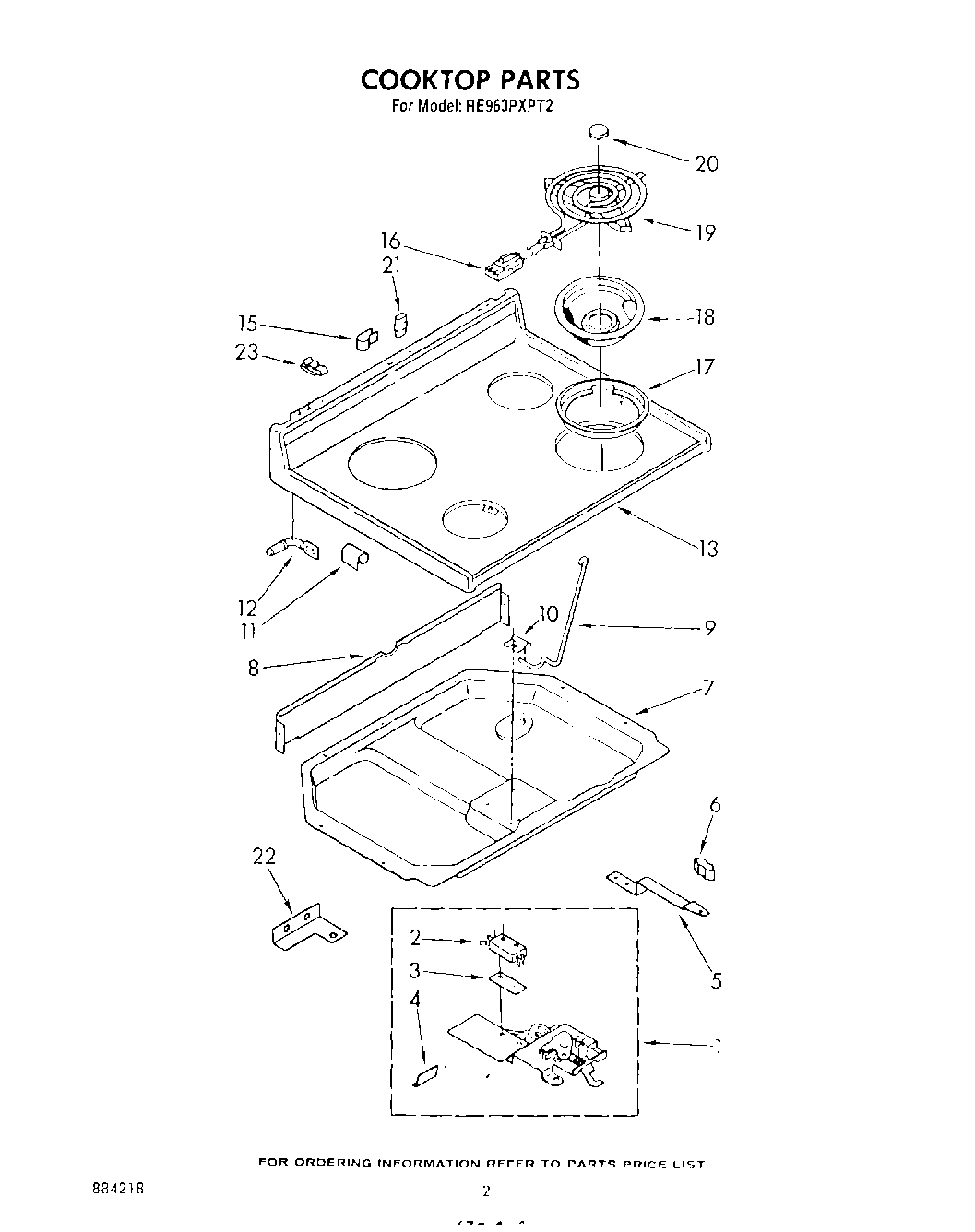

RE963PXPT2 02 – COOK TOP

RE963PXPT2 02 – COOK TOP

Written by

in

RE963PXPT2 02 – COOK TOP

Products

PositionProduct
WP660533 Whirlpool Oven 8" Surface Element
1Latch Assembly
2Safety Switch
2Screw
3Insulator, Switch
4WP313808 Whirlpool Screw
4Screw
4Shield, Latch
5WP488627 Whirlpool Refrigerator Screw
5Handle, Latch
5Screw
5Screw (3)
6Knob, Latch
7Burner Box
8Shield, Wiring
9Rod, Cooktop
10WP3390631 Whirlpool Screw
10Retainer, Cooktop
11Bracket, Cooktop (2)
12SCREW
12Pin, Cooktop (2)
13Cooktop (Chrome)
13WP308685 Whirlpool Microwave Screw
15WP308605 Whirlpool Refrigerator Clamp
15WP965173 Whirlpool Dishwasher Screw
16BURNER RECEPTACLE KIT
17W10854470 Whirlpool Trim Ring
17W10858781 Whirlpool Trim Ring
18W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
19WP660532 Whirlpool Oven Surface Element
20medallion
21WP75614 Whirlpool Connector
22Screw, 10A x 1/2 (2) (Black)
22WPL 312320
23Clip, Tube
