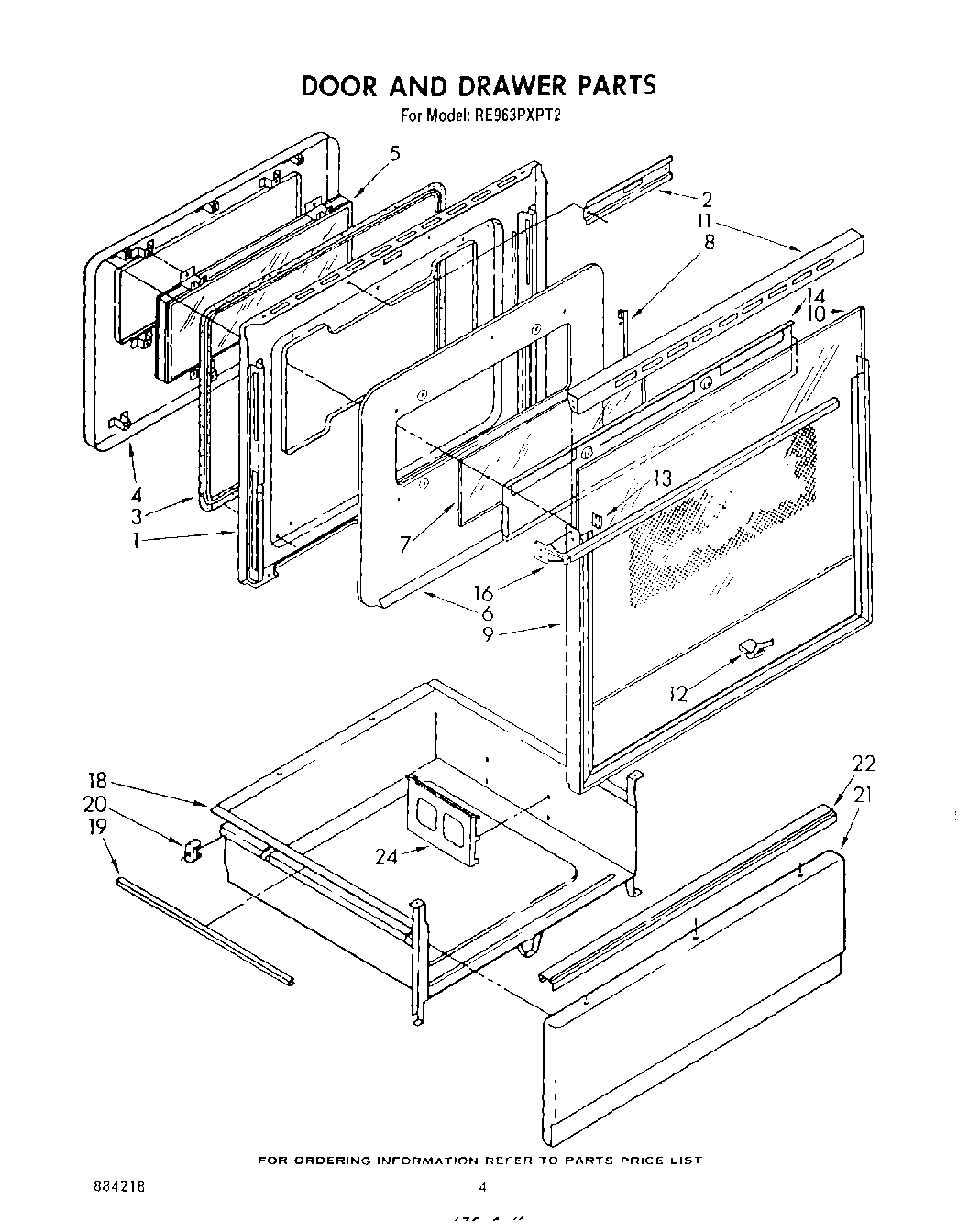

RE963PXPT2 03 – DOOR AND DRAWER
Written by
in
RE963PXPT2 03 – DOOR AND DRAWER
Products
Position
Product
1
Speed Nut (6)
1
Liner, Door
2
Channel, Latch
3
Seal, Fiberglass
4
Panel, Inner
5
Window Package
6
Retainer, Insulation
7
Glass (6.81“ x 18.31“)
8
Retainer, Glass (2)
9
frame, door 30“
10
Glass, Outer
11
Top, Door Frame
12
clip, glass (10)
13
screw (3)
14
Baffle, Heat
14
WP90296 Whirlpool Clip
16
WP355515 Whirlpool Screw
16
Handle, Oven Door
18
Drawer, Utility
19
Protector, Drawer (2)
20
Glide, Rear (2)
20
Screw, 10A x 1/2 (2) (Black)
21
Panel Drawer (Black)
21
WP488787 Whirlpool Refrigerator Screw
22
Handle, Drawer
22
WP488627 Whirlpool Refrigerator Screw
24
Rack, Literature
←
