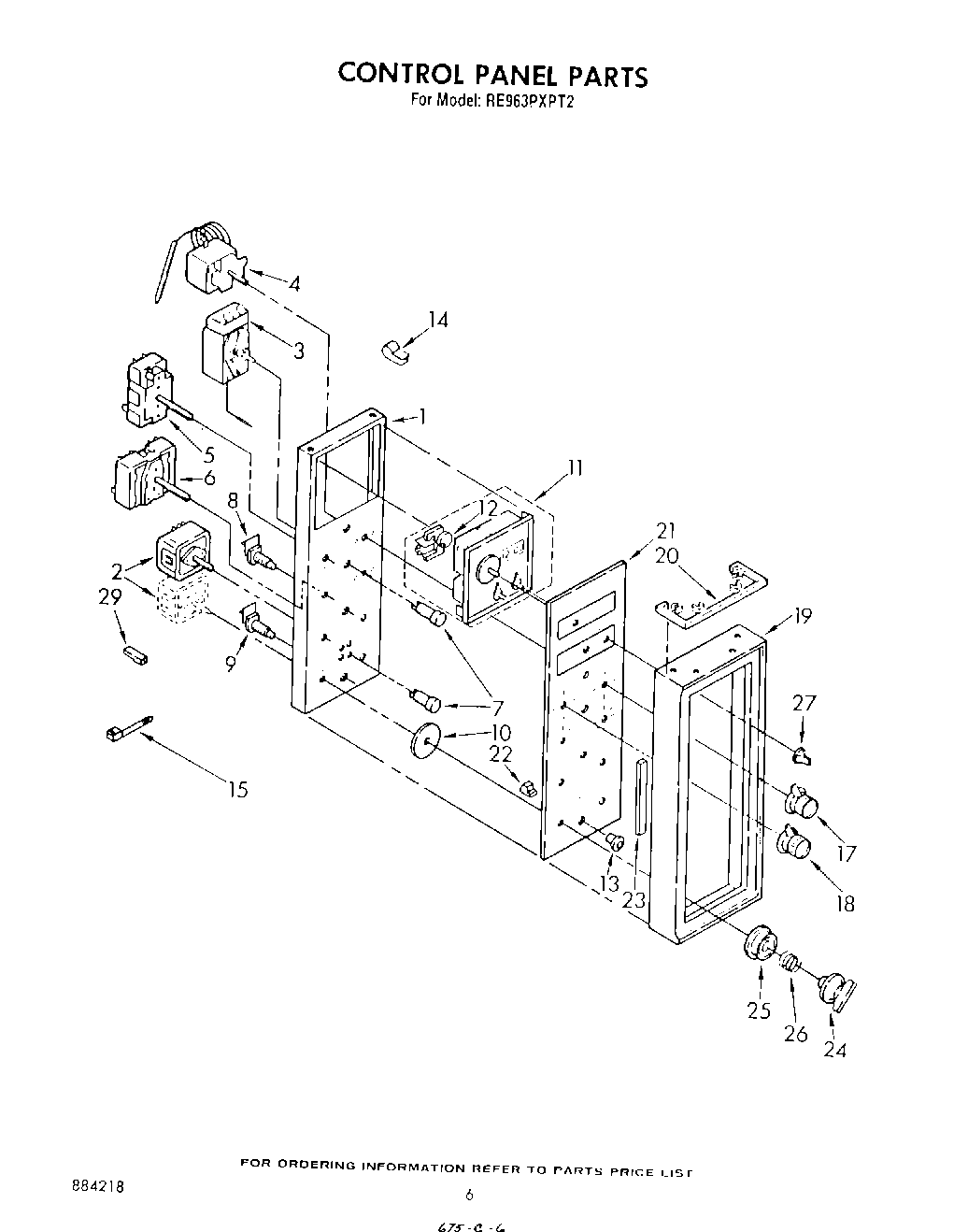

RE963PXPT2 04 – CONTROL PANEL

RE963PXPT2 04 – CONTROL PANEL

Written by

in

RE963PXPT2 04 – CONTROL PANEL

Products

PositionProduct
1WP3390631 Whirlpool Screw
1Panel, Control
2switch, infinite (4)
3Thermostat, Oven (Pyro)
4Thermostat (Upper Oven)
5Switch, Selector (4 Position)
6Screw, 8-32 x 3/16 (2)
6Switch, Selector (Pyro)
7Light, Indicator 250V (6)
8Switch, Fluorescent Light
9nut, 3/8 x 27
9Switch, Oven Light
10Skirt, Knob (4)
11Timer, Digital (Includes Illus. 12)
11SCREW
11WP488627 Whirlpool Refrigerator Screw
11WP313808 Whirlpool Screw
12Motor, Timer
13Bezel Switch (1)
14Strain Relief
15WPW10339879 Whirlpool Wire Tie
17Knob, Thermostat
18Knob, Selector
18Screw
18WP688805 Whirlpool Spring Clip
19Screw, 10A x 2
19Frame, Control Panel
20filler, control panel
20Screw,
21Glass, Control Panel
22retainer, glass (10)
23Seal, Foam
24Knob, Control (4)
25bezel control knob (4)
26spring, bezel (4)
27WP3169181 Whirlpool Knob
27Spring (3)
29Housing, Receptical
