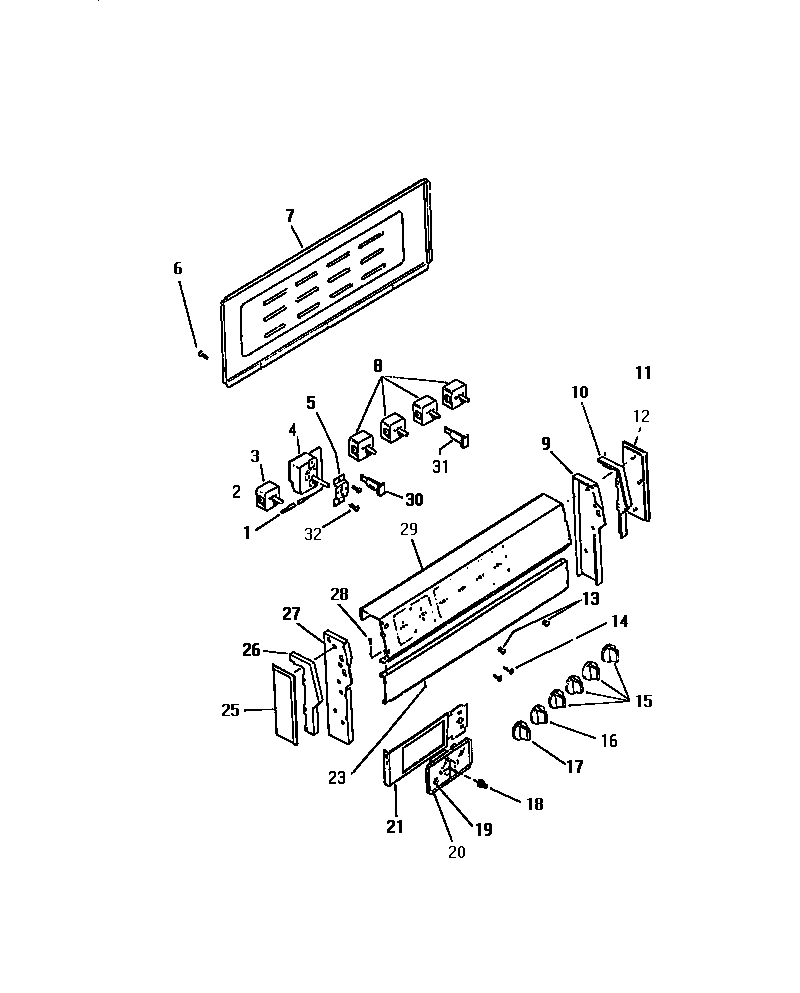

REC305CV0 02 – BACKGUARD

Products

Position	Product
1	WCI K1301788
3	SWITCH SELEC.
4	WCI K5132401
5	BRACKET
7	COVER, WIRE
8B	SWITCH-SURFACE UNIT (4)
8	5303935086 Frigidaire Oven Top Burner Switch Kit
9	SUPPORT-BACKGRD RH
10	WCI G5128105
11	NUT (3)
12	WCI G5128001
13	WCI K5139002
14	SCREW – THERMO BRACKET 6-32 X 3/16 (2)
17	KNOB OVEN SELECTOR
18	WCI K1167946
19	GLASS
20	WCI K5260301
21A	SCREW
21	BRACKET MOUNTING
23	WCI K5137604
25	WCI K5128002
26	WCI K5128106
27	WCI K5127702
28	08002868 Frigidaire 0 Screw Assembly
29	WCI K5265801
30	SIGNAL LIGHT – OVEN
31	SIGNAL LIGHT-SURF UNIT
32	SCREW
