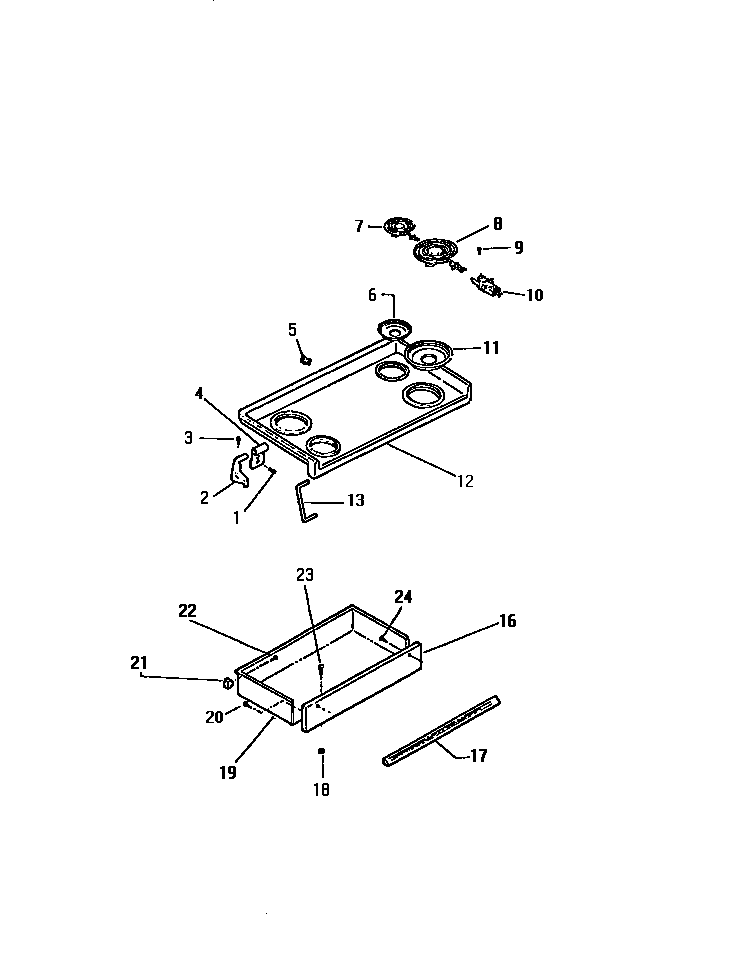

REC305CV0 03 – TOP/DRAWER

REC305CV0 03 – TOP/DRAWER

Written by

in

REC305CV0 03 – TOP/DRAWER

Products

PositionProduct
1WCI K1164550
2AWCI K1315630
2WCI K1315631
308002868 Frigidaire 0 Screw Assembly
5WCI K1315541
6316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
7318372210 Frigidaire Oven Range 6" 1250W Surface Element
85308011964 Frigidaire Surface Element P1
95308014215 Frigidaire Oven Screw
105303935058 Frigidaire Oven Burner Receptacle Kit
11316048413 Frigidaire Oven Range Chrome 8" Drip Bow
12WCI K5270110
13ROD
13ARETAINER
13BSCREW
16WCI K1325098
17HANDLE – DRAWER (CHROME)
185303013272 Frigidaire Oven Nut
19DRAWER
21GUIDE
24SCREW
