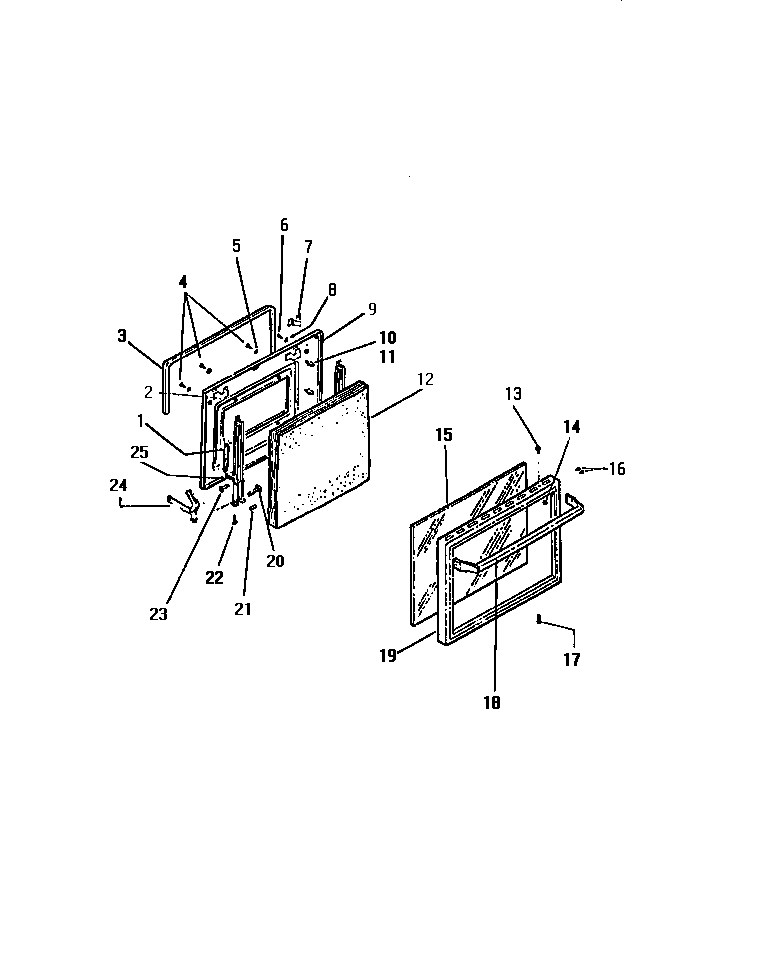

REC305CV0 04 – DOOR

Products

Position	Product
1	SPRING
2	SPACER (4)
3	GASKET (WITH CLIPS)
7	WCI K1309666
8	WASHER, PADDED
9	LINER, OVEN DOOR
10	BUMPER TOP (2)
11	BUMPER BTM
12	INSULATION
14	5303013272 Frigidaire Oven Nut
15	GLASS
16	SCREW
18	HANDLE ASSY (INCLUDES STANCHION)
18B	WCI K5026807
18A	STANCHION-HANDLE (2)
19	FRAME
20	AXLE
21	WCI K1309794
22	WCI K1164550
23	RIVET
24	ARM ASSY.
25	CHANNEL ASSY (COMPLETE W/ROLLER & STUD)
