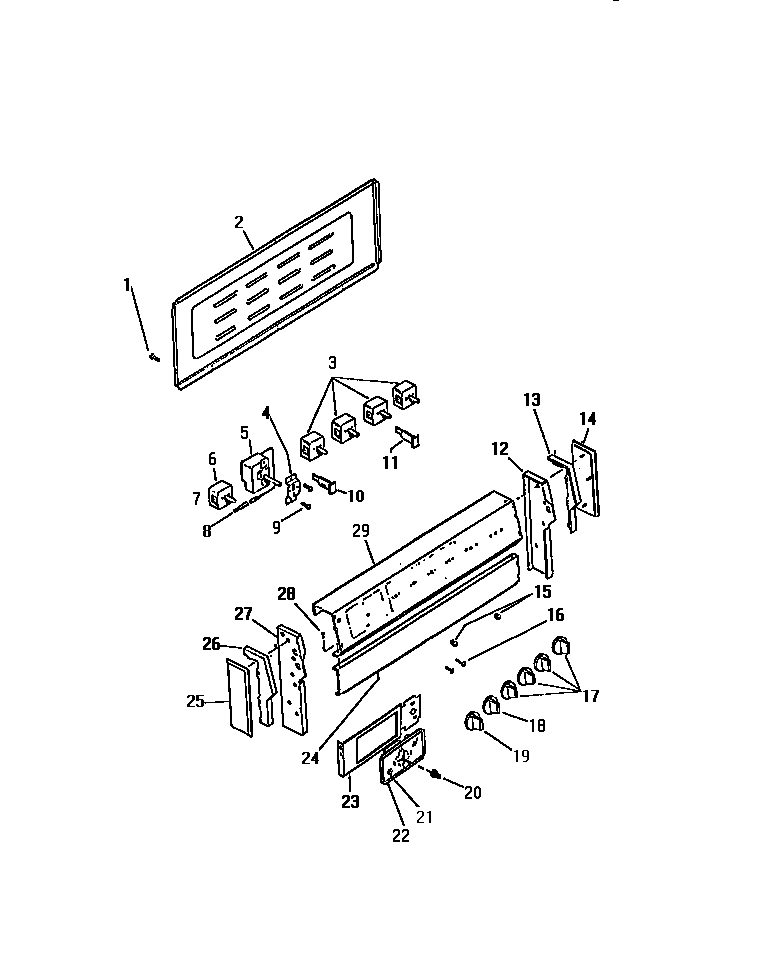

REC306CD0 02 – BACKGUARD

Products

Position	Product
2	COVER, WIRE
3	5303935086 Frigidaire Oven Top Burner Switch Kit
3B	SWITCH-SURFACE UNIT (4)
4	BRACKET
5	WCI K5132401
6	SWITCH SELEC.
8	WCI K1301788
9	SCREW
10	SIGNAL LIGHT, OVEN
11	SIGNAL LIGHT-SURF UNIT
12	SUPPORT-BACKGRD RH
13	WCI G5128105
14	WCI G5128001
14A	NUT (3)
15	WCI K5139002
16	SCREW – THERMO BRACKET 6-32 X 3/16 (2)
19	KNOB OVEN SELECTOR
20	WCI K1167945
21	WCI K1167946
22	WCI K5260301
23	BRACKET MOUNTING
23A	SCREW
24	PANEL BACKSPLASH, ALMOND
25	WCI K5128002
26	WCI K5128106
27	WCI K5127702
28	08002868 Frigidaire 0 Screw Assembly
29	WCI K5265801
