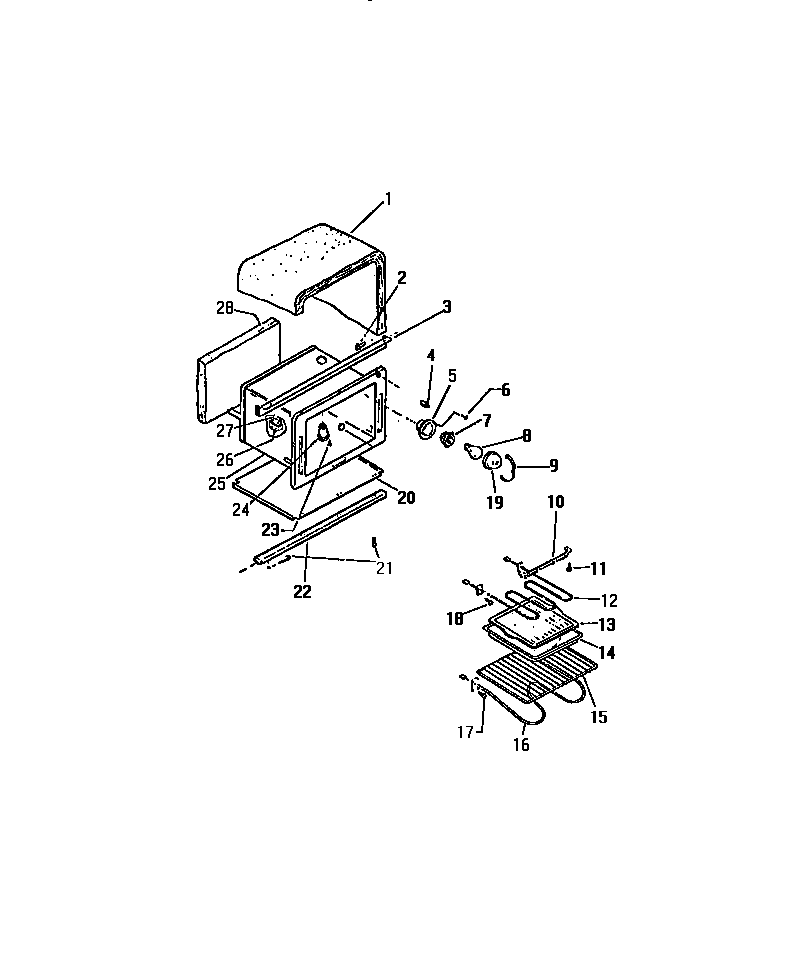

REC306CD0 05 – OVEN CAVITY

Products

Position	Product
1	INSULATION, WRAP
3	CHANNEL-OVEN SUPT
4	WCI K5294301
5	CUP, OVEN LT
7	316116400 Frigidaire Oven Light Socket
8	316538904 Frigidaire Oven Lamp Light
9	RETAINING WIRE
10	HANGER
12	5303051516 Frigidaire Broil Element
13	GRILLE, BROILER
14	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
15	RACK (2)
16	5303051519 Frigidaire Oven 2600W Bake Element
19	5304524341 Frigidaire Lens
20	WCI K1315107
21	SCREW
22	CHANNEL, OV. SUPT.
23	SCREW
24	VENT TUBE
25	OVEN LINER ASSEMBLY
26	BRACKET THERM. BULB
27	08002868 Frigidaire 0 Screw Assembly
28	WCI K1311328
