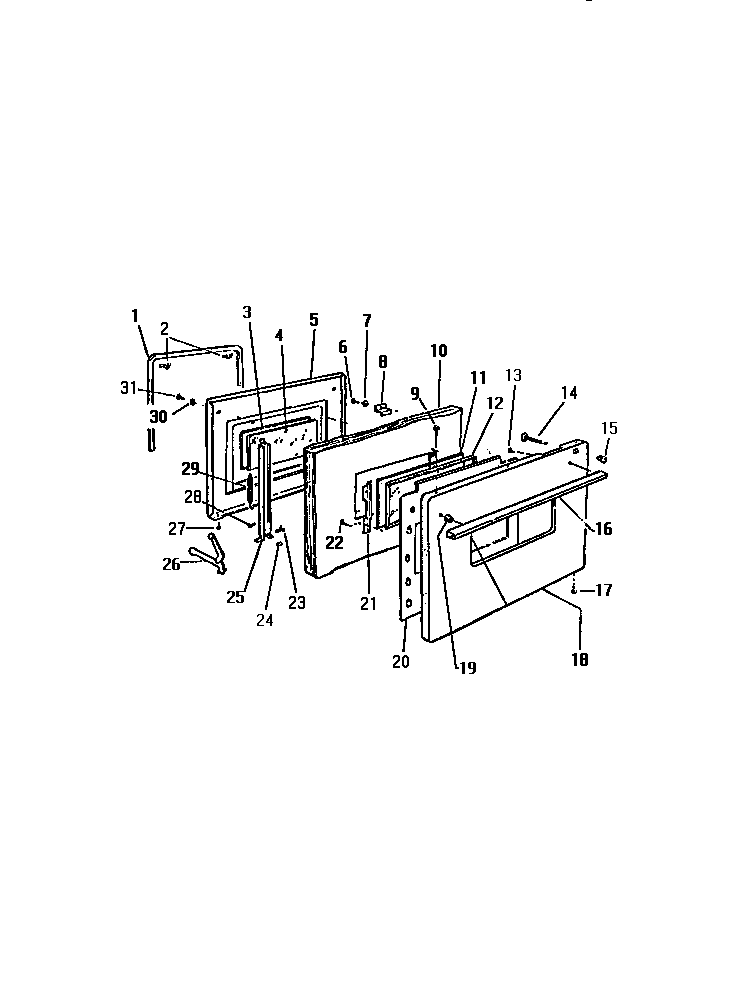

| 1 | GASKET (WITH CLIPS) |
| 2 | WCI K1309666 |
| 3 | WCI K1325686 |
| 4 | GLASS - INNER DOOR |
| 5 | WCI K1325601 |
| 8 | WCI K1325510 |
| 10 | WCI K1325829 |
| 11 | WCI K1325512 |
| 12 | MOULDING OUTER GLASS |
| 13 | WCI K5104201 |
| 13A | WCI K1099962 |
| 14 | WCI K1313983 |
| 15 | WCI K1310071 |
| 16 | WCI K1325029 |
| 16A | HANDLE - DRAWER (CHROME) |
| 18 | PANEL-DOOR (COFFEE) |
| 19 | SPACER (2) |
| 20 | WCI K1325509 |
| 22 | WCI K1325270 |
| 23 | AXLE |
| 24 | WCI K1309794 |
| 25 | CHANNEL ASSY (COMPLETE W/ROLLER & STUD) |
| 26 | ARM ASSY. |
| 28 | RIVET |
| 29 | SPRING |
| 30 | WASHER, PADDED |
| 31 | WCI K1164550 |
