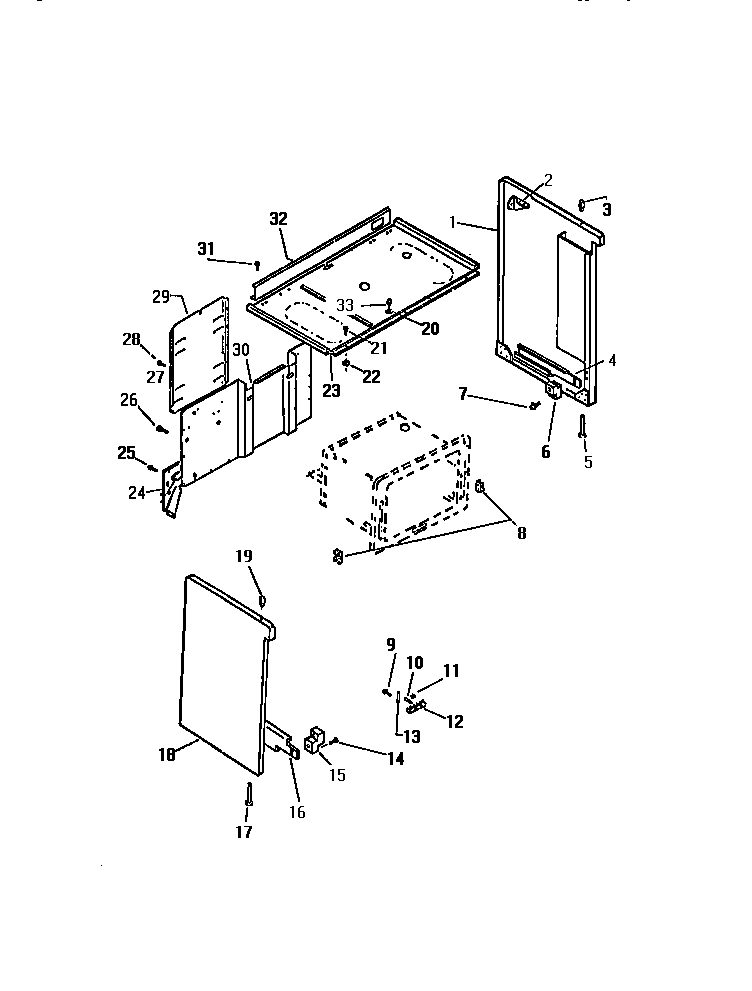

REC306CV0 06 – PANELS

Products

Position	Product
*94602	WCI K5011206
*94601	WCI K1313020
1	WCI K5024607
2	GUSSET, BACKGRD (2)
4	RAIL, DWR., RH
8	SPACER, RAIL
9	08002868 Frigidaire 0 Screw Assembly
10	SCREW
11	WCI K1266
12	5304409888 Frigidaire Oven Terminal Block with Hardware
13	STRAP-GROUND
14	SCREW
15	GUIDE
16	RAIL, DWR, LH
17	LEG
18	WCI K5024608
19	BUMPER
20	WASHER, PADDED
21	WCI KGM159909
22	5303013272 Frigidaire Oven Nut
23	WCI K5025802
24	WCI K1325114
24A	WCI G1325113
27	WCI K1099962
29	COVER, WIRE
30	BACK
32	WCI K5287902
