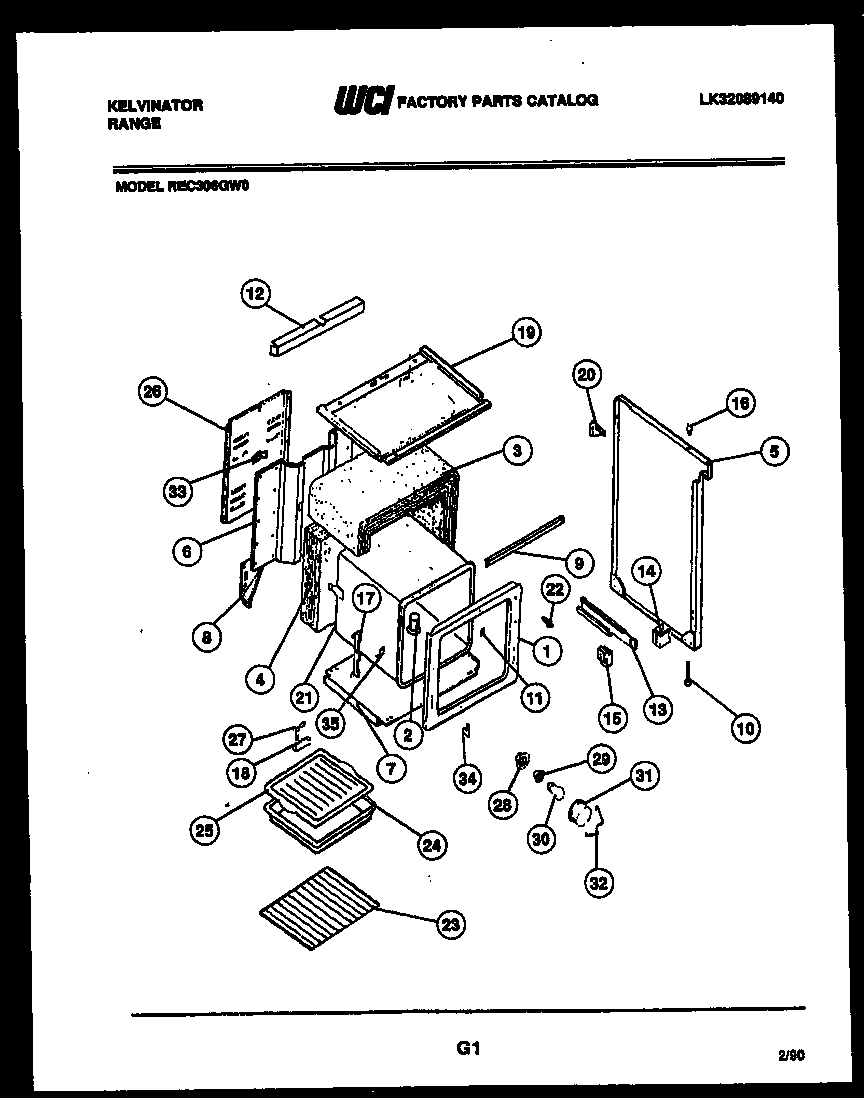

REC306GW0 07 – BODY PARTS

Products

Position	Product
*10694	CLIP-CAPILLARY (NON-ILLUSTRATED)
1	WCI 5303207446
2	WCI 08012541
3	INSULATION – OVEN WRAP
4	INSULATION-OVEN BACK
5	WCI 08012527
5A	WCI 08012528
6	PANEL-BACK
7	WCI 3206275
8A	WCI 3017482
8	WCI 3017481
9	WCI 5303207391
10	LEG, LEVELLER (4)
11	WCI 3202082
12	WCI 3205755
13A	RAIL, DRAWER LH
13	WCI 08015746
14	SPACER, DRAWER RAIL (2)
15	GUIDE-DRAWER FRNT (2)
16	BUMPER – COOKTOP (4)
17	WCI 3201631
18	5304409888 Frigidaire Oven Terminal Block with Hardware
19	WCI 08012542
20	GUSSET – BKGRD (2)
21	WCI 3205759
22	SWITCH, OVEN LIGHT
23	316067902 Frigidaire Oven Rack
24	WCI 3205232
25	WCI 3205234
26	COVER – WIRE
27	STRAP-GROUND
28	WCI 3051511
29	316116400 Frigidaire Oven Light Socket
30	316538904 Frigidaire Oven Lamp Light
31	5304524341 Frigidaire Lens
32	RETAINER – LENS
32A	ANTI-TIP KIT, (NON-ILLUSTRATED)
33	WCI 3016281
34	WCI 3019063
35	WCI 3201632
