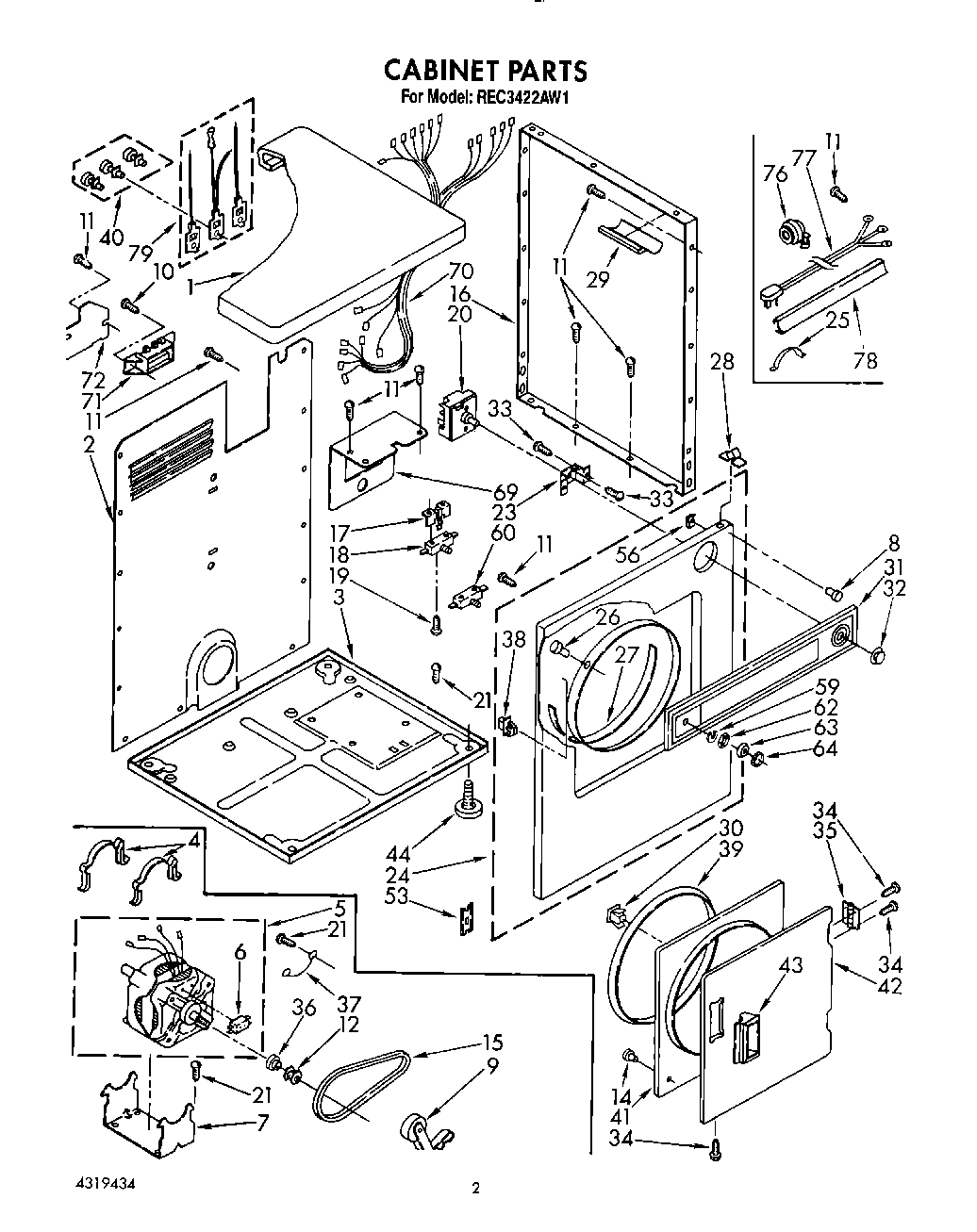

REC3422AL1 02 – SECTION

REC3422AL1 02 – SECTION

Written by

in

REC3422AL1 02 – SECTION

Products

PositionProduct
1345703 Whirlpool White Maintop
1Top (Almond)
2Panel, Rear (240 Volt)
3WP348726 Whirlpool Base Assembly
4WP660658 Whirlpool Clamp
6279827 Whirlpool Dryer Drive Motor
7696541 Whirlpool Base
8Rivet, Plastic (4)
9WP691366 Whirlpool Dryer Idler Pulley Assembly
10WP489069 Whirlpool Compactor Screw
11SCREW
12W10837625 Whirlpool Dryer Motor Pulley
14238614 Whirlpool Bumper Hinge
153394652 Whirlpool Drum Belt
16Panel, Side (Almond)
16Panel, Side (White)
17WP691581 Whirlpool Actuator
18W10820036 Whirlpool Door Switch Kit
19WP98129 Whirlpool Screw
20Timer, 60 Hz.
21WP3390631 Whirlpool Screw
23348171 Whirlpool Bracket
24280044 Whirlpool Panel
24Front Panel Assembly (xAlmond)
258528351 Whirlpool Clip
26279220 Whirlpool Clip
27279264 Whirlpool Bearing and Seal Kit
28WP345670 Whirlpool Lock
29Protector, Support (11 1/2 “)
30WP3389441 Whirlpool Door Catch
31Panel, Control
32Timer Knob & Skirt Assembly
33303776 Whirlpool Dishwasher Screw
34WP694091 Whirlpool Screw
35WP348023 Whirlpool Hinge
36WP3393657 Whirlpool Belt Retainer
37Wire, Ground
38279570 Whirlpool Dryer Door Latch Kit
39W11613302 Whirlpool Door Seal
40279393 Whirlpool Terminal Block Screw and Nut Kit
41Door, Rear
42Door, Front (Almond)
42Door, Front (White)
43Handle, Door (Almond)
43WP3405184 Whirlpool White Door Handle
44WP233550 Whirlpool Leveling Feet
53W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
56WP98234 Whirlpool Nut
59Lockwasher
60Switch, Push-To-Start
62Nut, Hex
63Ring, Trim
64Nut, Knurled
69279304 Whirlpool Block Terminal
70Harness, Wiring
71279320 Whirlpool Dryer Rear Terminal Block Kit
72W11736322 Whirlpool Cover Assembly
76W11712577 Whirlpool Clip
77PT220L Whirlpool Dryer Power Cord
78WPL 686768
78686770 Whirlpool Support Bracket
79279318 Whirlpool Terminal
