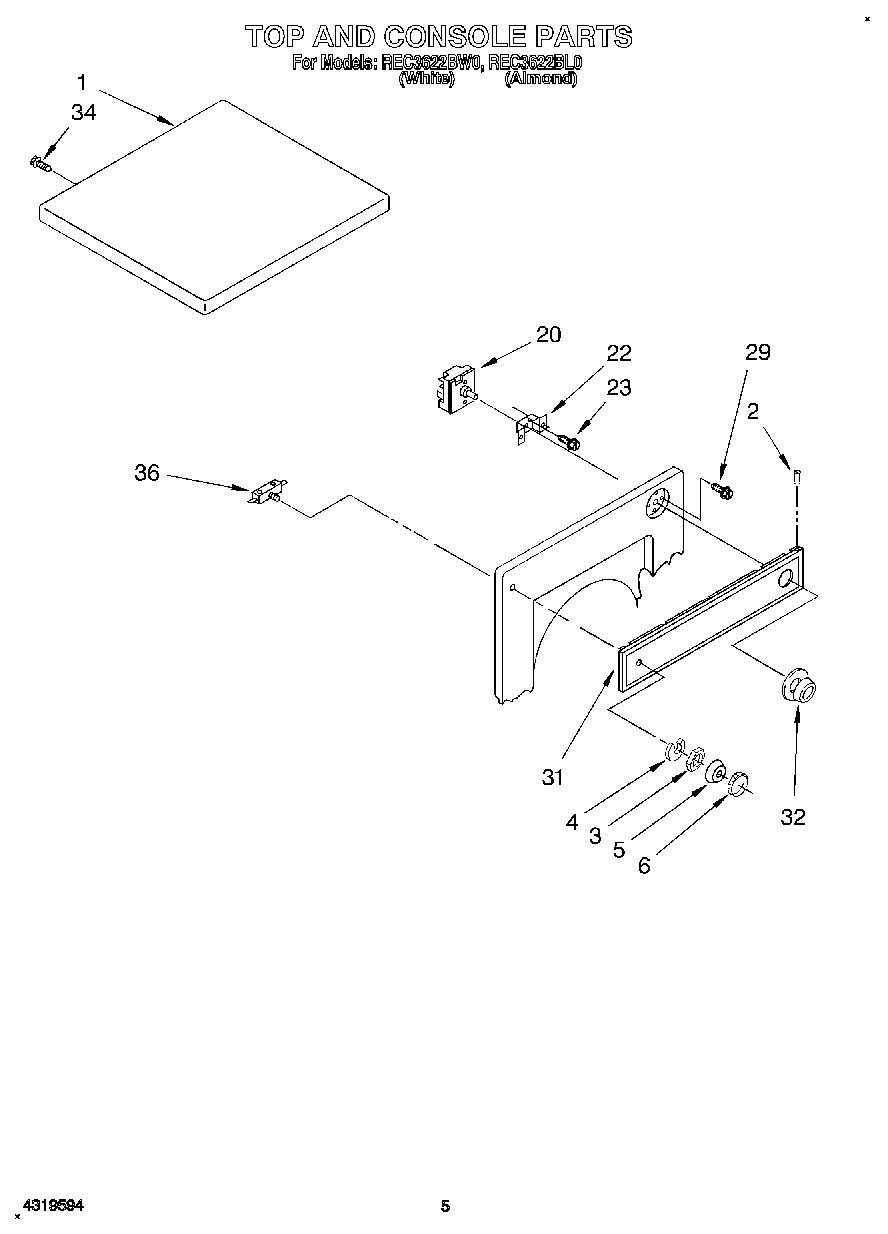

REC3622BL0 03 – SECTION

Products

PositionProduct
1Top (Almond)
1345703 Whirlpool White Maintop
2Rivet, Plastic (4)
3Nut, Hex
4Lockwasher
5Ring, Trim
6Nut, Knurled
20WP8563882 Whirlpool Timer Assembly
22348171 Whirlpool Bracket
23303776 Whirlpool Dishwasher Screw
29WPW10139210 Whirlpool Screw
31Panel, Control
32Timer Knob & Dial
34SCREW
36Switch, Push-To-Start
