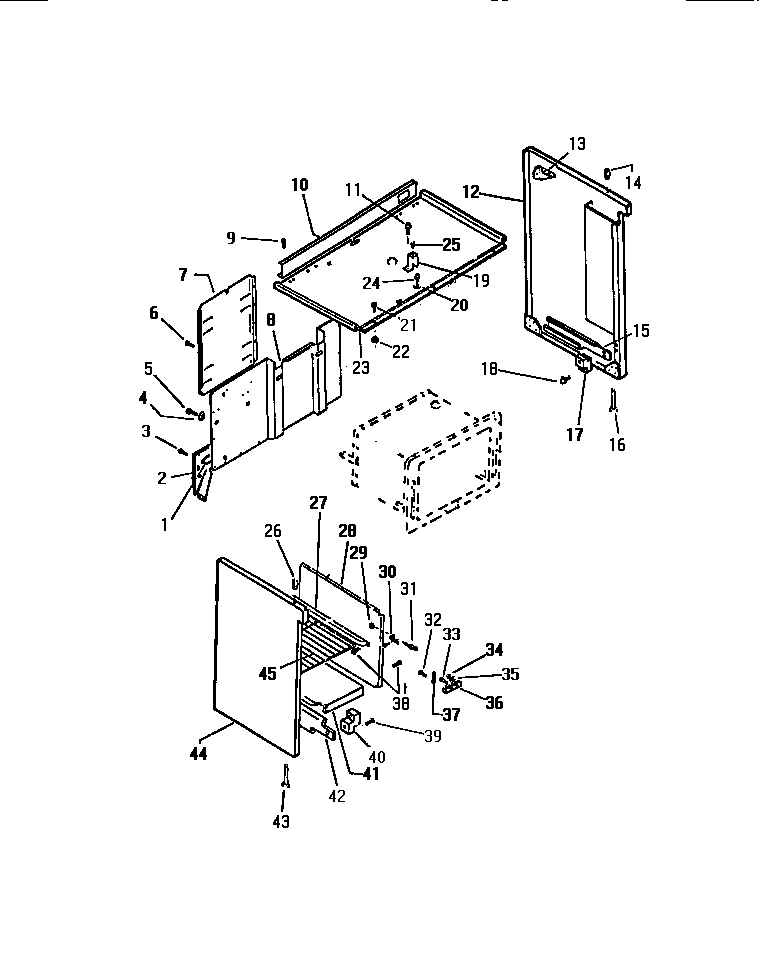

REC406CD0 06 – PANELS

Products

Position	Product
*75884	WCI K5011206
*75883	WCI K1313020
1	WCI K1307085
2	GUSSET, RH
2A	GUSSET REAR, LH
4	WCI K1099962
7	COVER, WIRE
8	BACK, RANGE
10	SHIELD, WIRING
12	END PANEL, RH, ALMOND
13	GUSSET, BACKGRD (2)
15	RAIL, DWR., RH
17	WCI K1312516
19	WCI K1313861
20	WASHER, PADDED
21	SCREW
22	5303013272 Frigidaire Oven Nut
23	WCI K1323564
25	BUMPER
26	WCI K1307110
27	WCI K1315199
28	WCI K5157802
29	WCI KGM271166
30	WCI K5138301
31	WCI K1324043
32	08002868 Frigidaire 0 Screw Assembly
34	WCI K1266
35	WCI K1312074
36	5304409888 Frigidaire Oven Terminal Block with Hardware
37	STRAP-GROUND
39	SCREW
40	GUIDE
41	WCI K1315129
42	RAIL, DWR, LH
43	LEG
44	END PANEL, LH, ALMOND
45	WCI K1311283
