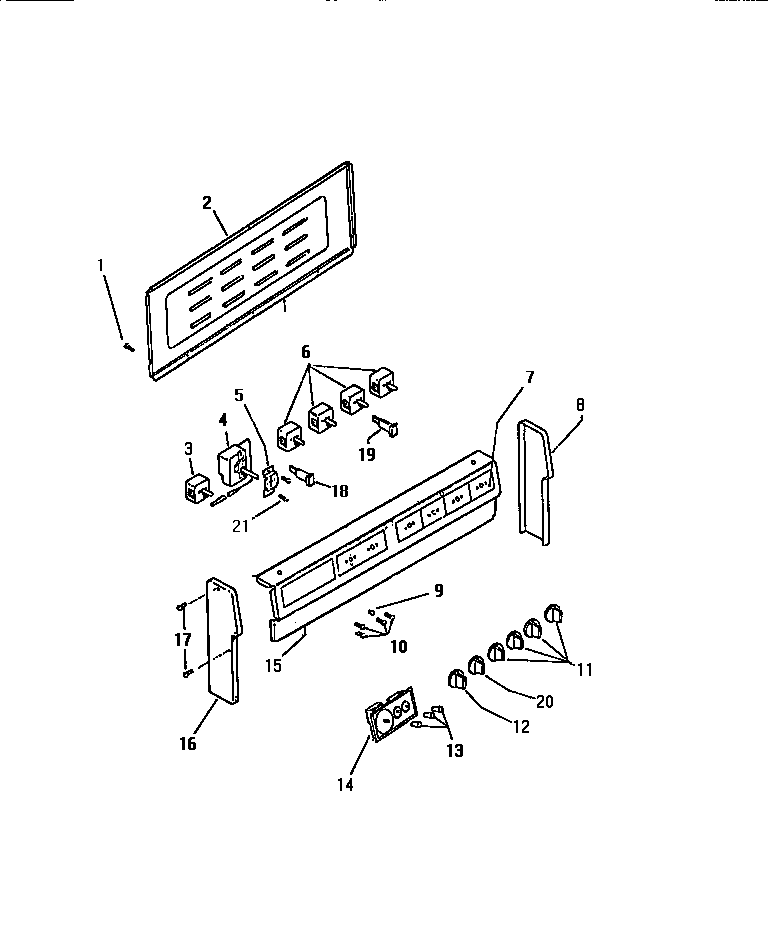

REC406CF0 02 – BACKGUARD

Products

Position	Product
*75881	WCI K1155856
*75880	WCI K1167984
*75882	WCI K1301788
1	08002868 Frigidaire 0 Screw Assembly
2	WCI K1315123
3	WCI K5146703
4	WCI K5275501
5	BRACKET
6B	SWITCH-SURFACE UNIT (4)
6	5303935086 Frigidaire Oven Top Burner Switch Kit
7	WCI K5158101
8	WCI K1311947
9	LENS
12	WCI K1325014
14	WCI K1167946
15	WCI K5158002
16	WCI K1311948
17	SCREW, END CAP MOUNTING (4)
18	WCI K1324770
19	WCI K1322676
20	KNOB OVEN SELECTOR
21	SCREW – THERMO BRACKET 6-32 X 3/16 (2)
