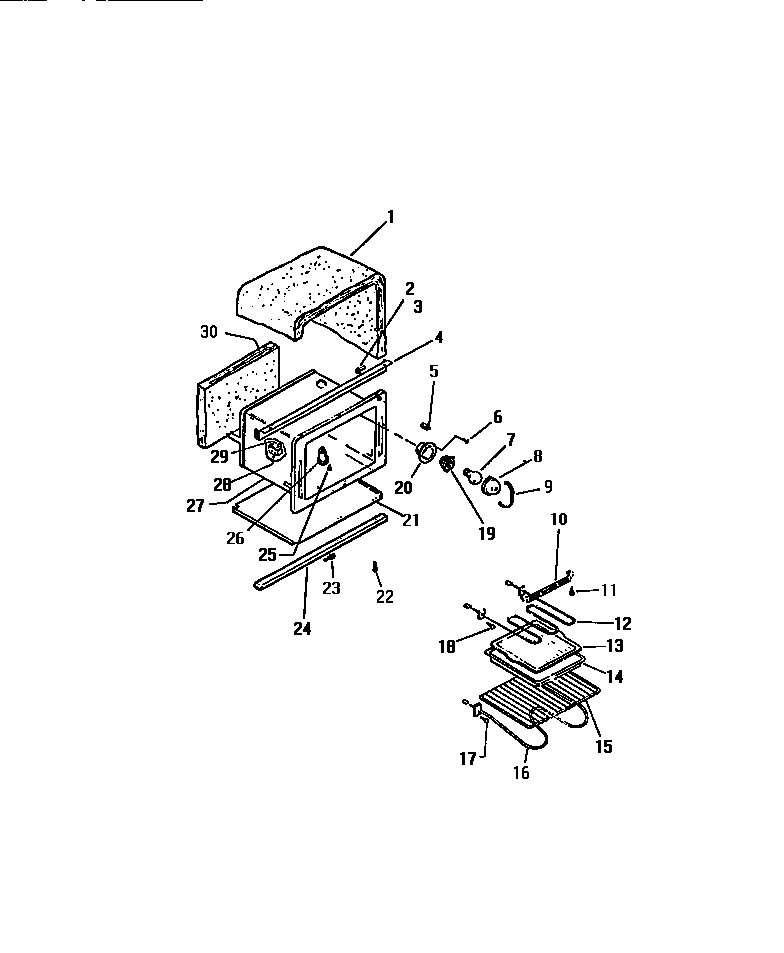

REC406CF0 05 – OVEN CAVITY

REC406CF0 05 – OVEN CAVITY

Written by

in

REC406CF0 05 – OVEN CAVITY

Products

PositionProduct
1INSULATION, WRAP
3WCI K5312501
4WCI K5048203
5WCI K5294301
7316538904 Frigidaire Oven Lamp Light
85304524341 Frigidaire Lens
9RETAINING WIRE
10HANGER
125303051516 Frigidaire Broil Element
13GRILLE, BROILER
145304442087 Frigidaire Range Wall Oven Broil Pan and Insert
15RACK (2)
165303051519 Frigidaire Oven 2600W Bake Element
19316116400 Frigidaire Oven Light Socket
20CUP, OVEN LT
21WCI K1315107
23SCREW
24WCI K1315113
25SCREW
26WCI K1311218
27WCI K5024702
28BRACKET THERM. BULB
2908002868 Frigidaire 0 Screw Assembly
30INSULATION, BACK
