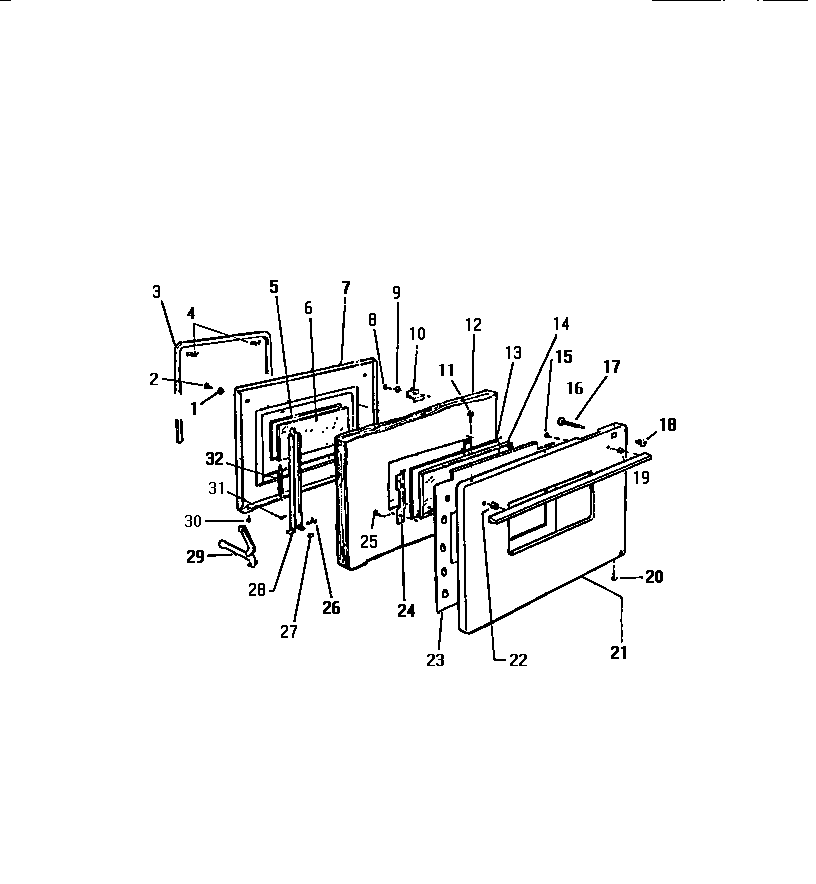

| 3 | WCI K1311547 |
| 4 | WCI K1309666 |
| 5 | WCI K1325686 |
| 6 | GLASS - INNER DOOR |
| 7 | WCI K1325502 |
| 9 | WASHER, PADDED |
| 10 | WCI K1325510 |
| 12 | WCI K1325629 |
| 13 | WCI K1325512 |
| 14 | MOULDING OUTER GLASS |
| 15 | WCI K5104201 |
| 16 | WCI K1099962 |
| 17 | WCI K1313983 |
| 18 | WCI K1310071 |
| 19 | HANDLE - DRAWER (CHROME) |
| 21 | PANEL EXT.-OVEN DOOR, WHEAT |
| 22 | SPACER (2) |
| 23 | WCI K1325509 |
| 24 | WCI K1325270 |
| 26 | AXLE |
| 27 | WCI K1309794 |
| 28A | CHANNEL ASSY (COMPLETE W/ROLLER & STUD) |
| 28 | WCI K1311515 |
| 29 | ARM ASSY. |
| 30 | WCI K1164550 |
| 31 | RIVET |
| 32 | SPRING (2) |
