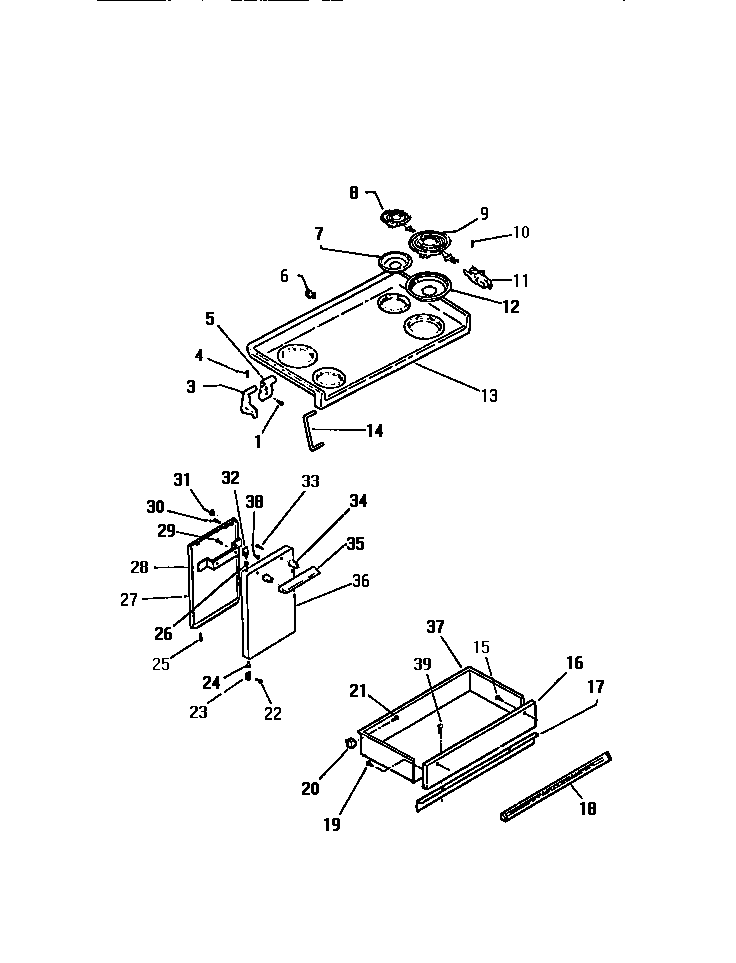

REC406CV0 03 – TOP/DOOR/DRAWER

REC406CV0 03 – TOP/DOOR/DRAWER

Written by

in

REC406CV0 03 – TOP/DOOR/DRAWER

Products

PositionProduct
3WCI K1315630
3AWCI K1315631
5WCI K1315632
6WCI K1315541
7316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
8318372210 Frigidaire Oven Range 6" 1250W Surface Element
95308011964 Frigidaire Surface Element P1
105308014215 Frigidaire Oven Screw
115303935058 Frigidaire Oven Burner Receptacle Kit
12316048413 Frigidaire Oven Range Chrome 8" Drip Bow
13WCI K1319057
14ROD
16WCI K1322711
17WCI K1312503
18HANDLE, CHROME
20WCI K1315217
21SCREW
23WCI K1311758
26WCI K1306686
27WCI K5048001
28WCI K1318024
29WCI K1164550
3008002868 Frigidaire 0 Screw Assembly
31WCI K1310826
32WCI K5044902
33WCI K5104201
34SPACER (2)
35WCI K5034101
36WCI K1317748
37WCI K1315211
38SCREW, END CAP MOUNTING (4)
39131243700 Frigidaire Screw
