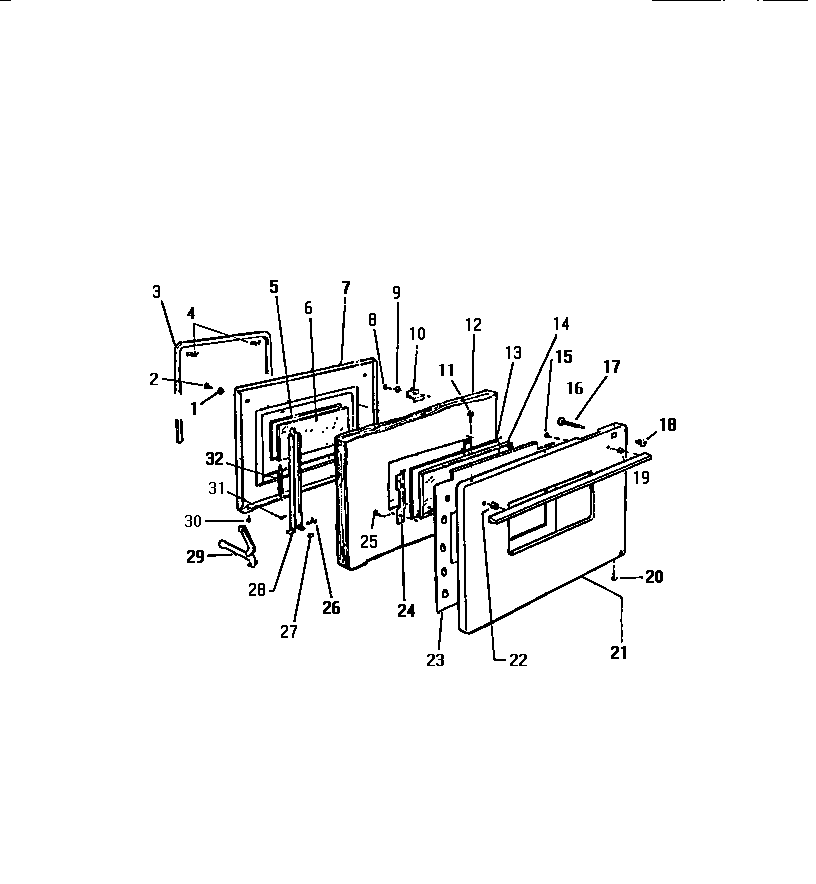

REC406CW0 04 – DOOR

Products

Position	Product
3	WCI K1311547
4	WCI K1309666
5	WCI K1325686
6	GLASS - INNER DOOR
7	WCI K1325502
9	WASHER, PADDED
10	WCI K1325510
12	WCI K1325629
13	WCI K1325512
14	MOULDING OUTER GLASS
15	WCI K5104201
16	WCI K1099962
17	WCI K1313983
18	WCI K1310071
19	HANDLE - DRAWER (CHROME)
21	WCI K1325494
22	SPACER (2)
23	WCI K1325509
24	WCI K1325270
26	AXLE
27	WCI K1309794
28	WCI K1311515
28A	CHANNEL ASSY (COMPLETE W/ROLLER & STUD)
29	ARM ASSY.
30	WCI K1164550
31	RIVET
32	SPRING (2)
