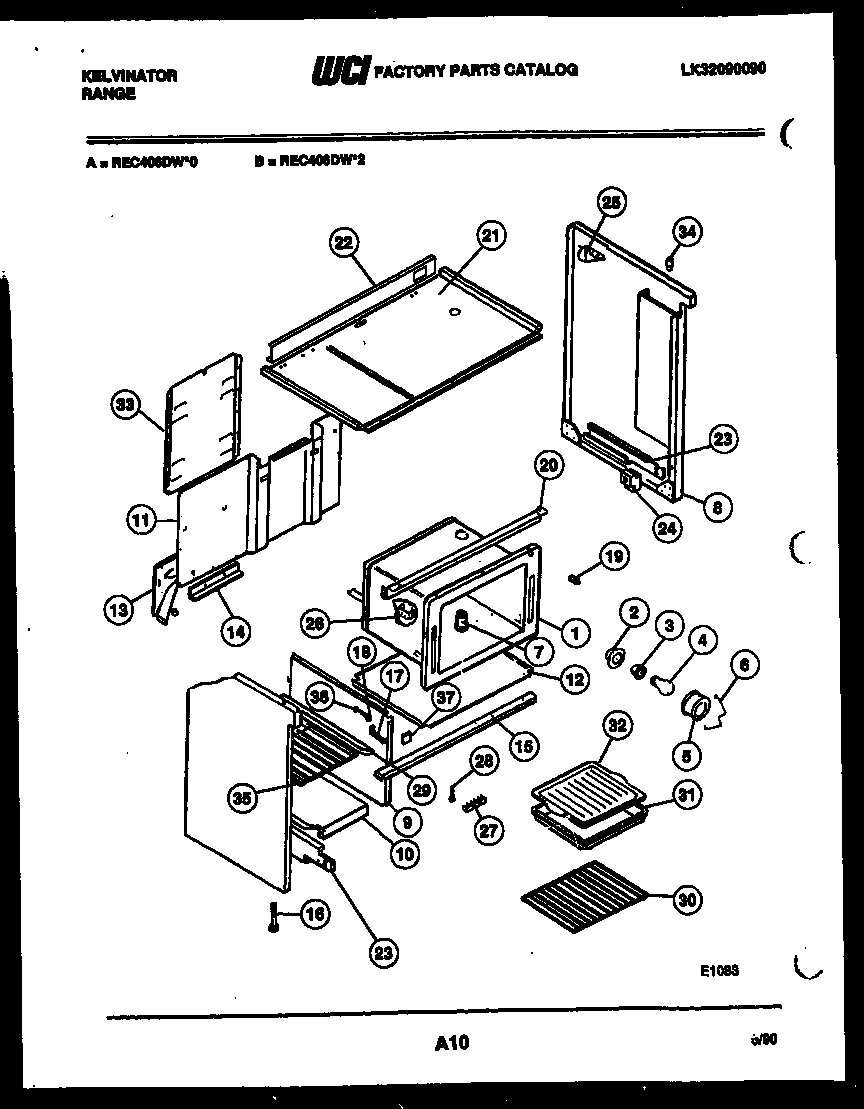

REC406DD0 04 – BODY

Products

Position	Product
2	WCI 3051511
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	5304524341 Frigidaire Lens
6A	INSULATION – OVEN WRAP
6	RETAINER-LENS
7A	INSULATION
7	TUBE – OVEN VENT
8	SIDE PANEL RH-ALMD
8A	SIDE PANEL LH-ALMD
9	PARTITION – CENTER
10	BOTTOM COMPLETE
11	WCI 08015772
12	PNL – BOTTOM
13A	GUSSET – REAR (2)
14	WCI 5301307085
15	Channel,oven support ,front
16	SCREW-LEVELING (4)
17	BRACKET, DOOR STRIKE
18	WCI 08011945
19	WCI 5301314211
20	WCI 5305048203
21	WCI 5301317855
22	WCI 5305287906
23A	RAIL, DRAWER LH
23	WCI 5308015746
24	GUIDE-DRAWER FRNT (2)
25	GUSSET – BKGRD (2)
26	BRACKET-THERMO BULB (2)
27	5304409888 Frigidaire Oven Terminal Block with Hardware
28	WCI K530145190
29	RAIL – COMPL RACK (2)
30	316067902 Frigidaire Oven Rack
31	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
32	WCI 3203164
33	WIRE, COVER
34	BUMPER, COOKTOP (4)
35	RACK – COMPLETE
36	WCI KGM110924
