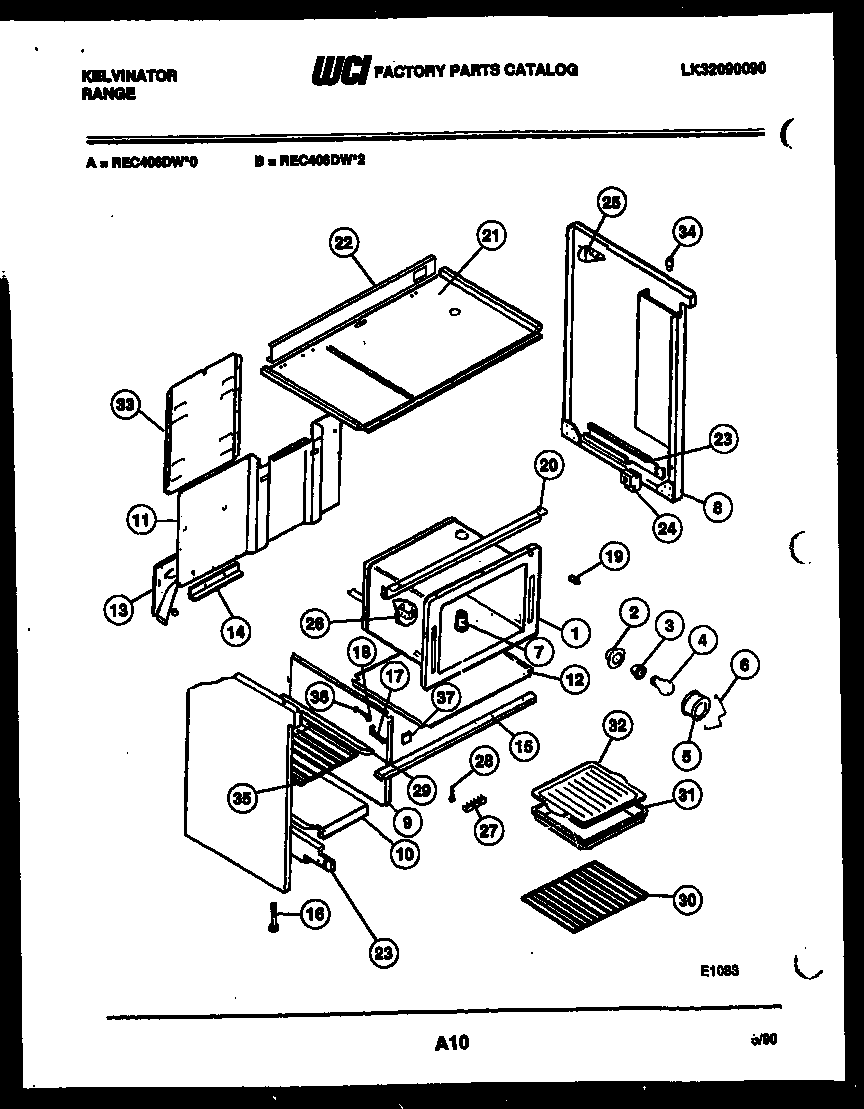

REC406DD2 04 – BODY

Products

Position	Product
*40402	WCI 3934058
2	HOUSING – LIGHT
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	5304524341 Frigidaire Lens
6	RETAINER-LENS
6A	INSULATION – OVEN WRAP
7	TUBE – OVEN VENT
7A	INSULATION
8A	SIDE PANEL LH-ALMD
8	SIDE PANEL RH-ALMD
9	PARTITION – CENTER
10	BOTTOM COMPLETE
11	WCI 3204827
12	WCI 3203574
13A	WCI 3204823
13	WCI 3204822
14	WCI 5301307085
15	Channel,oven support ,front
16	SCREW-LEVELING (4)
19	WCI 5301314211
20	WCI 5305048203
21A	WCI 08011947
22	WCI 5305287906
23	GLIDE – DWR RH
23A	GLIDE – DWR LH
24	GUIDE-DRAWER FRNT (2)
25	GUSSET – BKGRD (2)
26	BRACKET-THERMO BULB (2)
27	5304409888 Frigidaire Oven Terminal Block with Hardware
28	WCI K530145190
29	RAIL – COMPL RACK (2)
30	316067902 Frigidaire Oven Rack
31	WCI 5303207208
32	WCI 5303019066
33	PANEL – WIRE COVER
34	BUMPER, COOKTOP (4)
35	RACK – COMPLETE
37	WCI 3204318
