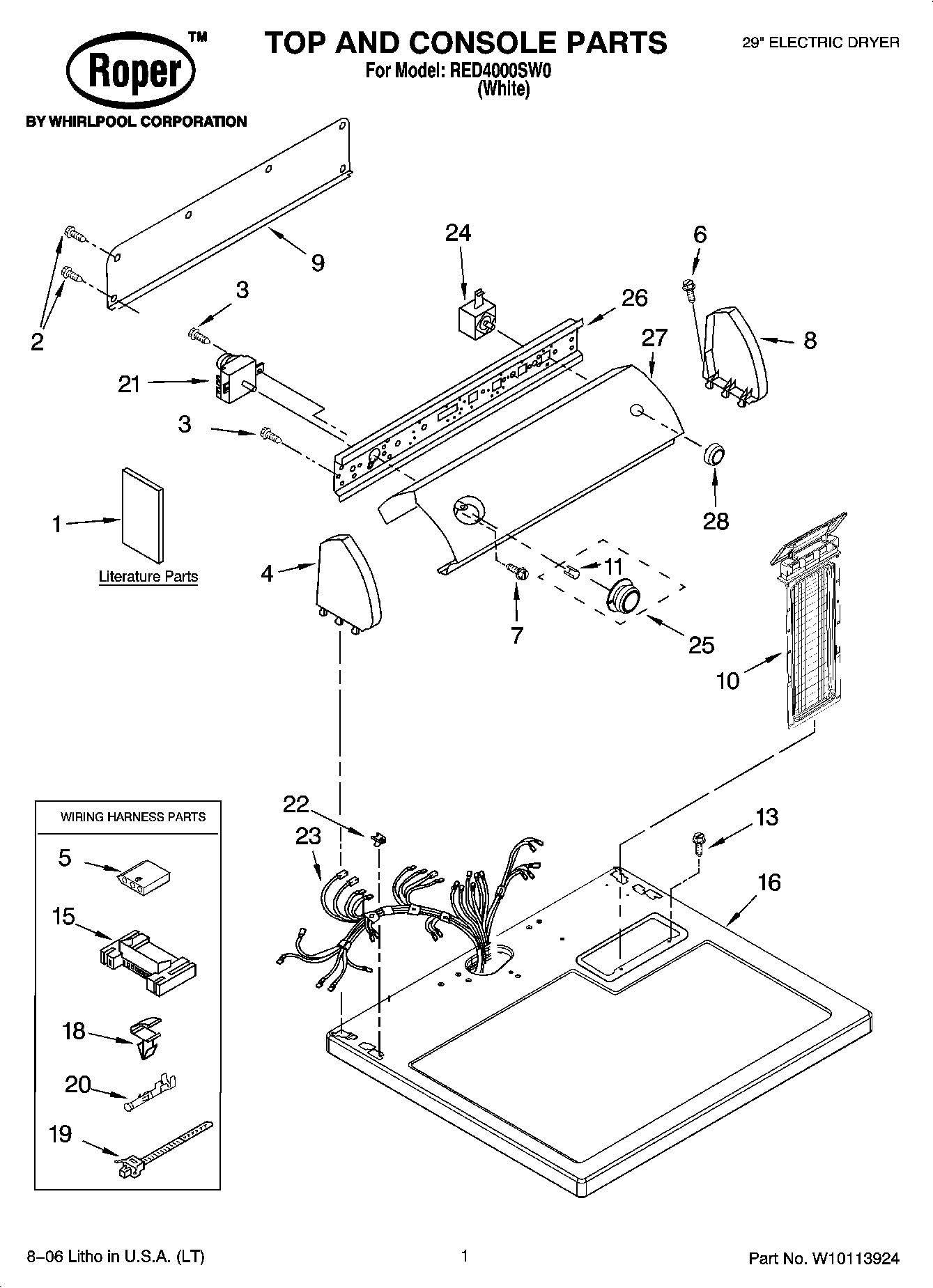

RED4000SW0 01 – TOP AND CONSOLE PARTS

RED4000SW0 01 – TOP AND CONSOLE PARTS

Written by

in

RED4000SW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Wiring Diagram
1WPL 677818
1Guide, Use & Care
1Sheet, Cycle Feature
1Instructions, Installation
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
2WP693995 Whirlpool Screw
3WP90767 Whirlpool Screw
4Cap, End (L.H.)
53936144 Whirlpool Connector
6WP388326 Whirlpool Screw
73400859 Whirlpool Screw
8Cap, End (R.H.)
9W10103406 Whirlpool Rear Panel
10W10874409 Whirlpool Lint Screen Filter
11WP688805 Whirlpool Spring Clip
13W11693756 Whirlpool Screw Assembly
153395683 Whirlpool Connector
16Top
18WP3394427 Whirlpool Clip
19Tie, Cable
20WP94614 Whirlpool Terminal
21WP8299780 Whirlpool Timer
22WP357213 Whirlpool Hinge Stopper
23Harness, Wiring
24WP3977456 Whirlpool Start Switch
25Timer Knob Assembly
26Bracket, Control
27Panel, Control
28Knob, Control
