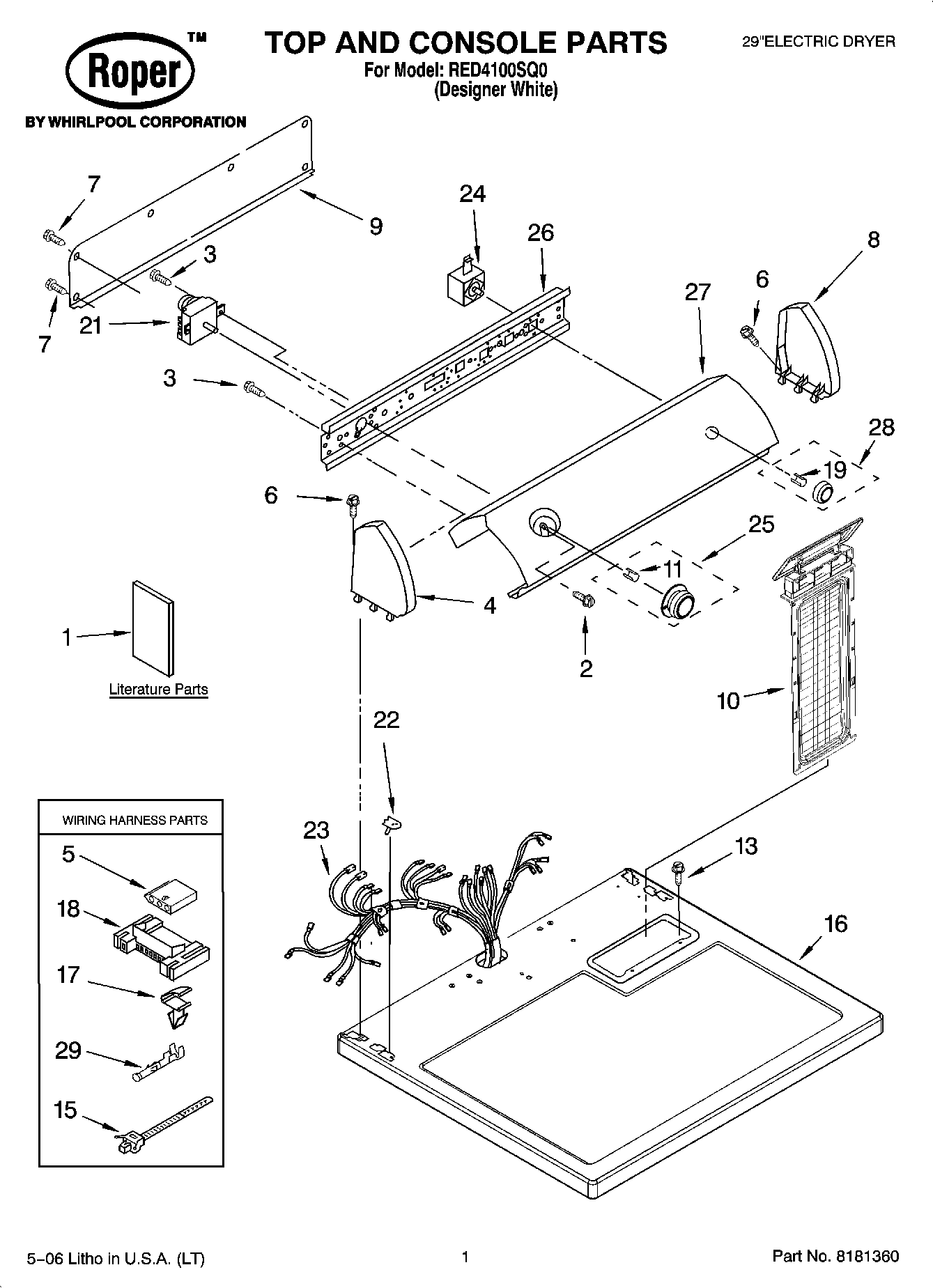

RED4100SQ0 01 – TOP AND CONSOLE PARTS

RED4100SQ0 01 – TOP AND CONSOLE PARTS

Written by

in

RED4100SQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Guide, Use & Care
1Instructions, Installation
1WPL 677818
1Sheet, Cycle Feature
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Wiring Diagram
23400859 Whirlpool Screw
3WP90767 Whirlpool Screw
53936144 Whirlpool Connector
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8279960 Whirlpool Endcap Assembly
9W10103406 Whirlpool Rear Panel
10W10874409 Whirlpool Lint Screen Filter
11WP688805 Whirlpool Spring Clip
13W11693756 Whirlpool Screw Assembly
15Tie, Cable
16Top
17WP3394427 Whirlpool Clip
183395683 Whirlpool Connector
19WP8536939 Whirlpool Spring Clip
21WP8299780 Whirlpool Timer
22WP357213 Whirlpool Hinge Stopper
23Harness, Wiring
24WP3977456 Whirlpool Start Switch
25WP8557455 Whirlpool Knob Timer
26Bracket, Control
27Panel, Control
28Knob, Push-To-Start
29WP94614 Whirlpool Terminal
