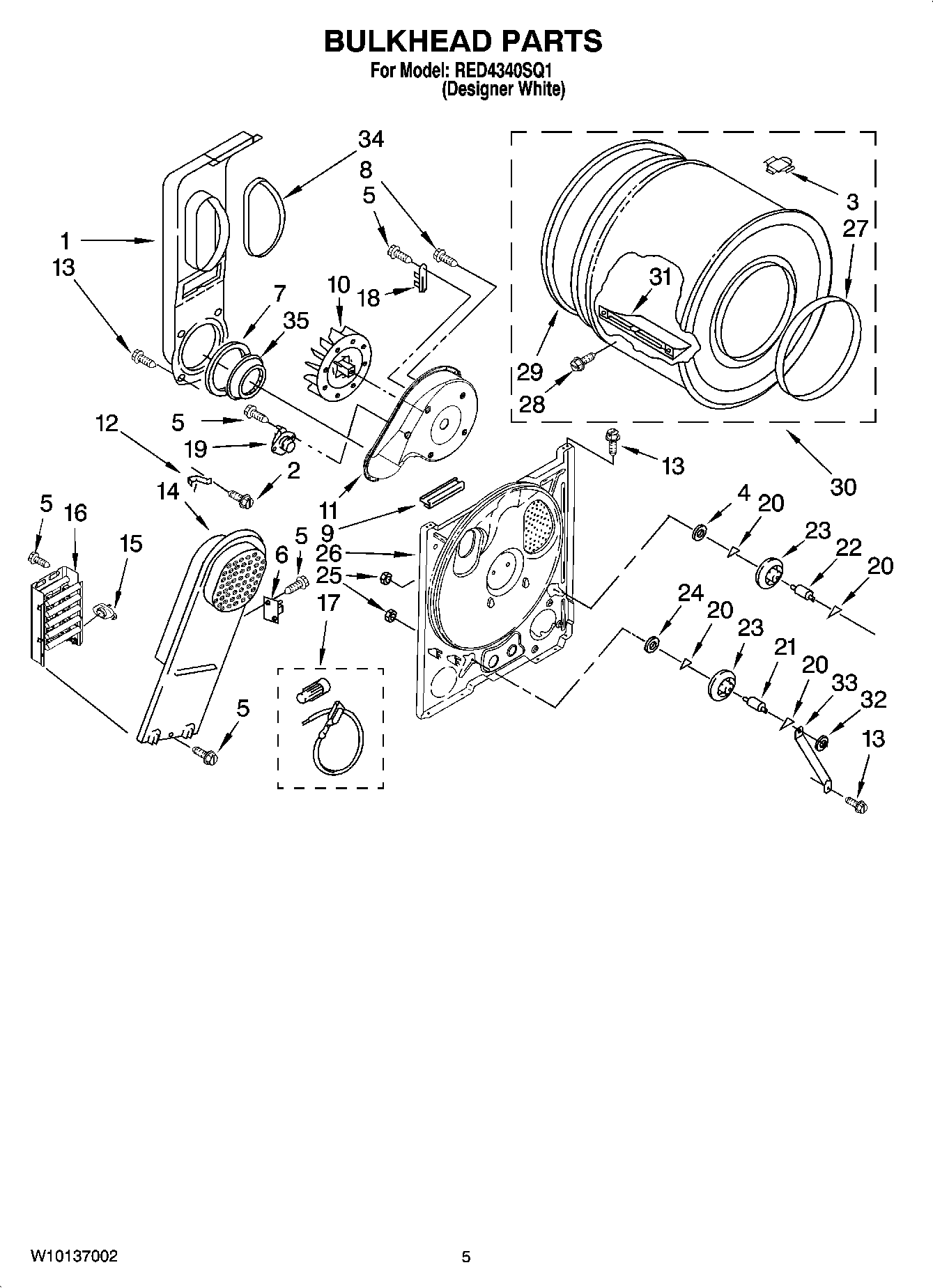

RED4340SQ1 03 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	ACCESSORY PARTS
	4392065 Whirlpool Dryer Maintenance Kit
	WP689790 Whirlpool Dryer Rack
	W11224254 Whirlpool Test Kit
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350938 Whirlpool Spray Gun
1	279505 Whirlpool Chute
2	WP489463 Whirlpool Refrigerator Screw
3	8066086 Whirlpool Plug
4	WP3388703 Whirlpool Washer
5	WP90767 Whirlpool Screw
6	279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
7	W11415783 Whirlpool Seal
8	WP488729 Whirlpool Refrigerator Door Screw
9	686889 Whirlpool Pad
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	279771 Whirlpool Clip
13	SCREW
14	WP8541818 Whirlpool Box
15	WP3977767 Whirlpoo Dryer High Limit Thermostat
16	279838 Whirlpool Dryer Heating Element 5400W
17	279457 Whirlpool Dryer Heating Element Wide Spade Connection
18	WP3392519 Whirlpool Dryer Thermal Fuse
19	WP3387134 Whirlpool Dryer Cycling Thermostat
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	SHAFT SUPPORT ROLLER DRYER
22	SHAFT SUPPORT ROLLER DRYER
23	349241T Whirlpool Dryer Drum Support Roller Kit
24	WP348197 Whirlpool Washer Assembly
25	WP3359452 Whirlpool Nut
26	BULKHEAD
27	WP3394509 Whirlpool Bearing Ring
28	WPW10109200 Whirlpool Screw
29	239087 Whirlpool Dryer Rear Drum Seal Green Stitches
30	697760 Whirlpool Drum Assembly Primary OS2
31	WP342847 Whirlpool Drum Baffle
32	Bracket, Support
33	WP90296 Whirlpool Clip
34	SEAL
35	W11233063 Whirlpool Shield Assembly
